I･pulse F1 Series F1-12 (H type) P 2 No. Code No. Parts Name Q'ty Parts No. KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4 LG4-M4A2A-010 RACKING LEVER ASSY 1 AS-A12-8117-C LG4-M4A2M-000 RATCHET AXIS ASSY 1 AS-A12-811…

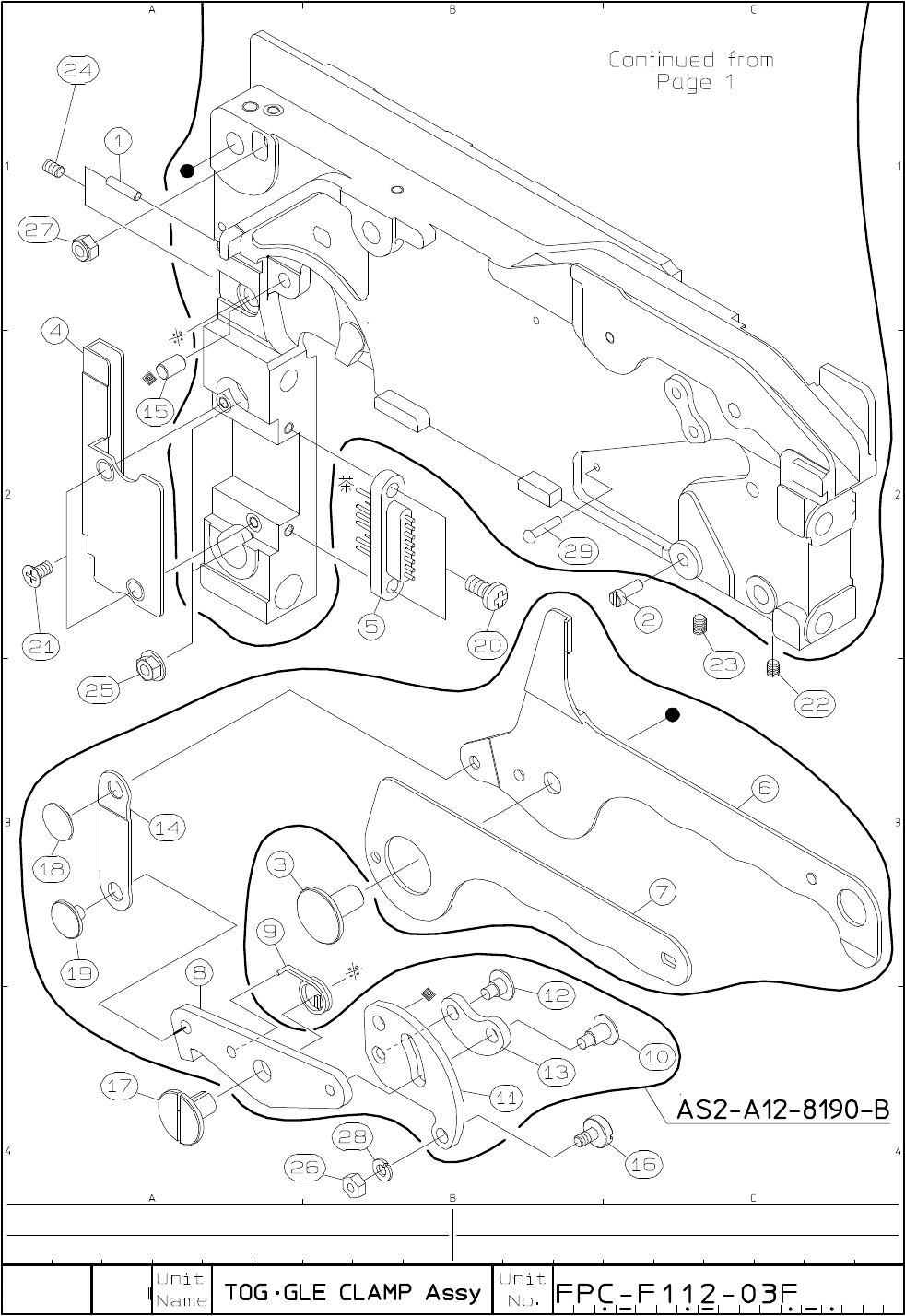

I･pulse F1 Series
F1-12 (H type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4
LG4-M4A2A-010 RACKING LEVER ASSY 1
AS-A12-8117-C
LG4-M4A2M-000 RATCHET AXIS ASSY
1
AS-A12-8112
1 K87-M111C-000 PLANE WASHER 1
CTF-A08- 16-B
2
LG4-M4A2E-000
RACKING LEVER 1
FTA-A12-8108
3 K87-M112F-000 SPRING HOOK PIN 1
CTF-A08- 211-B2
4 K87-M112M-100 FLANGE A 1
CTF-A08- 712-1
5 LG4-M1A2F-000 SCREW COIL SPRING 1
FTA-A08-8111-1
6 K87-M1121-000 METAL 1
FTA-A08-1103
KW1-M11BS-050
WASHER 1
FTA-A08-1103-005B
KJK-M119W-000 WASHER 1 FTA-A08-1464-005
8 K87-M1122-000 RIVET 3
FTA-A08-1103-1
9 KW1-M1123-000 SPROCKET 1
FTA-A08-1104-B
10 K87-M1124-000 RATCHET 1
FTA-A08-1107-P4
11 K87-M112G-100 RACKING POLE 1
FTA-A08-1111
12
LG4-M1A2D-000 SHUTTER DRIVE PIN
1
FTA-A08-8109
13
LG4-M1A2C-000 RACKING POLE AXIS
1
FTA-A08-8110
14
LG4-M4A2N-000 RATCHET AXIS
1
FTA-A12-8112
15
LG4-M4A2P-000 FLANGE B
1
FTA-A12-8112-2
16
LG4-M4A2B-010 MAIN ARM
1
FTA-A12-8117-C
17
LG4-M4A1R-010 SUB ARM
1
FTA-A12-8138-B
18 K87-M11BF-000
SCREW,FLAT HEAD
1
P2MK-4-IB
19
20
21
22
23
24
25
26
27
28
29
30
31
※1…F1-12-008628H～
7
※1
