I･pulse F1 Series
F1-16 (H type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M4AA1-002 CONTROL BOARD 1 FTA-A12-8151-FCB
2 LG4-M1A6R-010
CONTROL BOARD COLLAR 3 FTA-A08-8152-B
3 LG4-M1A6S-001 CONTROL BOARD COVER 1 FTA-A08-8153ｰB
4 K87-M111W-000 SCREW,PAN HEAD+ 3 3MC-5-P
5 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
6 LG4-M5AC1-0x0 SERIAL NO. STICKER 1 FTA-A16-8150-SNS
7 KW1-M11AA-000 ROHS STICKER 1
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
I･pulse F1 Series
F1-16 (H type)
P 8
No. Code No. Parts Name Q'ty Parts No.

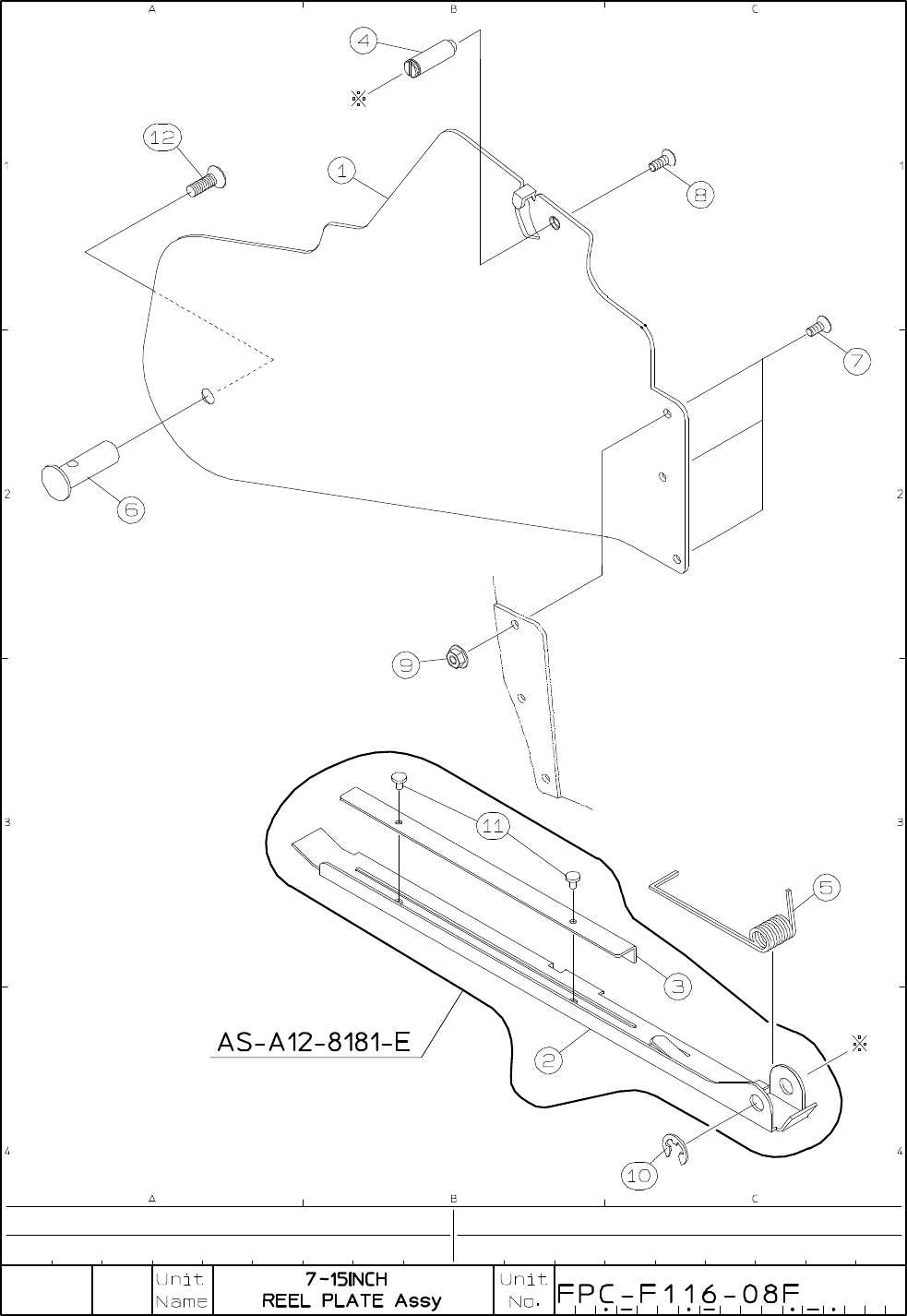

LG4-M4A9D-001 REEL TENSION ASSY 1 AS-A12-8181-E
1 LG4-M4A91-012 REEL PLATE 1 FTA-A12-8180-E
2 LG4-M4A9A-002 TENSION LEVER 1 FTA-A12-8181-E
3 LG4-M4A9C-001 GUIDE ARM 1 FTA-A12-8181-E1
LG4-M4A92-010 TENSION AXIS 1 FTA-A12-8182-B
LG4-M4A92-011 TENSION AXIS 1 FTA-A12-8182-C
LG4-M4A9B-001 COIL SPRING 1 FTA-A12-8183-C
LG4-M4A9B-002 COIL SPRING 1 FTA-A12-8183-D
6 LG4-M5A93-010 REEL AXIS 1 FTA-A12-8183-D
7 LG4-M4ADE-000 SCREW,FLAT HEAD+ 3 3MK-7-P
8 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
9 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
10 LG4-M4AD4-000 CIRCLIP E 1 E.50
11 LG4-M4AD5-000 FLAT RIVET 2 2×4-2.5-BS
12 LG4-M4ADH-000 SCREW,FLAT HEAD+ 1 4MK-12-P
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
※1…F1-16-6035H～
※1 4
※1 5
