I･pulse F1 Series F1-24 (D type) P 4 No. Code No. Parts Name Q'ty Parts No. ※1 LG4-M6A40-010 TAPE GUIDE UNIT 1 AS-A24-8119-D LG4-M6A4A-000 TAPE GUIDE ASSY 1 AS1-A24-8119-D LG4-M6A4B-000 SHUTTER PLATE ASSY 1 AS-A24-8…
6D-7
I･pulse F1 Series
F1-24 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
※1
LG4-M6A40-010

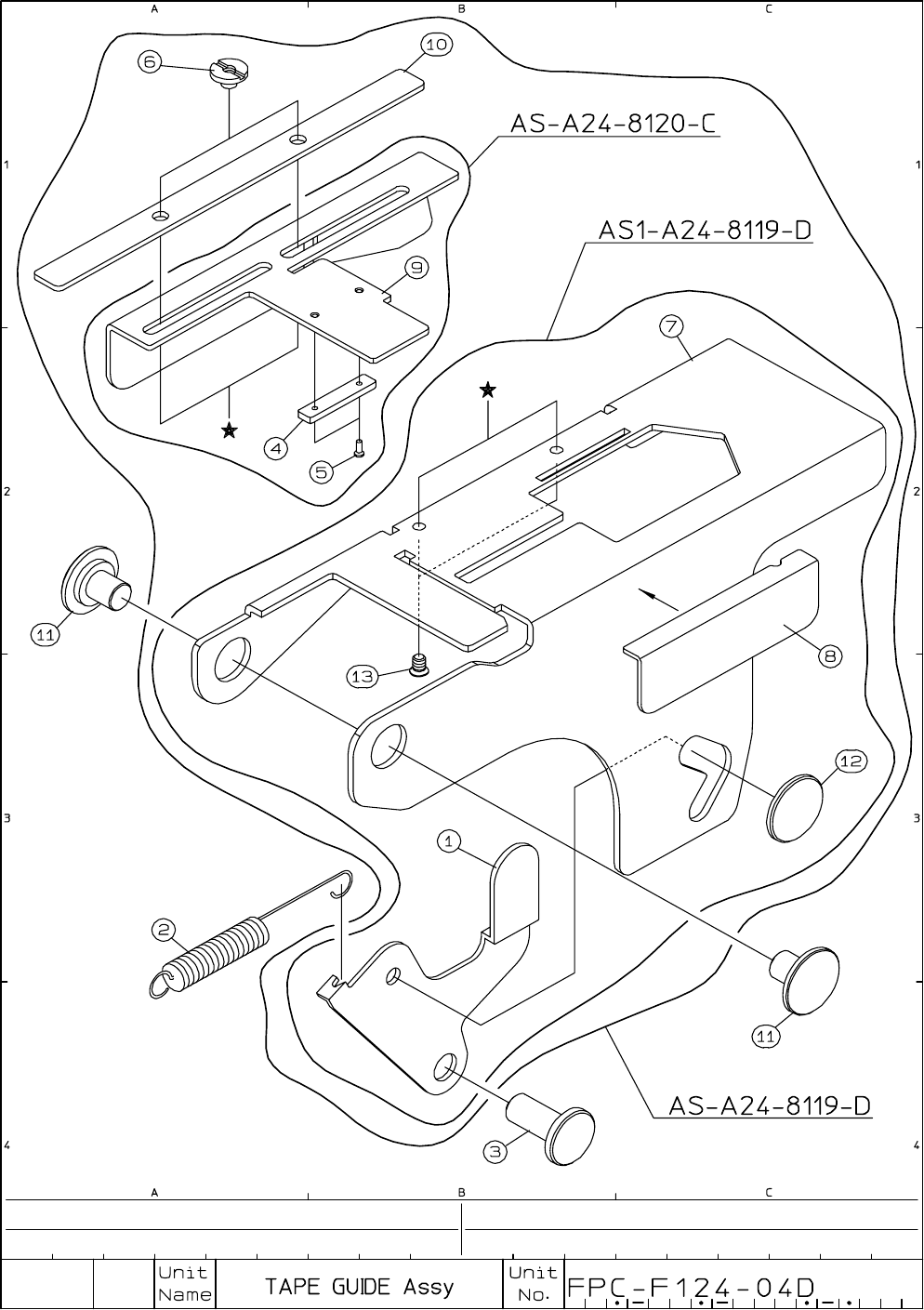

TAPE GUIDE UNIT 1 AS-A24-8119-D
LG4-M6A4A-000
TAPE GUIDE ASSY 1 AS1-A24-8119-D
LG4-M6A4B-000
SHUTTER PLATE ASSY 1
AS-A24-8120-C
1 LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
2
LG4-M6A48-000 T.G. PUSH SPRING
1
FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
4 KW1-M4547-000
SHUTTER PIECE
1
FTA-A24-1120-1
5
KW1-M4548-000
RIVET
2
FTA-A24-1120-2
6 KW1-M4544-010
SHUTTER GUIDE PIN
2
FTA-A24-1121-B
7 LG4-M6A41-010
TAPE GUIDE PLATE 1
FTA-A24-8119-D
8
LG4-M6A4F-000 SIDE COVER
1
FTA-A24-8125-1
9 LG4-M6A42-010
SHUTTER PLATE 1
FTA-A24-8120-C
10
LG4-M6A49-001 COVER PLATE
1
FTA-A24-8123-B
11 LG4-M6A4L-000 TAPE GUIDE AXIS PIN
2
FTA-A24-8124
12
LG4-M6A47-000 T.G.GUIDE PIN
1
FTA-A24-8125
13
K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
※1．．．F1-24-1711D ～
