I･pulse F1 Series
F1-84(C type)
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A40-011
TAPE GUIDE PLATE ASSY 1 AS1-A08-8119-C
1 LG4-M1A41-010
TAPE GUIDE PLATE 1 FTA-A08-8119-C
2 LG4-M1A42-001
SHUTTER PLATE 1 FTA-A08-8120-C
3 LG4-M1A45-000
SHUTTER GUIDE PIN 2 FTA-A08-8121
4
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M1A43-010
SHUTTER GUARD PLATE 1 FTA-A08-8123-C
6 LG4-M1A4L-000
T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000
LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-000
TAPE GUIDE PUSH SPRIN
G
1 FTA-A08-8127-500
10 LG4-M1A4K-000
T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
3-8
3-9
I･pulse F1 Series
F1-84(C type)

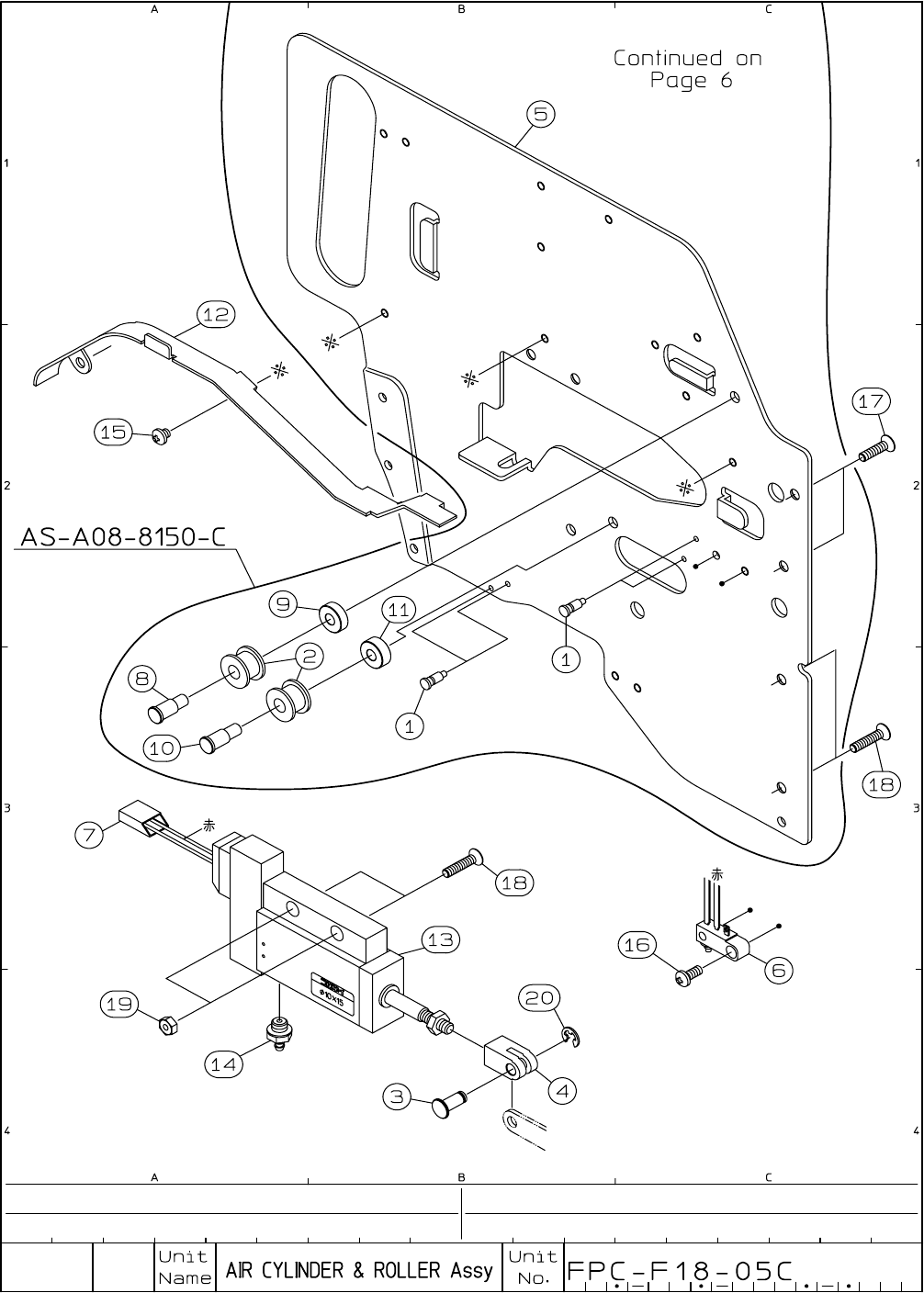

No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-011
BACK PLATE ASSY
1
AS -A08-8150-C
1 K87-M116A-100 SPRING HOOK PIN 4 CTF-M08- 166-B
2 KW1-M116U-000
ROLLER
2 CTF-M08- 342
3 LG4-M1A72-000
CONNECT PIN
1 FTA-A08-8146
4 LG4-M1A71-000
ROD CONNECT
1 FTA-A08-8147
5 LG4-M1A61-011
BACK PLATE
1 FTA-A08-8150-C
6 LG4-M1AA3-000
MICRO SWITCH ASSY
1 FTA-A08-8151-6
7 LG4-M1AA4-000
VALVE HARNESS ASSY
1 FTA-A08-8151-7
8 LG4-M1A6A-000
ROLLER AXIS T
1 FTA-A08-8173
9 LG4-M1A6C-000
LEAF T
1 FTA-A08-8173-1
10 LG4-M1A6B-000
ROLLER AXIS U
1 FTA-A08-8174
11 LG4-M1A6D-000
LEAF U
1 FTA-A08-8174-1
12 LG4-M1A6N-000
MIDDLE GUIDE PLATE C
1 FTA-A08-8176-C
13 LG4-M1AB1-000
VAL PACK CYLINDER
1 BDA10×15-327W
14
LG4-M1AB3-000
BARB CONNECTOR
1 BF3BU-136W
15 K87-M111N-000
SCREW , PAN HEAD ＋
3 3MC-3-P
16
LG4-M1ADC-000
SCREW , PAN HEAD ＋
1 3MC-7-P
17 K87-M11B4-100
SCREW , FLAT HEAD ＋
2 3MK-12-P
18
LG4-M1ADD-000
SCREW , FLAT HEAD ＋
4 3MK-14-P
19 K87-M21BN-000
SCREW , NUT
2 3MH
20
K87-M11D7-000
CIRCLIP E
1 E-32
21
22
23
24
25
26
27
28
29
30
31
32
33
