4C-15
I･pulse F1 Series
F1-12(C type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M4AA1-000
CONTROL BOARD 1
FTA-A12-8151-FCN1
2
LG4-M1A6R-000
CONTROL BOARD COLLAR 3
FTA-A08-8152
3
LG4-M1A6S-001 CONTROL BOARD COVER
1
FTA-A08-8153-B
4 K87-M55BJ-000
SCREW,TRUSS HEAD+
3
T3M-6-P
5
K87-M111N-000
SCREW,PAN HEAD+ 3
3MC-3-P
6
LG4-M4AC1-000
SERIAL NO. STICKER 1
FTA-A12-8150-SNS
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
33
4C-14
4C-15
I･pulse F1 Series
F1-12(C type)
P 8
No. Code No. Parts Name Q'ty Parts No.

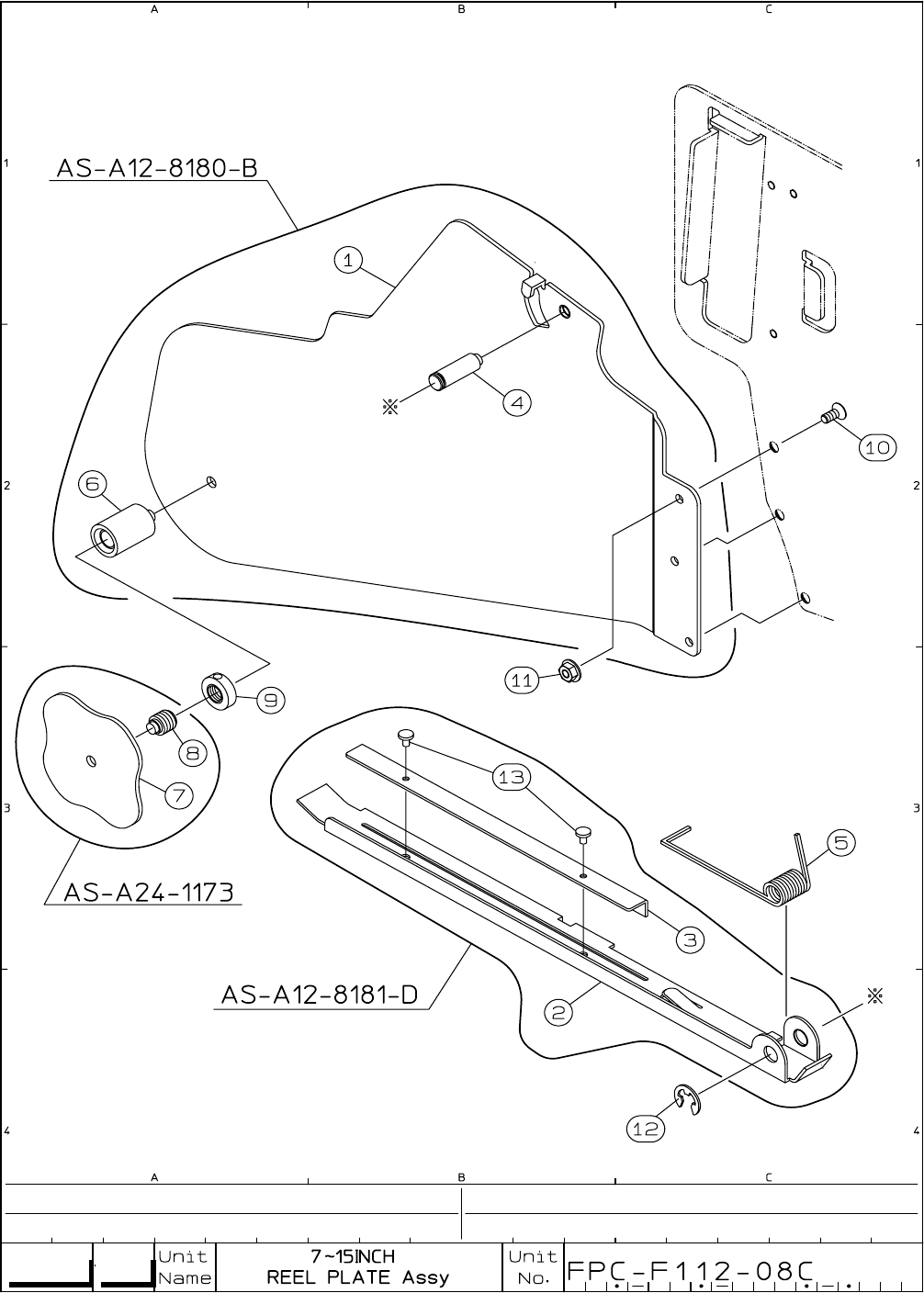

LG4-M4A90-001 REEL PLATE ASSY
1
AS-A12-8180-B
LG4-M4A9D-000
REEL TENSION LEVER ASSY
1
AS-A12-8181-D
KW1-M456N-000 REEL COVER ASSY
1
AS-A24-1173
1
LG4-M4A91-001 REEL PLATE
1
FTA-A12-8180-B
2
LG4-M4A9A-001 TENSION LEVER
1
FTA-A12-8181-D
3
LG4-M4A9C-000 GUIDE ARM
1 FTA-A12-8181-D1
4
LG4-M4A92-000 TENSION AXIS
1
FTA-A12-8182
5
LG4-M4A9B-000 COIL SPRING
1 FTA-A12-8183-B
6
LG4-M4A93-000 REEL AXIS
1 FTA-A12-8185-B
7 KW1-M456P-000
COVER
1 FTA-A24-1173
8 KW1-M456R-000
SCREW
1 FTA-A24-1173-1B
9 KW1-M456S-000
SCREW SPACER
1
FTA-A24-1187
10
LG4-M4ADE-000
SCREW,FLAT HEAD+ 3 3MK-7-P
11 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
12
LG4-M4AD4-000 CIRCLIP E
1 E-50
13
LG4-M4AD5-000 FLAT RIVET
2
φ2X2.5
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
4C-16
