F1FeederPartsList.pdf - 第542页
5D-15
I･pulse F1 Series
F1-16 (D type)
P 7
No. Code No. Parts Name Q'ty Parts No.
※1 1 LG4-M4AA1-001 CONTROL BOARD 1
FTA-A12-8151-FCN1
2 LG4-M1A6R-010 CONTROL BOARD COLLAR 3 FTA-A08-8152-B
3 LG4-M1A6S-001 CONTROL BOARD COVER 1 FTA-A08-8153ｰB
4 K87-M111W-000 SCREW,PAN HEAD+ 3 3MC-5-P
5 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
6 LG4-M5AC1-000 SERIAL NO. STICKER 1 FTA-A16-8150-SNS
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1…F1-16-2065D～
5D-15
I･pulse F1 Series
F1-16(D type)
P 8
No. Code No. Parts Name Q'ty Parts No.

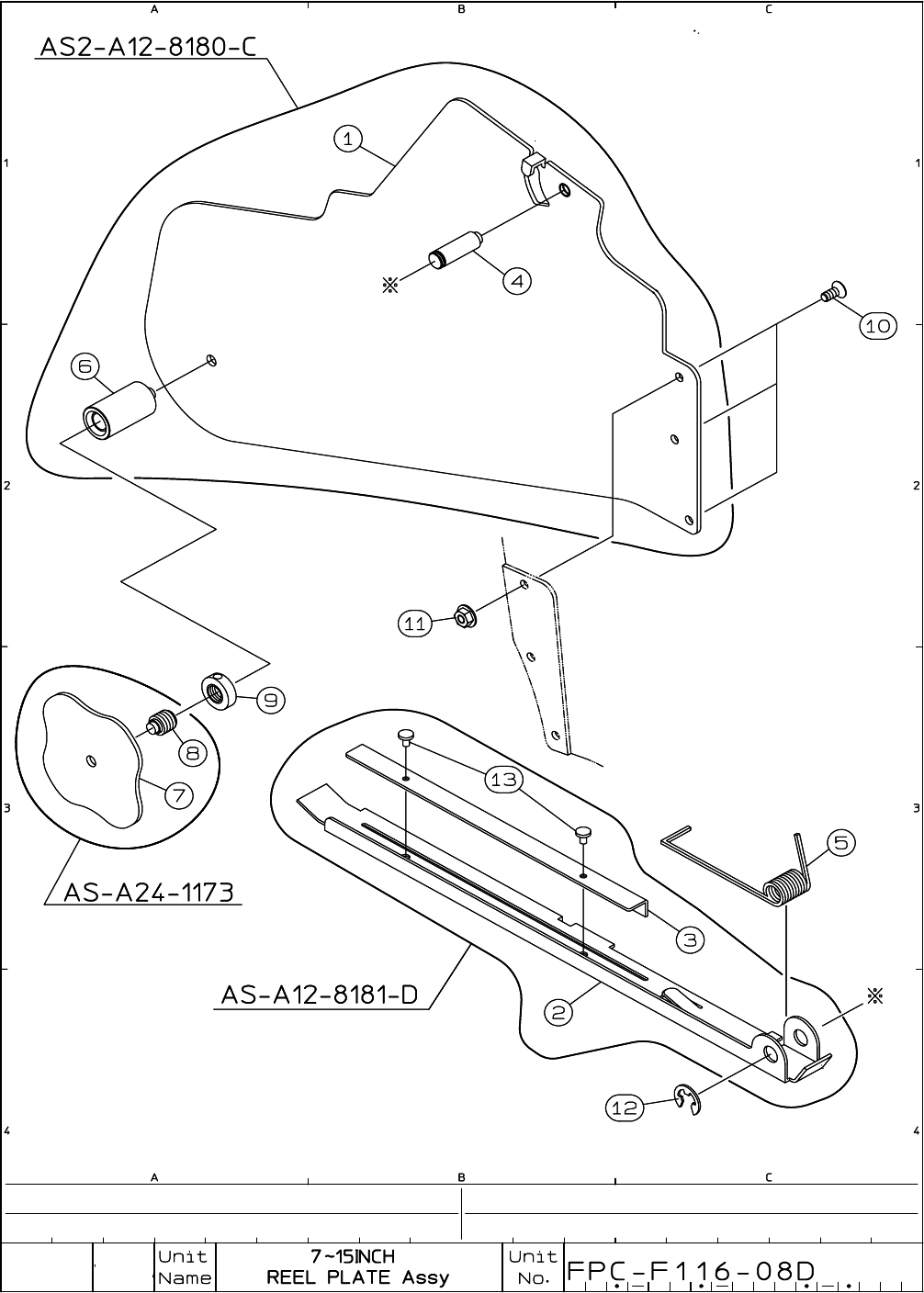

LG4-M5A90-010 REEL PLATE ASSY
1
AS2-A12-8180-C
LG4-M4A9D-000 TENSION LEVER ASSY
1
AS-A12-8181-D
KW1-M456N-000 REEL COVER ASSY
1
AS-A24-1173
1
LG4-M4A91-010 REEL PLATE
1
FTA-A12-8180-C
2
LG4-M4A9A-001 TENSION LEVER
1 FTA-A12-8181-D
3
LG4-M4A9C-000 GUIDE ARM
1 FTA-A12-8181-D1
4
LG4-M4A92-000 TENSION AXIS
1
FTA-A12-8182
5
LG4-M4A9B-000 COIL SPRING
1 FTA-A12-8183-B
6
LG4-M5A93-000 REEL AXIS
1 FTA-A16-8185-B
7 KW1-M456P-000
COVER
1 FTA-A24-1173
8 KW1-M456R-000
SCREW
1 FTA-A24-1173-1B
9 KW1-M456S-000
SCREW SPACER
1
FTA-A24-1187
10
LG4-M4ADE-000
SCREW,FLAT HEAD+ 3 3MK-7-P
11 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
12
LG4-M4AD4-000 CIRCLIP E
1 E-50
13
LG4-M4AD5-000 FLAT RIVET
2
φ2X2.5
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
5D-16
