I･pulse F1, F2 Series F1-16, F2-16 【OPTION】 No. Code No. Parts Name Q'ty Parts No. SL99M0040-150 TAPE GUIDE KIT 16 1 AS-A16-8119-03 1 LG4-M5AH2-000 T APE GUIDE PLATE 1 FTA-A16-8119-03 2 LG4-M5A42-000 SHUTTER PLATE 1…

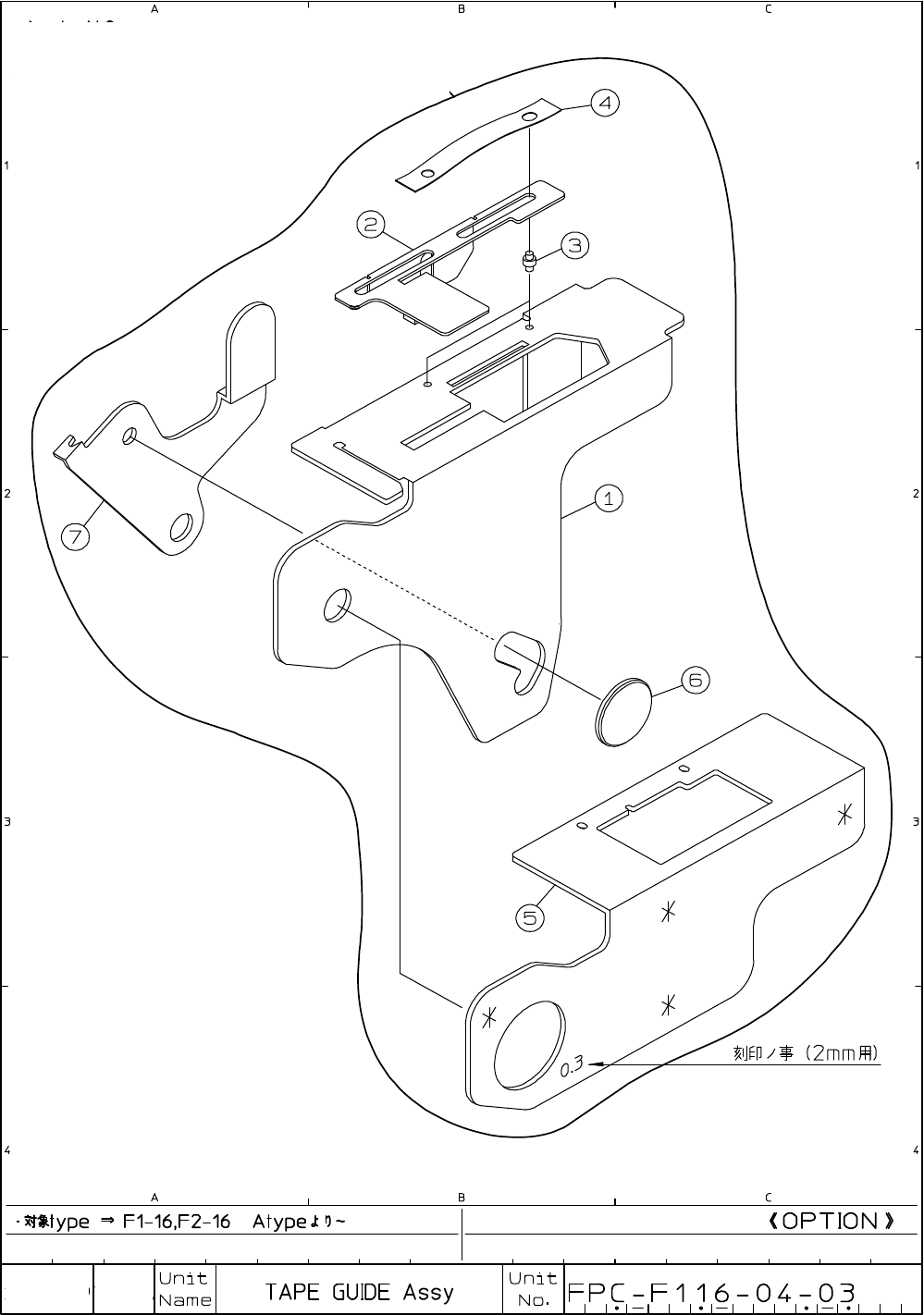

SL99M0040-150
TAPE GUIDE KIT 16
I･pulse F1, F2 Series
F1-16, F2-16
【OPTION】
No. Code No. Parts Name Q'ty Parts No.
SL99M0040-150 TAPE GUIDE KIT 16 1 AS-A16-8119-03
1 LG4-M5AH2-000 TAPE GUIDE PLATE 1 FTA-A16-8119-03
2 LG4-M5A42-000 SHUTTER PLATE 1 FTA-A16-8120-C
3 LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4 LG4-M1A44-000 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M5A43-000 SHUTTER GUARD PLATE 1 FTA-A16-8123-B
6 LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
7 LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
