I･pulse F1 Series
F１-16 （H type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M5A60-130 BACK PLATE ASSY 1 AS1-A12-8250-E
LG4-M5A68-000 TENSION LEVER ASSY 1 AS2-A08-8168
1 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146
2 LG4-M1A71-000 ROD CONNECT 1 FTA-A08-8147
3 LG4-M1AA3-000 MICRO SWITCH ASSY 1 FTA-A08-8151-6
4 LG4-M1AA4-000 VALVE HARNESS ASSY 1 FTA-A08-8151-7
5 LG4-M1A6K-000 TENSION LEVER 1 FTA-A08-8168
6 LG4-M1A6L-000 COIL SPRING 1 FTA-A08-8168-SP
7 LG4-M1A6E-000 METAL 1 FTA-A08-8169
8 LG4-M4A6E-010 ADJUST PLATE STUD 2 FTA-A12-8151-1B
9 LG4-M4A6F-000 SET PIN 1 FTA-A12-8152
10 LG4-M4A74-000 PLANE WASHER 2 FTA-A12-8154-B
11 LG4-M4A6J-000 SPRING HOOK PIN 2 FTA-A12-8156
12 LG4-M4A61-130 BACK PLATE 1 FTA-A12-8250-E
13 LG4-M5A73-001 ADJUST PLATE 1 FTA-A16-8151-D
14 LG4-M5A6G-010 TAPER ROLLER 1 FTA-A16-8172-B
SL96M5A6H-000
LG4-M5A6H-010
16 LG4-M5A69-000 ROLLER AXIS 1 FTA-A16-8172-3
17 LG4-M5A6A-000 ROLLER AXIS T 1 FTA-A16-8173-B
18 LG4-M5A6C-000 LEAF T 1 FTA-A16-8173-1
19 LG4-M5A6N-010 MIDDLE GUIDE PLATE C 1 FTA-A16-8176-D
20 LG4-M1AB1-010 VAL PACK CYLINDER 1 BDA10×15-380W
21 LG4-M1AB3-000 BARB CONNECTOR 1 BF3BU-136W
22 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
23 LG4-M1ADC-000 SCREW,PAN HEAD+ 1 3MC-7-P
24 LG4-M4ADE-000 SCREW,FLAT HEAD+ 1 3MK-7-P
25 LG4-M1ADD-000 SCREW,FLAT HEAD+ 1 3MK-14-P
26 LG4-M5ADD-000 SCREW,FLAT HEAD+ 3 3MK-20-P
27 K87-MB01H-000 BOLT,HEX SOCKET HEAD 2 3MX-8-P
28 K87-M23B6-000 SCREW,FLAT HEAD+ 1 4MK-8-P
29 K87-M23BB-000 BOLT,HEX SOCKET HEAD 2 4MX-10-P
30 K87-M21BM-000 SPRING LOCK WASHER 2 3MU-P
31 LG4-M4AD3-000 SPRING LOCK WASHER 2 4MU-P
32 K87-M11D7-000 CIRCLIP E 1 E.32
33
FTA-A16-8172-1Z15 ROLLER 1 2

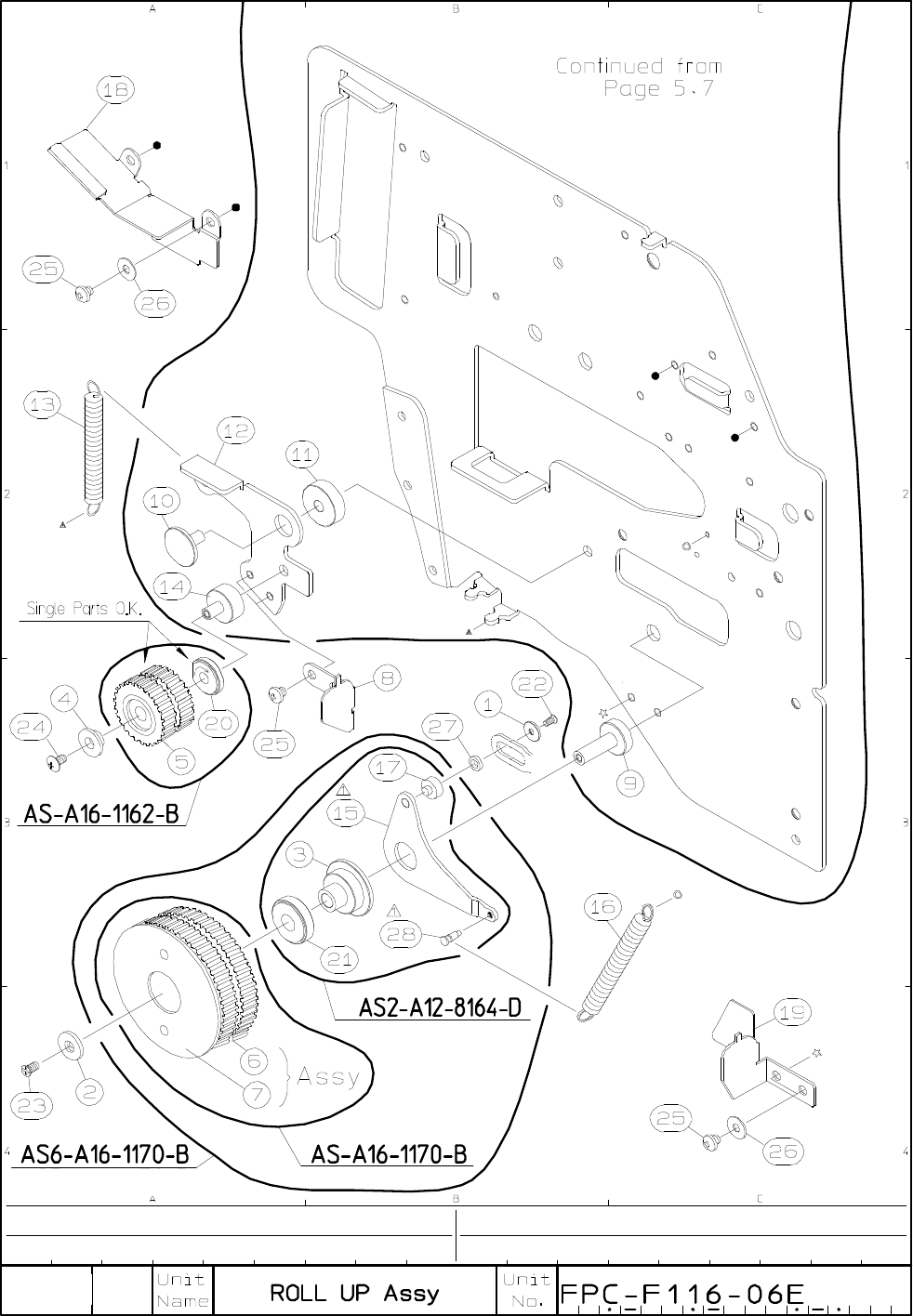

I･pulse F1 Series
F１-16 （H type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M5A81-010
D．ROLLER ALL ASSY 1 AS5-A16-1170-B
LG4-M5A81-011
D. ROLLER ALL ASSY 1 AS6-A16-1170-B
LG4-M5A82-010 INDEKING LEVER ASSY
1 AS4-A12-8164-C
LG4-M5A82-011 INDEKING LEVER ASSY
1 AS2-A12-8164-D
KW1-M329F-000
DRIVE ROLLER ASSY
1 AS-A16-1170-B
KW1-M329L-000
IDLER ROLLER ASSY
1 AS-A16-1162-B
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
1 CTF-M08- 76-B
3
LG4-M5A85-000 LEVER METAL
1 FTA-A16-8158
4 KW1-M229R-000
COLLAR
1 FTA-A12-1161
5 KW1-M329M-000
IDLE ROLLER
1 FTA-A16-1162-B
6 KW1-M329G-000
DRIVE ROLLER
1 FTA-A16-1170-B
7 KW1-M119H-000
COVER PLATE
1 FTA-A08-1171-B
8 KW1-M32A3-001
LOWER GUIDE PLATE,L
1 FTA-A16-1179ｰB
9
LG4-M5A62-000 METAL SHAFT
1 FTA-A16-8155
10
LG4-M4A63-000 LEVER AXIS PIN
1 FTA-A12-8159
11
LG4-M4A64-000 COLLAR
1 FTA-A12-8159-1
12
LG4-M4A65-000 TENSION LEVER
1 FTA-A12-8160
13
LG4-M4A8B-000
TENSION LEVER RE.SP.
1 FTA-A12-8160-700
14 KW1-M326G-000
ROLLER AXIS
1 FTA-A16-1163
LG4-M4A83-001 INDEKING LEVER
1 FTA-A12-8164-C
LG4-M4A83-002 INDEKING LEVER
1 FTA-A12-8164-D
LG4-M4A8A-010
INDEKING LEVER RETURN SPRING
1 FTA-A12-8164-310B
LG4-M4A8A-011
INDEKING LEVER RE.SP.
1 FTA-A12-8164-310C
17
LG4-M4A84-010 ARM STUD
1 FTA-A12-8166-B
18 LG4-M5A6M-010 MIDDLE GUIDE PLATE T
1 FTA-A16-8176-1C
19 LG4-M5A6P-011 LOWER GUIDE PLATE,R
1 FTA-A16-8178-D
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000
SCREW,FLAT HEAD+
1 P2MK-4-IB
23 K87-M11BB-000
SCREW,FLAT HEAD+
1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
27 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
※1 28 K87-M116A-100 SPRING HOOK PIN 1 CTF-M08- 166-B
※1…F1-16-6035H～
※1
※1
※1
※1 16
15
