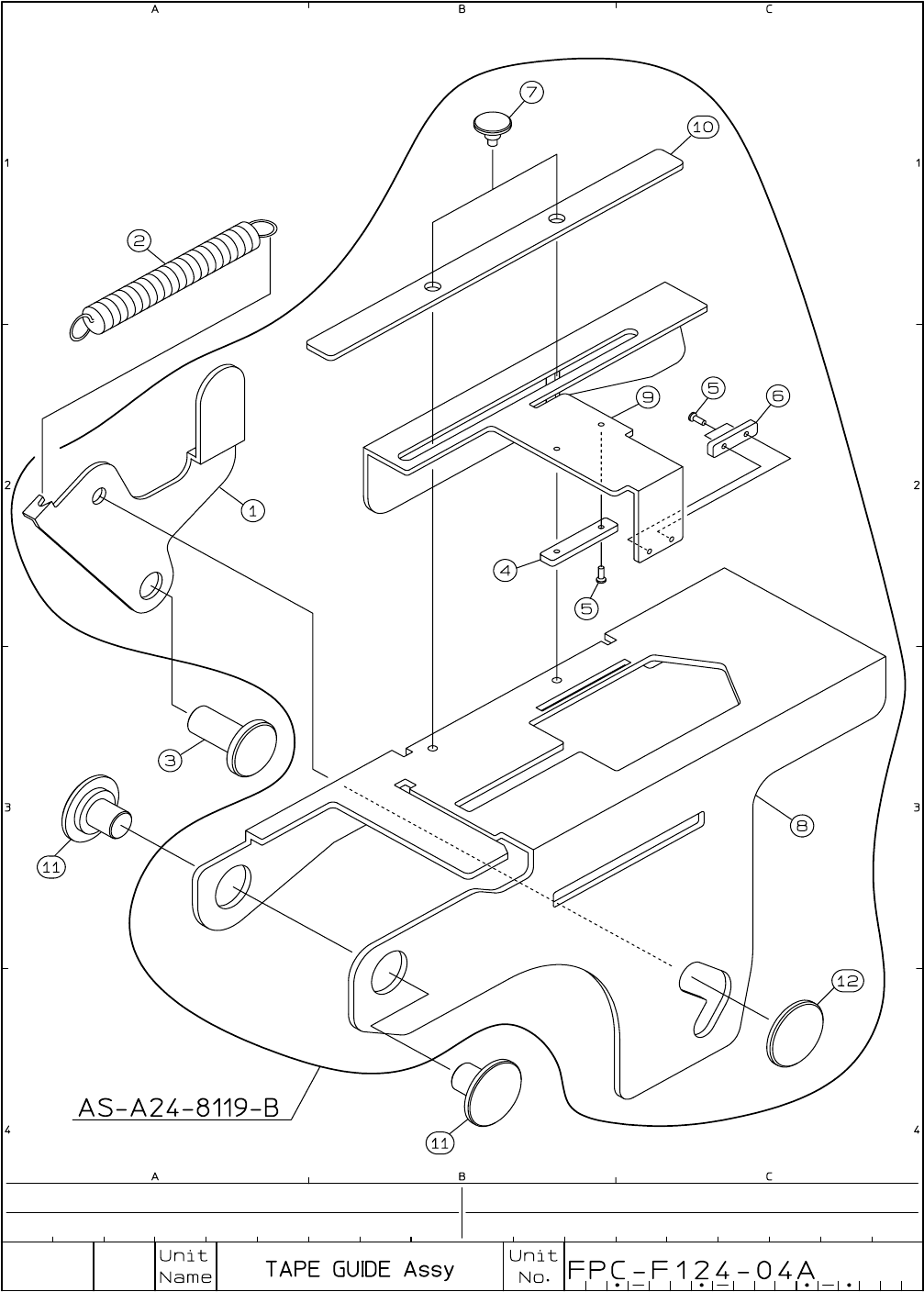

I･pulse F1 Series F1 - 24 (A type) 24mm No. Code No. Parts Name Q'ty Parts No. LG4-M6A40-000 TAPE GUIDE PLATE ASSY 1 AS-A24-8119-B 1 LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B 2 LG4-M1A48-000 TAPE GUIDE PUSH SPRIN G …
6-7
I･pulse F1 Series
F1 - 24 (A type) 24mm
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A40-000
TAPE GUIDE PLATE ASSY 1 AS-A24-8119-B
1
LG4-M1A46-000
LOCK LEVER 1
FTA-A08-8127-B
2
LG4-M1A48-000
TAPE GUIDE PUSH SPRIN
G
1
FTA-A08-8127-500
3
LG4-M1A4K-000
T.G.A. GUIDE PIN 1
FTA-A08-8129
4 KW1-M4547-000 SHUTTER PIECE 1
FTA-A24-1120-1
5 KW1-M4548-000 RIVET 4
FTA-A24-1120-2
6 KW1-M4549-000 SHUTTER GUIDE 1
FTA-A24-1120-3
7 KW1-M4544-000 SHUTTER GUIDE PIN 2
FTA-A24-1122-B
8
LG4-M6A41-000
TAPE GUIDE PLATE 1
FTA-A24-8119-B
9
LG4-M6A42-000
SHUTTER PLATE 1
FTA-A24-8120
10
LG4-M6A49-000
COVER PLATE 1
FTA-A24-8123
11
LG4-M6A4L-000
TAPE GUIDE AXIS PIN 2
FTA-A24-8124
12
LG4-M6A47-000
T.G. GUIDE PIN 1
FTA-A24-8125
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
