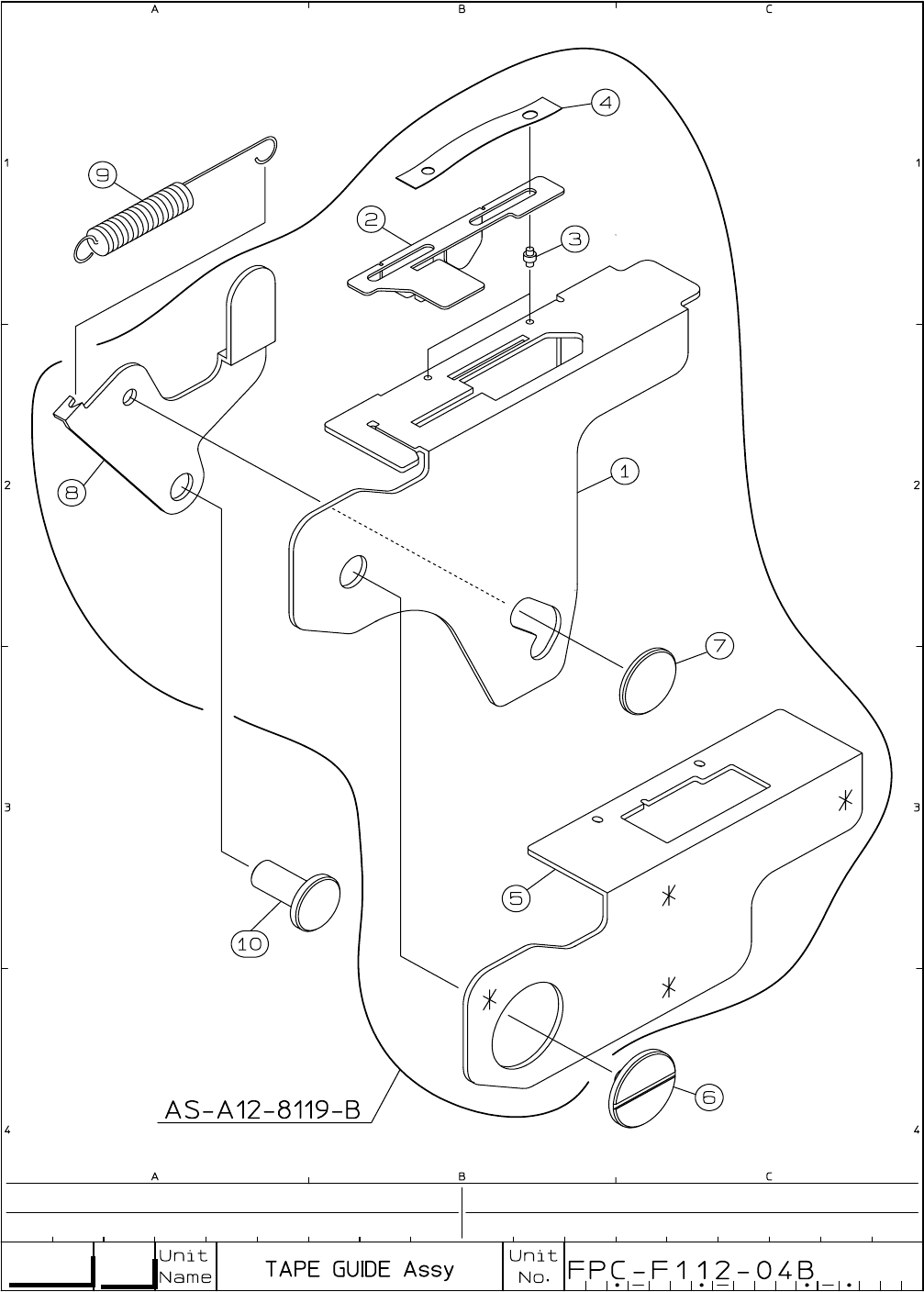

I･pulse F1 Series F1-12(D type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M4A40 -000 T.G. PLATE ASSY 1 AS-A12-8119-B 1 LG4-M4A41-000 TAPE GUIDE PLATE 1 FTA-A12-8119-B 2 LG4-M4A42-000 SHUTTER PLATE 1 FTA-A12-812…
4D-7
I･pulse F1 Series
F1-12(D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A40 -000
T.G. PLATE ASSY 1 AS-A12-8119-B
1
LG4-M4A41-000
TAPE GUIDE PLATE 1
FTA-A12-8119-B
2
LG4-M4A42-000
SHUTTER PLATE 1
FTA-A12-8120-C
3
LG4-M1A45-000 SHUTTER GUIDE PIN
2
FTA-A08-8121
4
LG4-M1A44-000 SHUTTER PUSH SPRING
1
FTA-A08-8122-B
5
LG4-M4A43-000 SHUTTER GUARD PLATE
1
FTA-A12-8123-B
6
LG4-M1A4L-000 T.G. GUIDE SCREW
1
FTA-A08-8124
7
LG4-M1A47-000 T.G. GUIDE PIN
1
FTA-A08-8125
8
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
9
LG4-M1A48-001
T. G. PUSH SPRING 1
FTA-A08-8127-50
10
LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
