5C-9
I･pulse　 F1　Series
F1-16(C type)
P 5

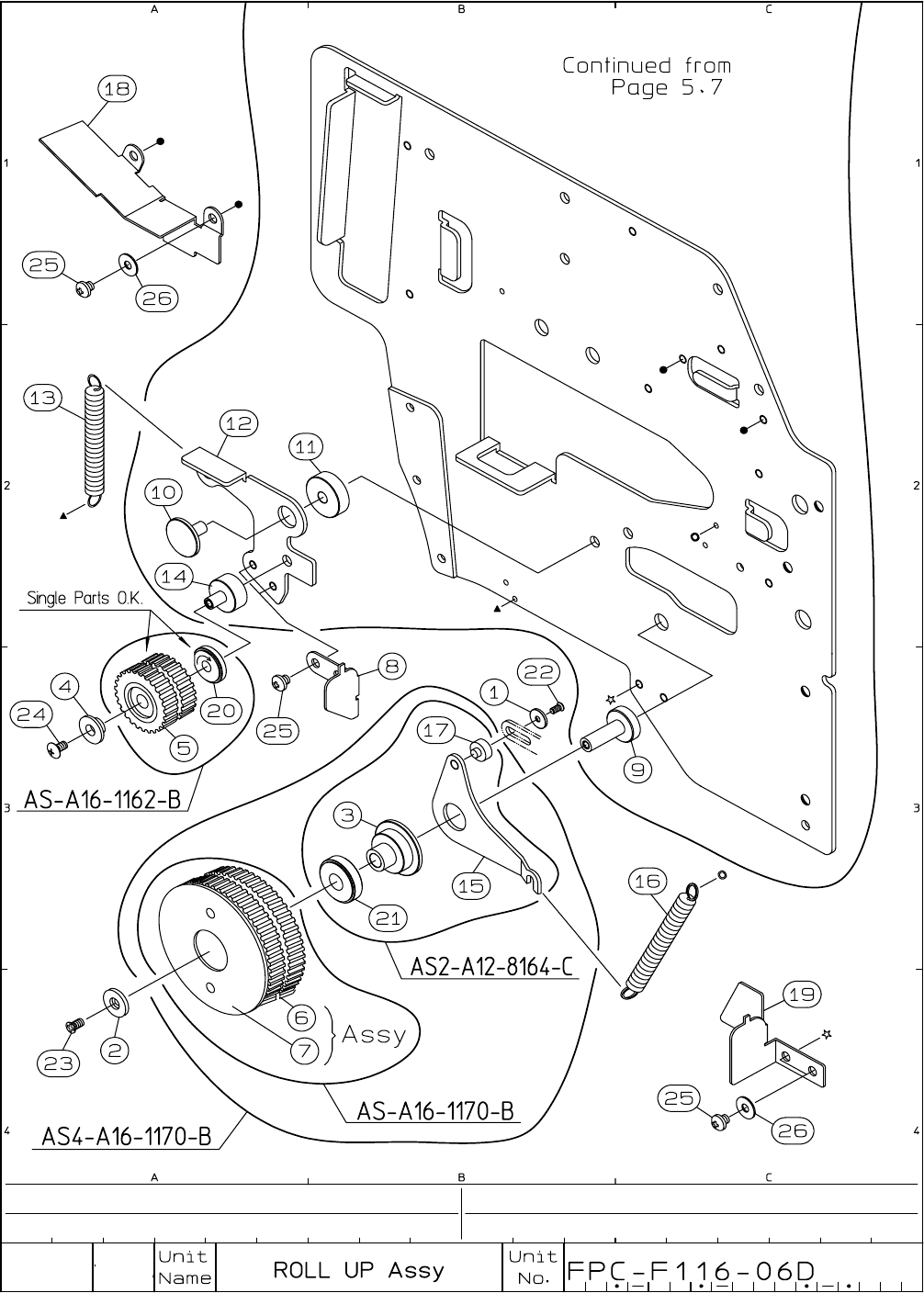

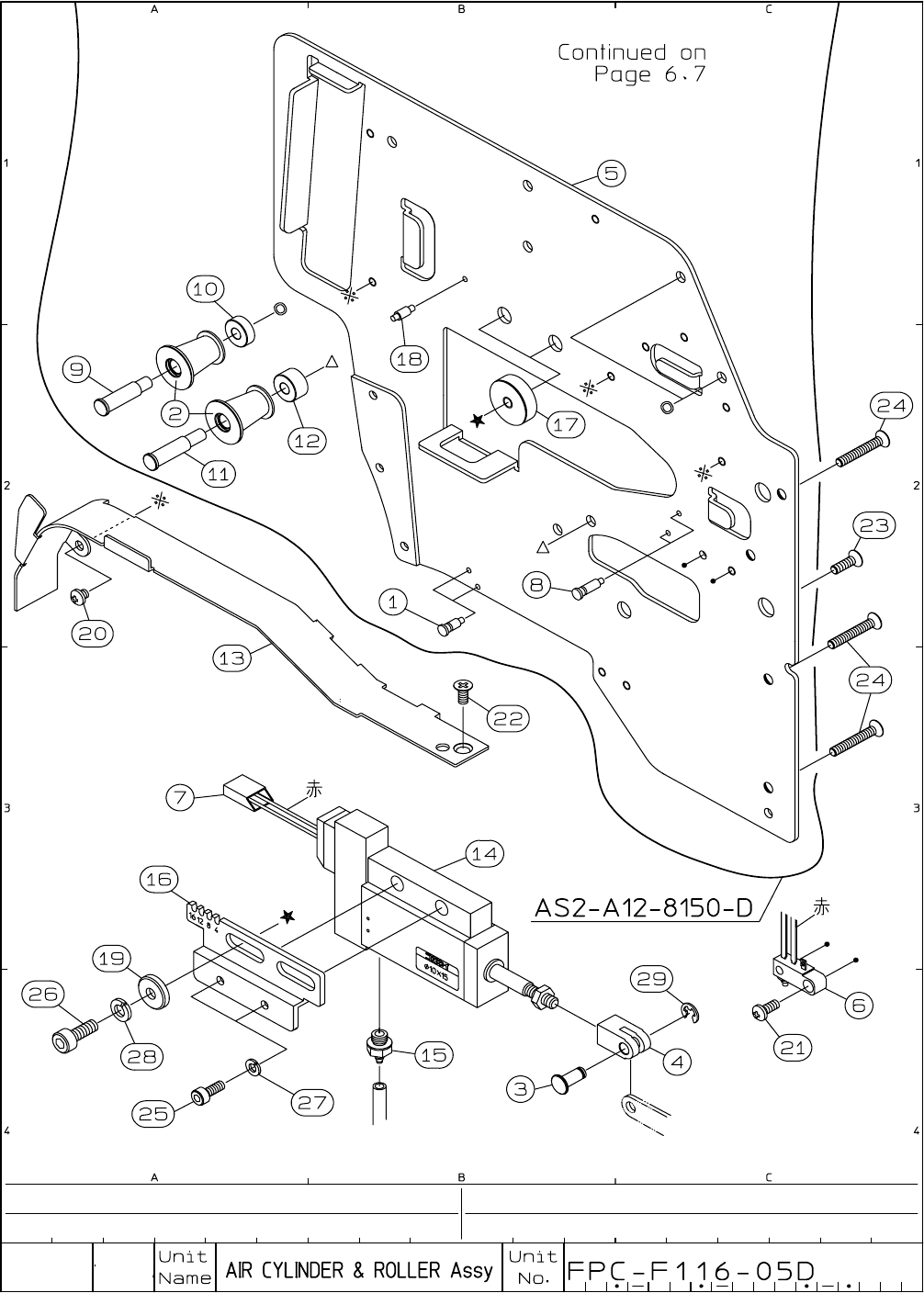

No. Code No. Parts Name Q'ty Parts No.
LG4-M5A60-020 BACK PLATE ASSY
1
AS2-A12-8150-D
1 K87-M116A-100 SPRING HOOK PIN 2 CTF-M08- 166-B
2
LG4-M5A6G-000 TAPER ROLLER
3 FTA-A16-8172
3
LG4-M1A72-000 CONNECT PIN
1 FTA-A08-8146
4
LG4-M1A71-000 ROD CONNECT
1 FTA-A08-8147
5
LG4-M4A61-020 BACK PLATE
1 FTA-A12-8150-D
6
LG4-M1AA3-000 MICRO SWITCH ASSY
1 FTA-A08-8151-6
7
LG4-M1AA4-000 VALVE HARNESS ASSY
1 FTA-A08-8151-7
8
LG4-M4A6J-000
SPRING HOOK PIN 2 FTA-A12-8156
9
LG4-M5A6A-000 ROLLER AXIS T
2 FTA-A16-8173-B
10
LG4-M5A6C-000 LEAF T
2 FTA-A16-8173-1
11
LG4-M5A6B-000 ROLLER AXIS U
1 FTA-A16-8174-B
12
LG4-M5A6D-000 LEAF U
1 FTA-A16-8174-1
13
LG4-M5A6N-000 MIDDLE GUIDE PLATE C
1 FTA-A16-8176-C
14
LG4-M4AB1-000 VAL PACK CYLINDER
1 BDA10×15-343W
15 LG4-M1AB3-000
BARB CONNECTOR
1 BF3BU-136W
16
LG4-M5A73-001 ADJUST PLATE
1 FTA-A16-8151-D
17
LG4-M4A6E-010
ADJUST PLATE STUD 2 FTA-A12-8151-1B
18
LG4-M4A6F-000
SET PIN 1 FTA-A12-8152
19 LG4-M4A74-000
PLANE WASHER
2
FTA-A12-8154-B
20
K87-M111N-000 SCREW,PAN HEAD+
3 3MC-3-P
21
LG4-M1ADC-000 SCREW,PAN HEAD+
1 3MC-7-P
22
LG4-M4ADE-000 SCREW,FLAT HEAD+
1
3MK-7-P
23 KW1-M45BG-000
SCREW,FLAT HEAD+
1 3MK-10-P
24
LG4-M5ADD-000 SCREW,FLAT HEAD+
3 3MK-20-P
25 K87-MB01H-000 BOLT,HEX SOCKET HEAD 2 3MX-8-P
26 K87-M23BB-000 BOLT,HEX SOCKET HEAD 2 4MX-10-P
27 K87-M21BM-000 SPRING LOCK WASHER 2
3MU
28
LG4-M4AD3-000
SPRING LOCK WASHER 2
4MU
29 K87-M11D7-000
CIRCLIP E
1 E-32
30
31
32
33
