1D-3
I･pulse F1 Series
F1-82-0603(D type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A10-020
BODY ASSY 1 AS -A08-8101-C
LG4-M1A1M-001
MAIN LEVER ASSY 1 AS1-A08-8131
1 K87-M111D-000
PUSH PIN 1 CTF-M08- 25
2 K87-M111G-100
PUSH PIN 1 CTF-M08- 325
3 K87-M111H-200
BACK STOPPER 1 FTA-A08-1114
4 KW1-M114E-000
ARM AXIS PIN 1 FTA-A08-1134
5 LG4-M1A11-020
BODY 1 FTA-A08-8101-C
6 LG4-M1A12-000
MAIN GUIDE PIN 1 FTA-A08-8102
7
LG4-M1A13-000
LOCATE PIN R 1 FTA-A08-8103-B
8 LG4-M1A14-001
LOCATE PIN F 1 FTA-A08-8104-C
9 LG4-M1A15-000
PLUG HOLDER GUIDE 1 FTA-A08-8105
10 LG4-M1A16-000
PLUG HOLDER 1 FTA-A08-8106
11 LG4-M1A17-000
STOPPER PIN 1 FTA-A08-8113
12 LG4-M1A19-001
BACK STOPPER RE. SP. 1 FTA-A12-6132-510
13 LG4-M1A18-000
BACK STOPPER AXIS 1 FTA-A08-8115
14 LG4-M1A1K-000
LEVER AXIS PIN 1 FTA-A08-8130-B
15 LG4-M1A1N-000
MAIN LEVER 1 FTA-A08-8131
16 LG4-M1A1P-000
ARM 1 FTA-A08-8135
17 LG4-M1A1R-010
SUB ARM 1 FTA-A08-8138-B
18 LG4-M1A1S-010
SUB ARM GUIDE PIN 1 FTA-A08-8139-B
19 K87-M1186-000
BARB CONNECTOR 1 BF3BU
20 LG4-M1AB2-000
PLUG 1 MA-MC05PM
21 LG4-M1ABA-010
AIR HOSE 1 U3B-157
22 K87-M23B3-000
SCREW,SET 3 3MY-5
23 K87-M111X-000
SCREW,SET 1 3MY-4-F
24 K87-M111R-000
SCREW,SET 5 3MY-5-F
25 LG4-M1AD1-000
CIRCULAR RIVET 1 φ2-8
26 LG4-M1AD2-000
CIRCLIP C 1 STW-7
27
28
29
30
31
32

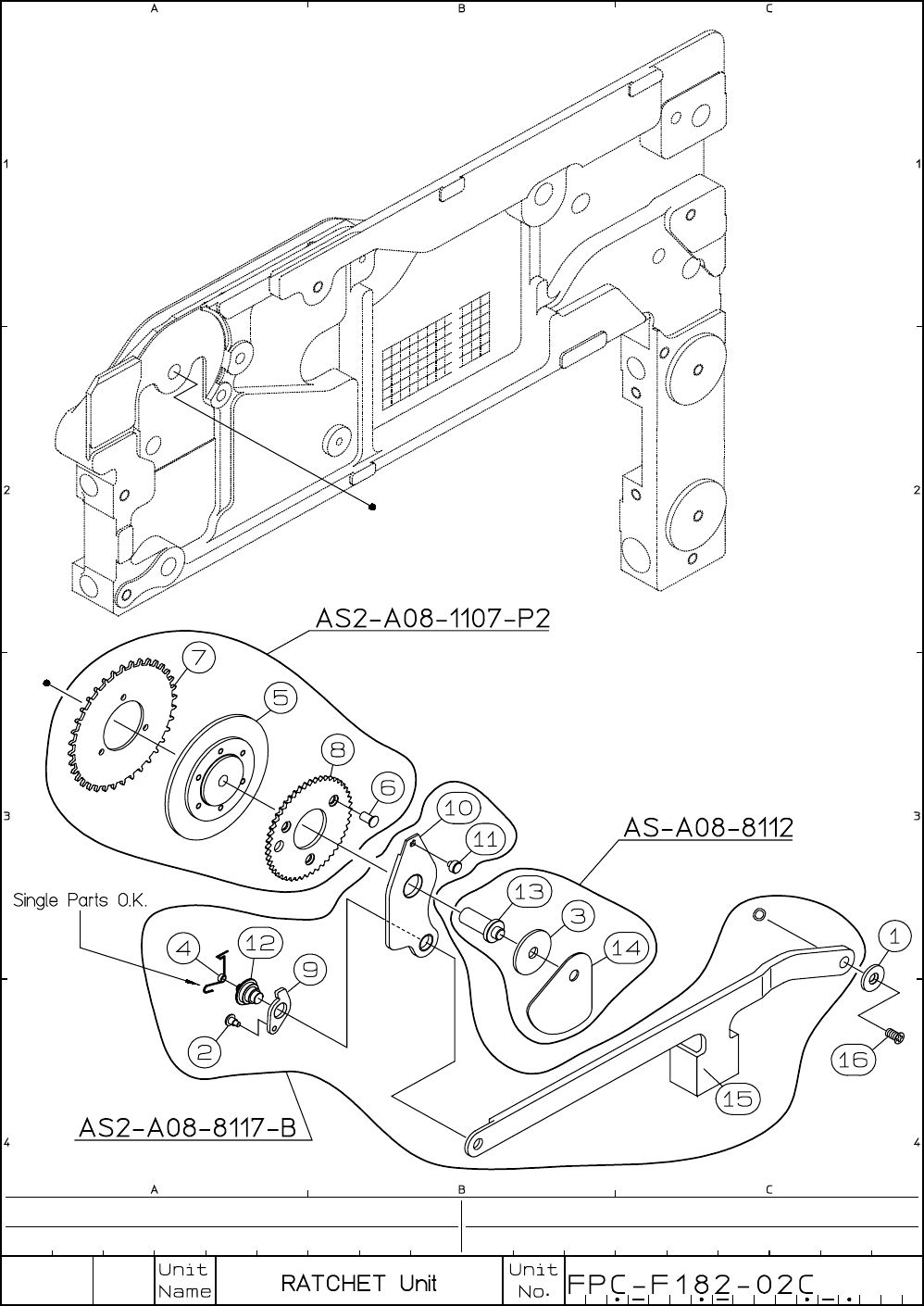

1D-2
1D-3
I･pulse F1 Series
F1-82-0603(D type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1320-000 SPROCKET ASSY 1 AS2-A08-1107-P2
LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B
LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8112
1
K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2
K87-M112F-000 SPRING HOOK PIN 1 CTF-A08- 211-B2
3
K87-M112M-100 FLANGE A 1 CTF-A08- 712-1
4 LG4-M1A2F-000 SCREW COIL SPRING 1
FTA-A08-8111-1
5
K87-M1121-000 METAL 1 FTA-A08-1103
6
K87-M1122-000 RIVET 3 FTA-A08-1103-1
7
KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B
8
K87-M1324-000 RATCHET 1 FTA-A08-1107-P2
9
K87-M112G-100 RACKING POLE 1 FTA-A08-1111
10
LG4-M1A2E-000 RACKING LEVER 1 FTA-A08-8108
11
LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109
12
LG4-M1A2C-000 RACKING POLE AXIS 1 FTA-A08-8110
13
LG4-M1A2N-000 RATCHET AXIS 1 FTA-A08-8112
14
LG4-M1A2P-000 FLANGE B 1 FTA-A08-8112-2
15
LG4-M1A2B-000 MAIN ARM 1 FTA-A08-8117-B
16
K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
