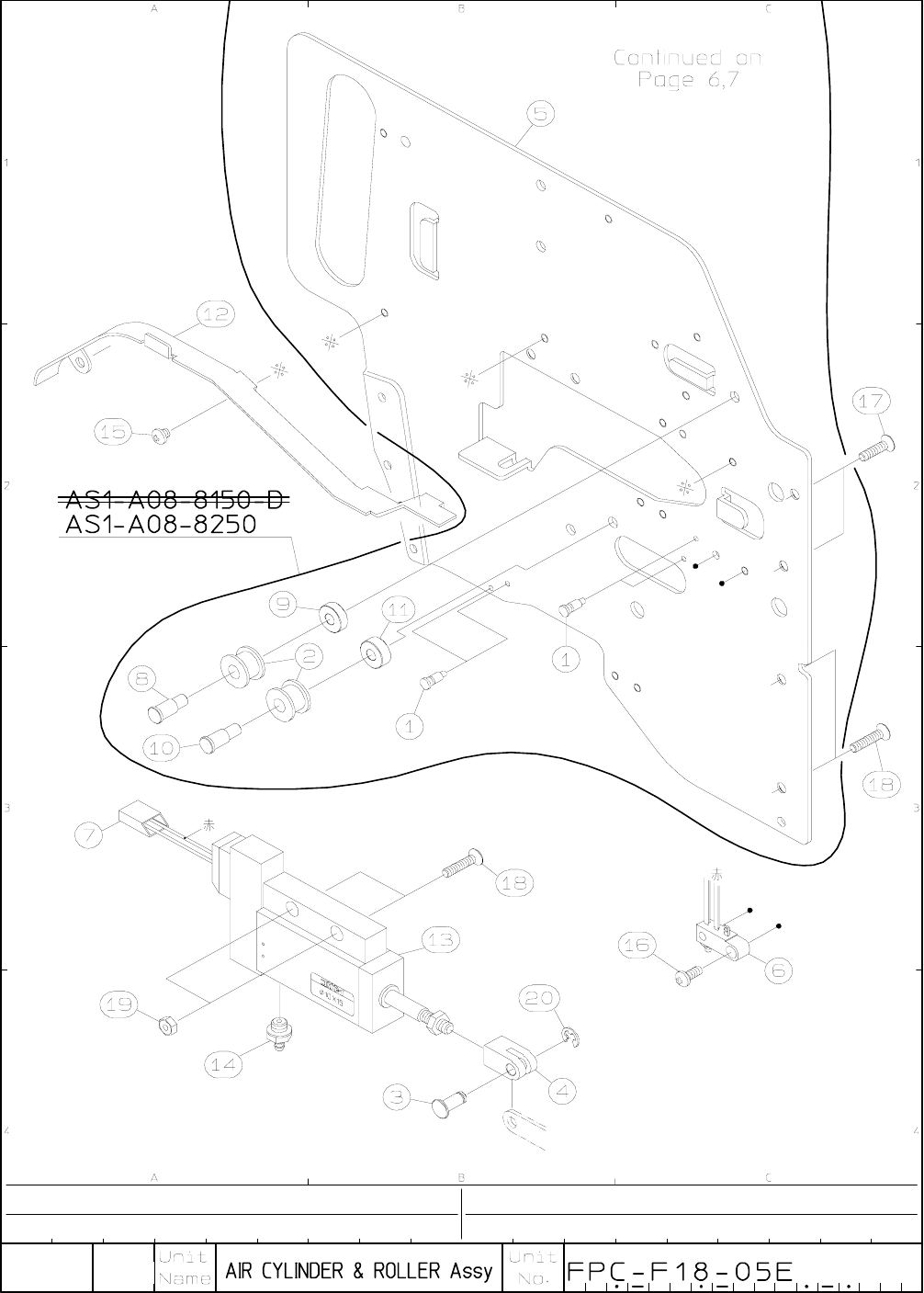

I･pulse F1 Series F1-82-0603 (E type) P 5 No. Code No. Parts Name Q'ty Parts No. LG4-M1A60-022 BACK PLATE ASSY 1 AS1-A08-8150- D LG4-M1A60-110 BACK PLATE ASSY 1 AS1-A08-8250 1 K87-M116A-100 SPRING HOOK PIN 4 CTF-M08…

100%1 / 1226
1E-9
I･pulse　 F1　Series
F1-82-0603 (E type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A60-022
BACK PLATE ASSY
1
AS1-A08-8150-D
LG4-M1A60-110
BACK PLATE ASSY
1
AS1-A08-8250
1 K87-M116A-100 SPRING HOOK PIN 4 CTF-M08- 166-B
2 KW1-M116U-000
ROLLER
2 CTF-M08- 342
3 LG4-M1A72-000
CONNECT PIN
1 FTA-A08-8146
4 LG4-M1A71-000
ROD CONNECT
1 FTA-A08-8147
LG4-M1A61-012
BACK PLATE
1 FTA-A08-8150-D
LG4-M1A61-100
BACK PLATE
1 FTA-A08-8250
6 LG4-M1AA3-000
MICRO SWITCH ASSY
1 FTA-A08-8151-6
7 LG4-M1AA4-000
VALVE HARNESS ASSY
1 FTA-A08-8151-7
8 LG4-M1A6A-000
ROLLER AXIS T
1 FTA-A08-8173
9 LG4-M1A6C-000
LEAF T
1 FTA-A08-8173-1
10 LG4-M1A6B-000
ROLLER AXIS U
1 FTA-A08-8174
11 LG4-M1A6D-000
LEAF U
1 FTA-A08-8174-1
12 LG4-M1A6N-000
MIDDLE GUIDE PLATE C
1 FTA-A08-8176-C
13
LG4-M1AB1-001
VAL PACK CYLINDER
1 BDA10×15-350W
14
LG4-M1AB3-000
BARB CONNECTOR　
1 BF3BU-136W
15 K87-M111N-000
SCREW,PAN HEAD+
3 3MC-3-P
16 LG4-M1ADC-000
SCREW,PAN HEAD+
1 3MC-7-P
17 K87-M11B4-100
SCREW,FLAT HEAD+
2 3MK-12-P
18 LG4-M1ADD-000
SCREW,FLAT HEAD+
4 3MK-14-P
19 K87-M21BN-000
SCREW,NUT
2 3MH-P
20 K87-M11D7-000
CIRCLIP E
1 E.32
21
22
23
24
25
26
27
28
29
30
*1 F1-823-001631E～
