I･pulse F1 Series F1-12(D type) P 6 No. Code No. Parts Name Q'ty Parts No. LG4-M4A81-001 D．ROLLER ALL ASSY 1 AS4-A12-1170-B LG4-M4A82-001 INDEKING LEVER ASSY 1 AS-A12-8164-C KW1-M229F-000 DRIVE ROLLER ASSY 1 AS-A12-…
4D-11

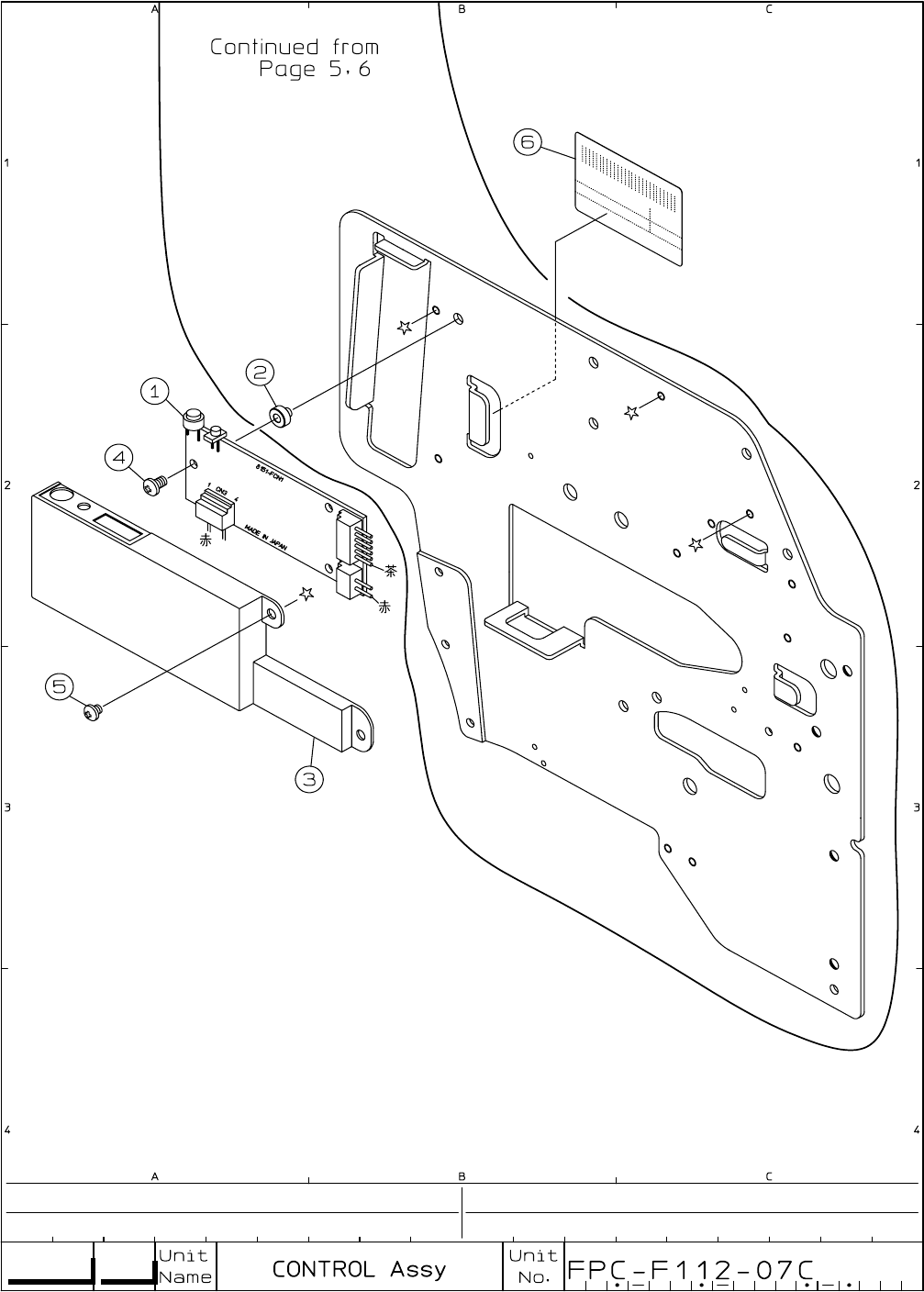

I･pulse F1 Series
F1-12(D type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A81-001
D．ROLLER ALL ASSY 1 AS4-A12-1170-B
LG4-M4A82-001 INDEKING LEVER ASSY
1 AS-A12-8164-C
KW1-M229F-000
DRIVE ROLLER ASSY
1 AS-A12-1170-B
KW1-M229L-000
IDLER ROLLER ASSY
1 AS-A12-1162-B
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
1 CTF-M08- 76-B
3 KW1-M229D-000
LEVER METAL
1 FTA-A12-1168
4 KW1-M229R-000
COLLAR
1 FTA-A12-1161
5 KW1-M229M-000
IDLE ROLLER
1 FTA-A12-1162-B
6 KW1-M229G-000
DRIVE ROLLER
1 FTA-A12-1170-B
7 KW1-M119H-000
COVER PLATE
1 FTA-A08-1171-B
8 KW1-M22A3-001
LOWER GUIDE PLATE , L
1 FTA-A12-1179-B
9
LG4-M4A62-000 METAL SHAFT
1 FTA-A12-8155
10
LG4-M4A63-000 LEVER AXIS PIN
1 FTA-A12-8159
11
LG4-M4A64-000 COLLAR
1 FTA-A12-8159-1
12
LG4-M4A65-000 TENSION LEVER
1 FTA-A12-8160
13
LG4-M4A8B-000
TENSION LEV. RE. SP. 1 FTA-A12-8160-700
14 KW1-M226G-000
ROLLER AXIS
1 FTA-A12-1163
15
LG4-M4A83-001 INDEKING LEVER
1 FTA-A12-8164-C
16
LG4-M4A8A-010
INDEKING LEVER RE.SP 1 FTA-A12-8164-310B
17
LG4-M4A84-000 ARM STUD
1 FTA-A12-8166
18
LG4-M4A6M-000 MIDDLE GUIDE PLATE T
1 FTA-A12-8176-1B
19
LG4-M4A6P-010 LOWER GUIDE PLATE,R
1 FTA-A12-8178-C
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000
SCREW,FLAT,HEAD
1 P2MK-4-IB
23 K87-M11BB-000
SCREW,FLAT HEAD
1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3MV (3V-0.5-8-P)
27
28
29
30
4D-12
4D-13
