I･pulse F1 Series F1-16 (E type) P 7 No. Code No. Parts Name Q'ty Parts No. LG4-M4AA1-001 CONTROL BOARD 1 FTA-A12-8151-FCN1 LG4-M4AA1-002 CONTROL BOARD 1 FTA-A12-8151-FCB 2 LG4-M1A6R-010 CONTROL BOARD COLLAR 3 FTA-A…

100%1 / 1226
5E-13
I･pulse　 F1　Series
F1-16 (E type)
P 7

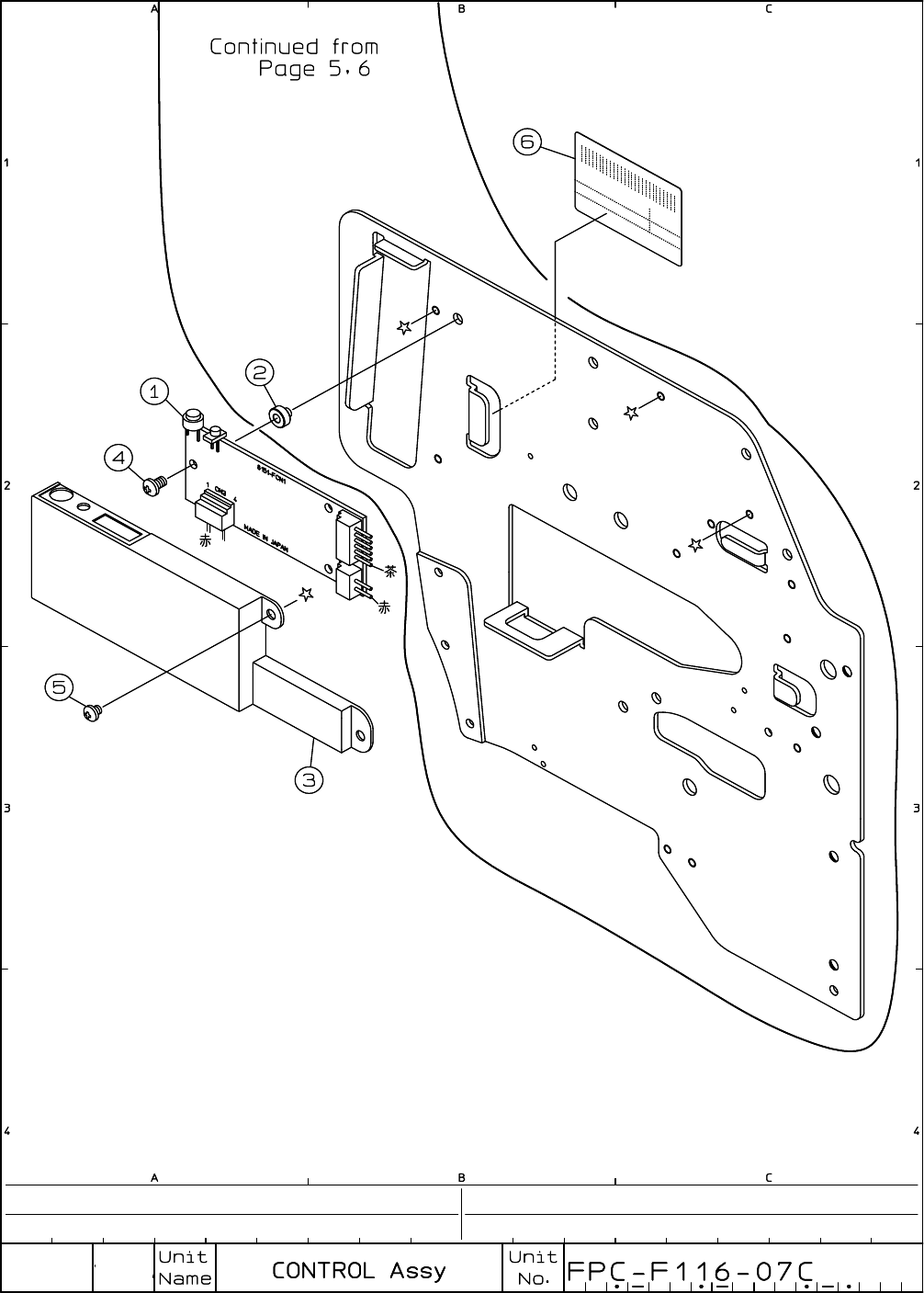

No. Code No. Parts Name Q'ty Parts No.
LG4-M4AA1-001
CONTROL BOARD 1
FTA-A12-8151-FCN1
LG4-M4AA1-002
CONTROL BOARD 1
FTA-A12-8151-FCB
2
LG4-M1A6R-010
CONTROL BOARD COLLAR
3
FTA-A08-8152-B
3
LG4-M1A6S-001 CONTROL BOARD COVER
1
FTA-A08-8153ｰB
4 K87-M111W-000 SCREW,PAN HEAD+ 3
3MC-5-P
5
K87-M111N-000
SCREW,PAN HEAD+ 3
3MC-3-P
6
LG4-M5AC1-000
SERIAL NO. STICKER 1
FTA-A16-8150-SNS
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1…F1-16-2725E～
※1 1
5E-15
