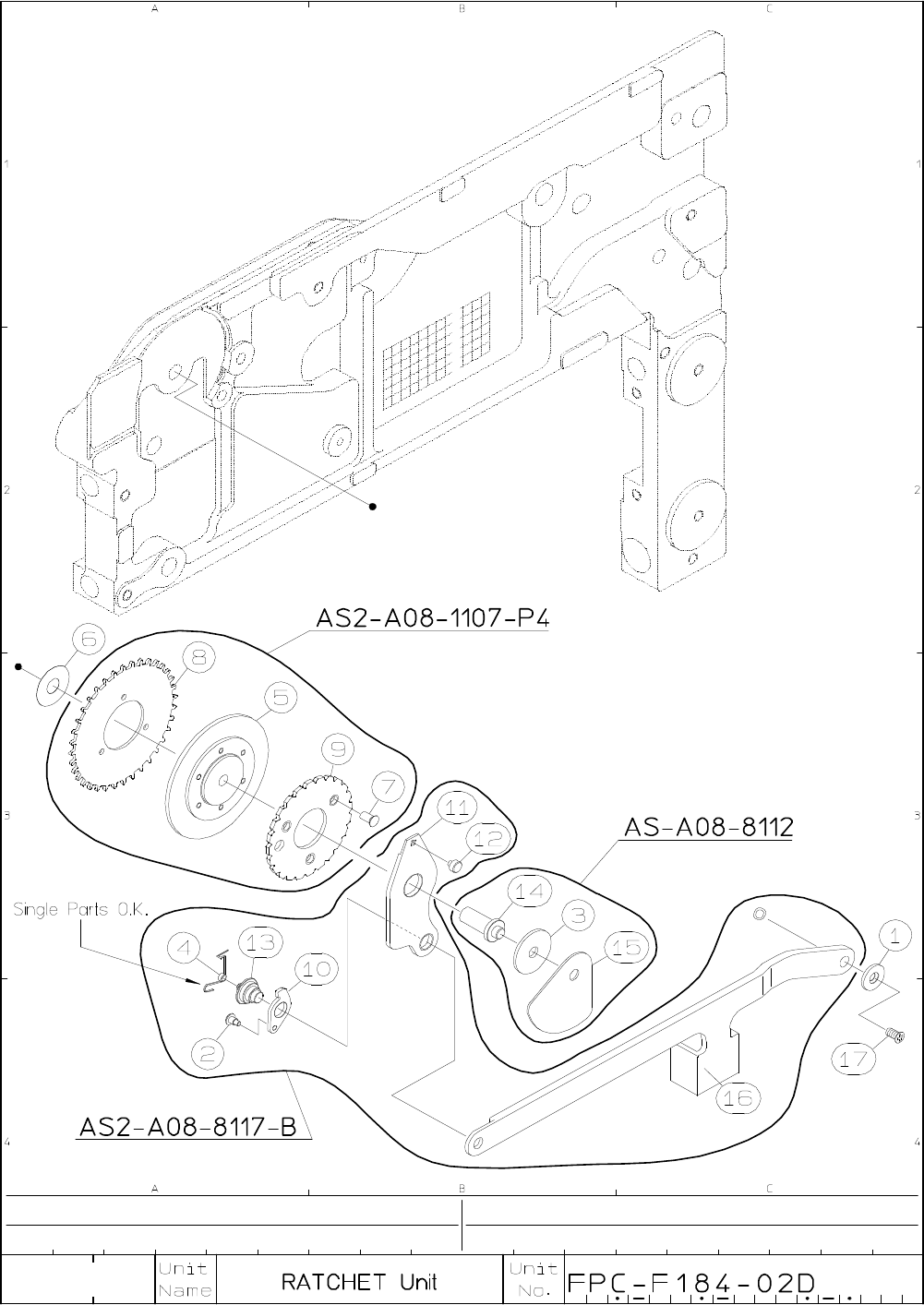

I･pulse F1 Series F1-84 (F type) P 2 No. Code No. Parts Name Q'ty Parts No. KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4 LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8…
I･pulse F1 Series
F1-84 (F type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4
LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B
LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8112
1
K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2
K87-M112F-000 SPRING HOOK PIN 1 CTF-A08- 211-B2
3
K87-M112M-100 FLANGE A 1 CTF-A08- 712-1
4 LG4-M1A2F-000 SCREW COIL SPRING 1
FTA-A08-8111-1
5
K87-M1121-000 METAL 1 FTA-A08-1103
※1 6 KW1-M11BS-050
WASHER 1
FTA-A08-1103-005B
7
K87-M1122-000 RIVET 3 FTA-A08-1103-1
8
KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B
9
K87-M1124-000 RATCHET 1 FTA-A08-1107-P4
10
K87-M112G-100 RACKING POLE 1 FTA-A08-1111
11
LG4-M1A2E-000 RACKING LEVER 1 FTA-A08-8108
12
LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109
13
LG4-M1A2C-000 RACKING POLE AXIS 1 FTA-A08-8110
14
LG4-M1A2N-000 RATCHET AXIS 1 FTA-A08-8112
15
LG4-M1A2P-000 FLANGE B 1 FTA-A08-8112-2
16
LG4-M1A2B-000 MAIN ARM 1 FTA-A08-8117-B
17
K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
18
19
20
21
22
23
24
25
26
27
28
29
※1…F1-84-039856F～
