I･pulse　 F1　Series

F1-825 （F type)

P 5

No. Code No. Parts Name Q'ty Parts No.

※1 LG4-M1A60-130

BACK PLATE ASSY

1

AS -A08-8250-B

※1 LG4-M1A68-000

TENSION LEVER ASSY

1

AS -A08-8168

1 K87-M116A-100 SPRING HOOK PIN 2 CTF-M08- 166-B

2 LG4-M1A72-000

CONNECT PIN

1 FTA-A08-8146

3 LG4-M1A71-000

ROD CONNECT

1 FTA-A08-8147

4 LG4-M1AA3-000

MICRO SWITCH ASSY

1 FTA-A08-8151-6

5 LG4-M1AA4-000

VALVE HARNESS ASSY

1 FTA-A08-8151-7

※1 6 LG4-M1A6K-000

TENSION LEVER

1

FTA-A08-8168

※1 7 LG4-M1A6L-000

COIL SPRING

1

FTA-A08-8168-SP

※1 8 LG4-M1A6E-000 METAL 1 FTA-A08-8169

※1 9 LG4-M1A6F-000

ROLLER

3 FTA-A08-8172

10 LG4-M1A6A-000

ROLLER AXIS T

1 FTA-A08-8173

11 LG4-M1A6C-000

LEAF T

1 FTA-A08-8173-1

※1 12 LG4-M1A6B-010

ROLLER AXIS U

1 FTA-A08-8174-B

※1 13 LG4-M1A6N-010

MIDDLE GUIDE PLATE C

1 FTA-A08-8176-D

※1

14

LG4-M1A61-110

BACK PLATE

1 FTA-A08-8250-B

※1 15

LG4-M5A6D-000 LEAF U

1 FTA-A16-8174-1

※1 16 LG4-M1A69-500

ROLLER AXIS U

1

FTA-E08-8582

※1 17 LG4-M1AB1-010

VAL PACK CYLINDER

1 BDA10×15-380W

18 LG4-M1AB3-000

BARB CONNECTOR

1 BF3BU-136W

19 K87-M111N-000

SCREW,PAN HEAD+

3 3MC-3-P

20 LG4-M1ADC-000

SCREW,PAN HEAD+

1 3MC-7-P

21 K87-M11B4-100

SCREW,FLAT HEAD+

1 3MK-12-P

22 LG4-M1ADD-000

SCREW,FLAT HEAD+

5 3MK-14-P

※1 23 K87-M23B6-000

SCREW,FLAT HEAD+

1 4MK-8-P

24 K87-M21BN-000

SCREW,NUT

2 3MH-P

25 K87-M11D7-000

CIRCLIP E

1 E.32

26

27

28

29

30

31

32

※1…F1-825-016236F～

I･pulse　 F1 Series

F1-825 （F type)

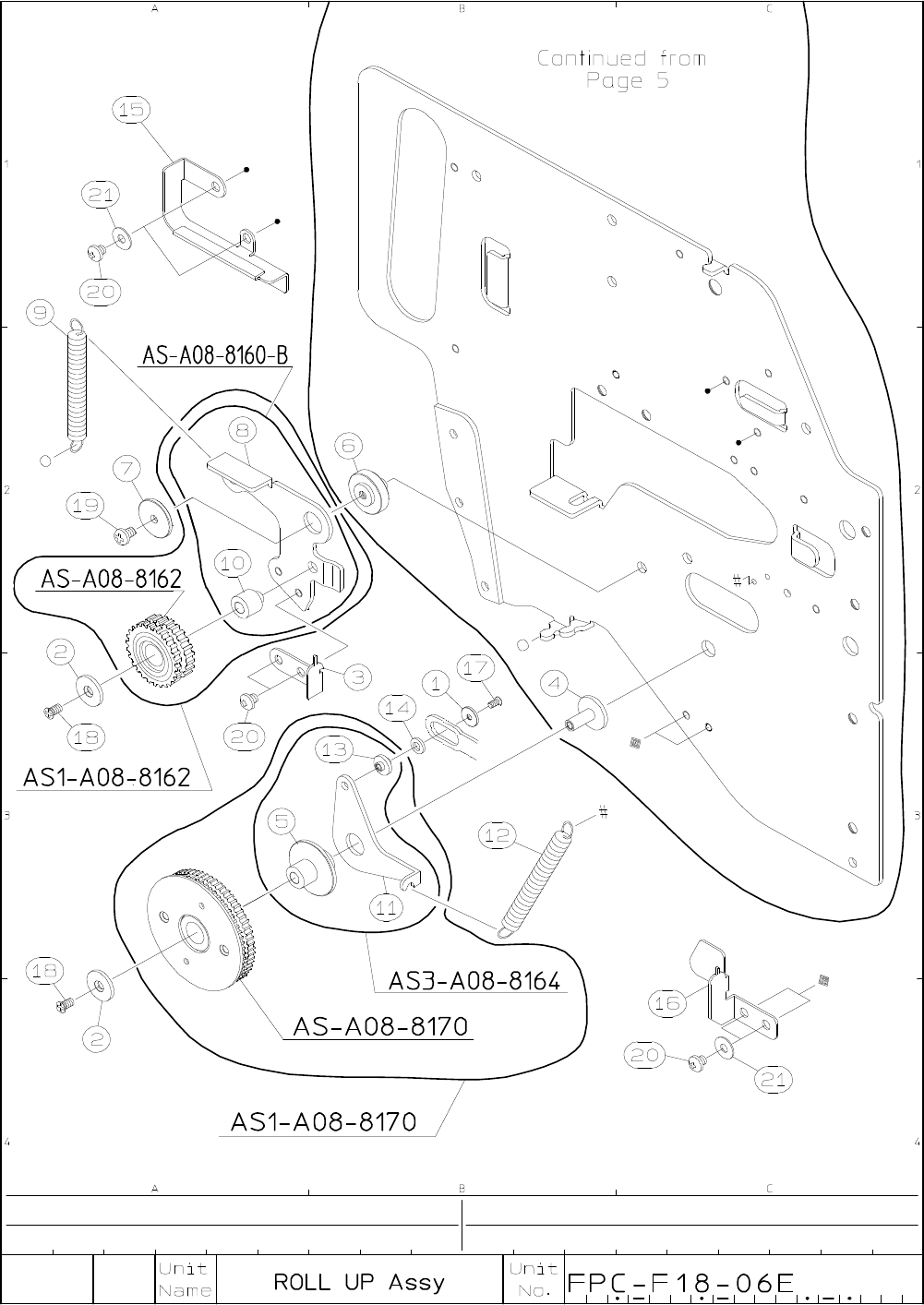

P 6

Code No. Parts Name Q'ty Parts No.

LG4-M1A87-000

TENSION LEVER　ASSY

1 AS -A08-8160-B

LG4-M1A8E-000

IDLER ROLLER ASSY

1 AS -A08-8162

LG4-M1A86-000

I．ROLLER ALL ASSY

1 AS1-A08-8162

LG4-M1A82-012

INDEKING LEVER ASSY

1 AS3-A08-8164

LG4-M1A8D-000

DRIVE ROLLER ASSY

1 AS -A08-8170

LG4-M1A81-003 D．ROLLER ALL ASSY 1 AS1-A08-8170

1 K87-M111C-000

PLANE WASHER

1 CTF-A08- 16-B

2 K87-M117B-000

PLANE WASHER

2 CTF-M08- 76-B

3 KW1-M11A3-001

LOWER GUIDE PLATE,L

1 FTA-A08-1179-C

4 LG4-M1A62-000

METAL SHAFT

1 FTA-A08-8155

5 LG4-M1A8C-000

LEVER METAL

1 FTA-A08-8158-B

6 LG4-M1A63-500

LEVER AXIS PIN

1 FTA-E08-8559

7 LG4-M1A64-500

WASHER

1 FTA-E08-8559-1

8 LG4-M1A65-010

TENSION LEVER

1 FTA-A08-8160-B

9 LG4-M4A8B-000

TENSION LEVER RE. SP.

1 FTA-A12-8160-700

10 LG4-M1A66-010

ROLLER AXIS

1 FTA-A08-8163-B

11 LG4-M1A83-000

INDEKING LEVER

1 FTA-A08-8164

12 LG4-M1A8A-000

INDEKING LEVER RE. SP.

1 FTA-A08-8164-440

13 LG4-M1A84-010

ARM STUD

1 FTA-A08-8166-B

14 LG4-M1A85-000

ROLLER

1 FTA-A08-8167

※1

15 LG4-M1A6M-010

MIDDLE GUIDE PLATE T

1 FTA-A08-8177-D

16 LG4-M1A6P-011

LOWER GUIDE PLATE,R

1 FTA-A08-8178-C

17 K87-M11BF-000

SCREW,FLAT HEAD+

1 P2MK-4-IB

18

K87-M11BB-000

SCREW,FLAT HEAD+

2 P2.6MK-5-IB

19 K87-M111W-000 SCREW,PAN HEAD+ 1 3MC-5-P

20

K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P

21 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P

22

23

24

25

26

27

28

※1…F1-825-016236F～
