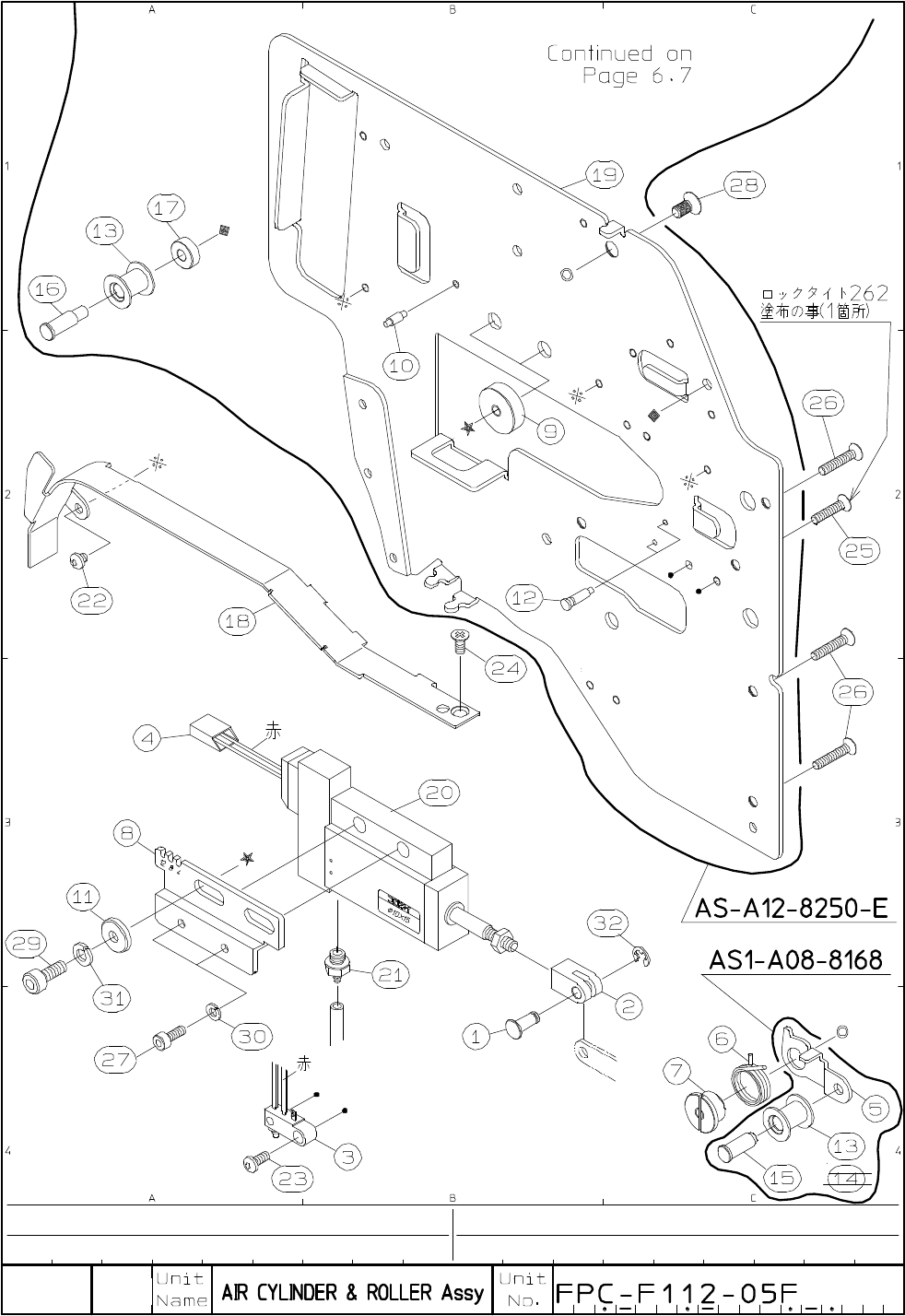

I･pulse F1 Series F１-12 （H type) P 5 No. Code No. Parts Name Q'ty Parts No. LG4-M4A60-130 BACK PLATE ASSY 1 AS -A12-8250-E LG4-M4A68-000 TENSION LEVER ASSY 1 AS1-A08-8168 1 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146 2…
I･pulse F1 Series
F１-12 （H type)
P 5

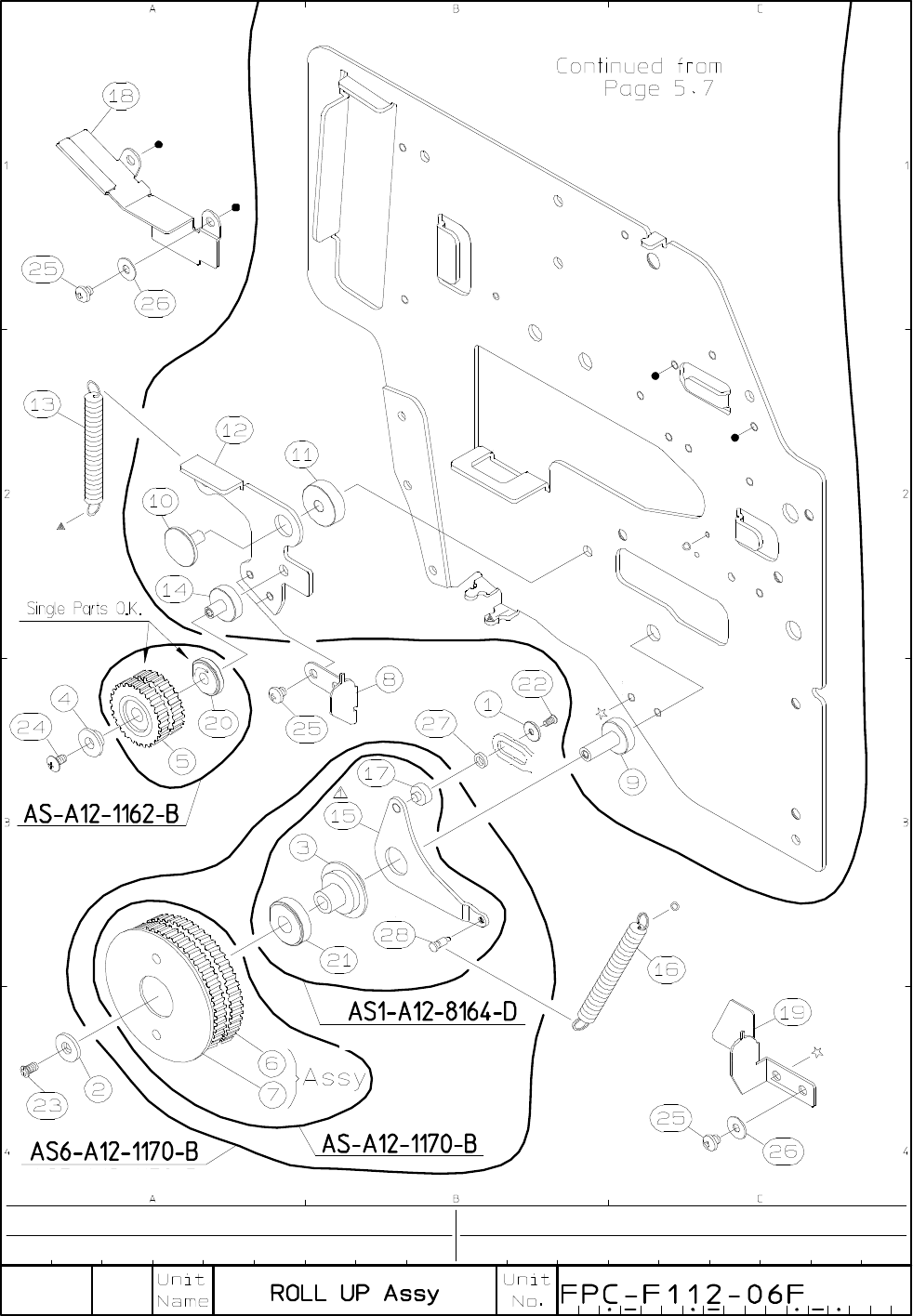

No. Code No. Parts Name Q'ty Parts No.
LG4-M4A60-130 BACK PLATE ASSY 1 AS -A12-8250-E
LG4-M4A68-000 TENSION LEVER ASSY 1 AS1-A08-8168
1 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146
2 LG4-M1A71-000 ROD CONNECT 1 FTA-A08-8147
3 LG4-M1AA3-000 MICRO SWITCH ASSY 1 FTA-A08-8151-6
4 LG4-M1AA4-000 VALVE HARNESS ASSY 1 FTA-A08-8151-7
5 LG4-M1A6K-000 TENSION LEVER 1 FTA-A08-8168
6 LG4-M1A6L-000 COIL SPRING 1 FTA-A08-8168-SP
7 LG4-M1A6E-000 METAL 1 FTA-A08-8169
8 LG4-M4A73-001 ADJUST PLATE 1 FTA-A12-8151-D
9 LG4-M4A6E-010 ADJUST PLATE STUD 2 FTA-A12-8151-1B
10 LG4-M4A6F-000 SET PIN 1 FTA-A12-8152
11 LG4-M4A74-000 PLANE WASHER 2 FTA-A12-8154-B
12 LG4-M4A6J-000 SPRING HOOK PIN 2 FTA-A12-8156
13 LG4-M4A6H-010 ROLLER 1 2 FTA-A12-8172-1B
14 LG4-M4A6G-010 TAPER ROLLER 1 FTA-A12-8172-2B
15 LG4-M4A69-000 ROLLER AXIS 1 FTA-A12-8172-3
16 LG4-M4A6A-000 ROLLER AXIS T 1 FTA-A12-8173
17 LG4-M4A6C-000 LEAF T 1 FTA-A12-8173-1
18 LG4-M4A6N-010 MIDDLE GUIDE PLATE C 1 FTA-A12-8176-E
19 LG4-M4A61-130 BACK PLATE 1 FTA-A12-8250-E
20 LG4-M1AB1-010 VAL PACK CYLINDER 1 BDA10×15-380W
21 LG4-M1AB3-000 BARB CONNECTOR 1 BF3BU-136W
22 K87-M111N-000 SCREW , PAN HEAD+ 3 3MC-3-P
23 LG4-M1ADC-000 SCREW , PAN HEAD+ 1 3MC-7-P
24 LG4-M4ADE-000 SCREW , FLAT HEAD+ 1 3MK-7-P
25 LG4-M1ADD-000 SCREW , FLAT HEAD+ 1 3MK-14-P
26 LG4-M4ADD-000 SCREW , FLAT HEAD+ 3 3MK-15-P
27 K87-MB01H-000 BOLT,HEX SOCKET HEAD 2 3MX-8-P
28 K87-M23B6-000 SCREW , FLAT HEAD+ 1 4MK-8-P
29 K87-M23BB-000 BOLT,HEX SOCKET HEAD 2 4MX-10-P
30 K87-M21BM-000 SPRING LOCK WASHER 2 3MU-P
31 LG4-M4AD3-000 SPRING LOCK WASHER 2 4MU-P
32 K87-M11D7-000 CIRCLIP E 1 E.32
