I･pulse F1 Series F1-84(C type) No. Code No. Parts Name Q'ty Parts No. LG4-M1A30-010 HOLD LEVER ASSY 1 AS1-A08-8190-B 1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325 2 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B 3 LG4-M1A…
3-5
I･pulse F1 Series
F1-84(C type)
No. Code No. Parts Name Q'ty Parts No.

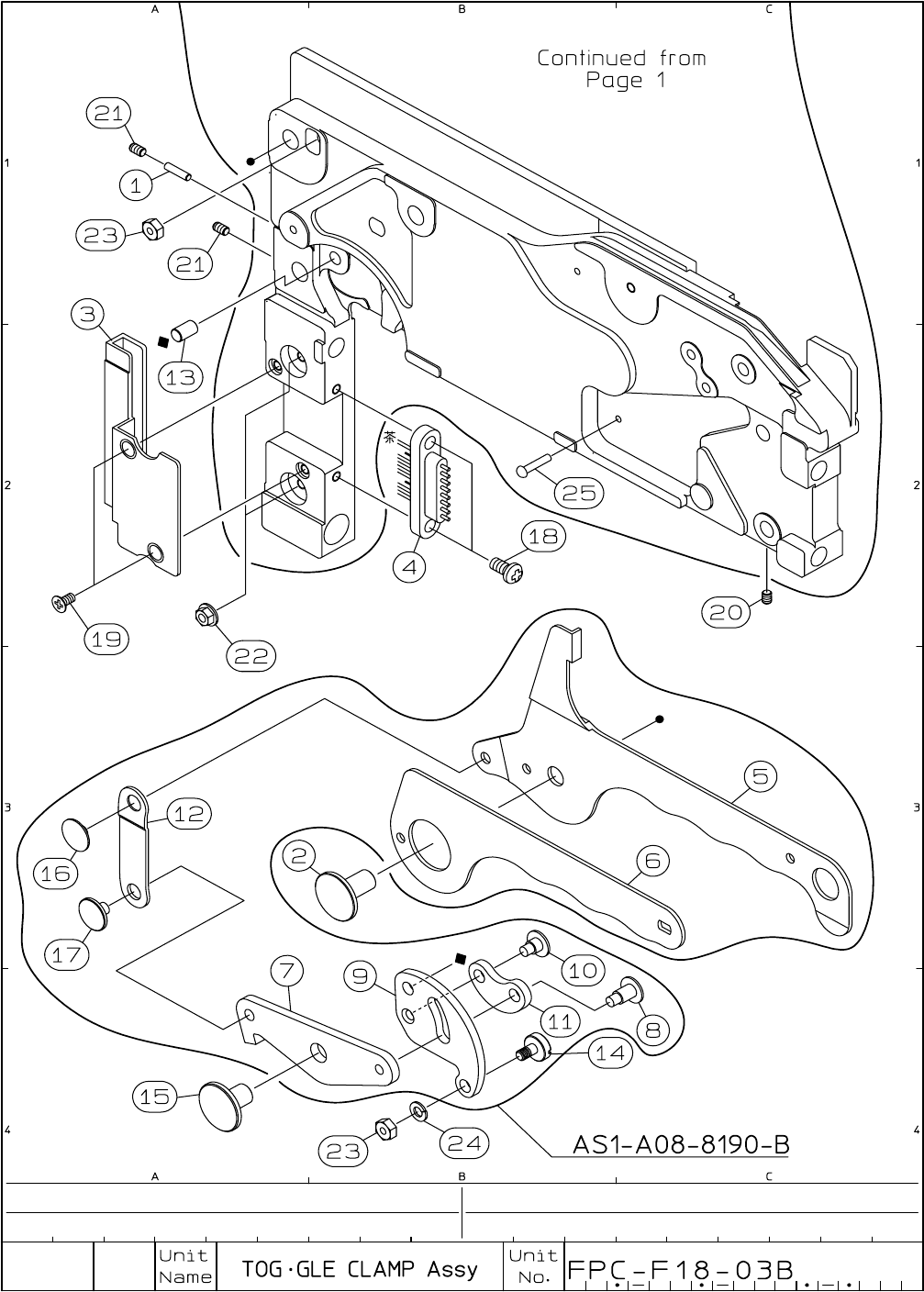

LG4-M1A30-010 HOLD LEVER ASSY 1
AS1-A08-8190-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A1A-001 COVER PLATE
1
FTA-A08-8149-C
4
LG4-M1AA2-000
SPRING CONNECTOR ASSY
1
FTA-A08-8151-5
5
LG4-M1A31-000 HOLD LEVER M
1 FTA-A08-8190-B
6
LG4-M1A32-000 HOLD LEVER S
1 FTA-A08-8190-1B
7
LG4-M1A34-000 CLAMP LEVER
1 FTA-A08-8191-B
8
LG4-M1A3A-000 HINGE PIN 1
1
FTA-A08-8191-1
9
LG4-M1A35-000 CLANK ARM
1 FTA-A08-8192
10
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
11
LG4-M1A36-000 ARM
1
FTA-A08-8193
12
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
13
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
14 LG4-M1A37-010
ADJUST CLAMP PIN 1
FTA-A08-8196
15
LG4-M1A3K-000 CLAMP LEVER AXIS PIN
1 FTA-A08-8197
16
LG4-M1A38-000 LINK PIN T
1
FTA-A08-8198
17
LG4-M1A39-000 LINK PIN U
1
FTA-A08-8199
18 LG4-M1ADC-000 SCREW , PAN HEAD ＋ 2 3MC-7-P
19 K87-M111S-000
SCREW , FLAT HEAD ＋
2
3MK-6-P
20 K87-M111T-000 SCREW , SET 1 3MY-3-F
21 K87-M111R-000 SCREW , SET 2
3MY-5-F
22 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
23 K87-M21BN-000
SCREW NUT
2
3MH
24 K87-M21BM-000
SPRING LOCK WASHER
1
3MU
25 K87-M1115-000
CIRCULAR RIVET
1
φ2-10
26
27
28
29
30
31
32
33
