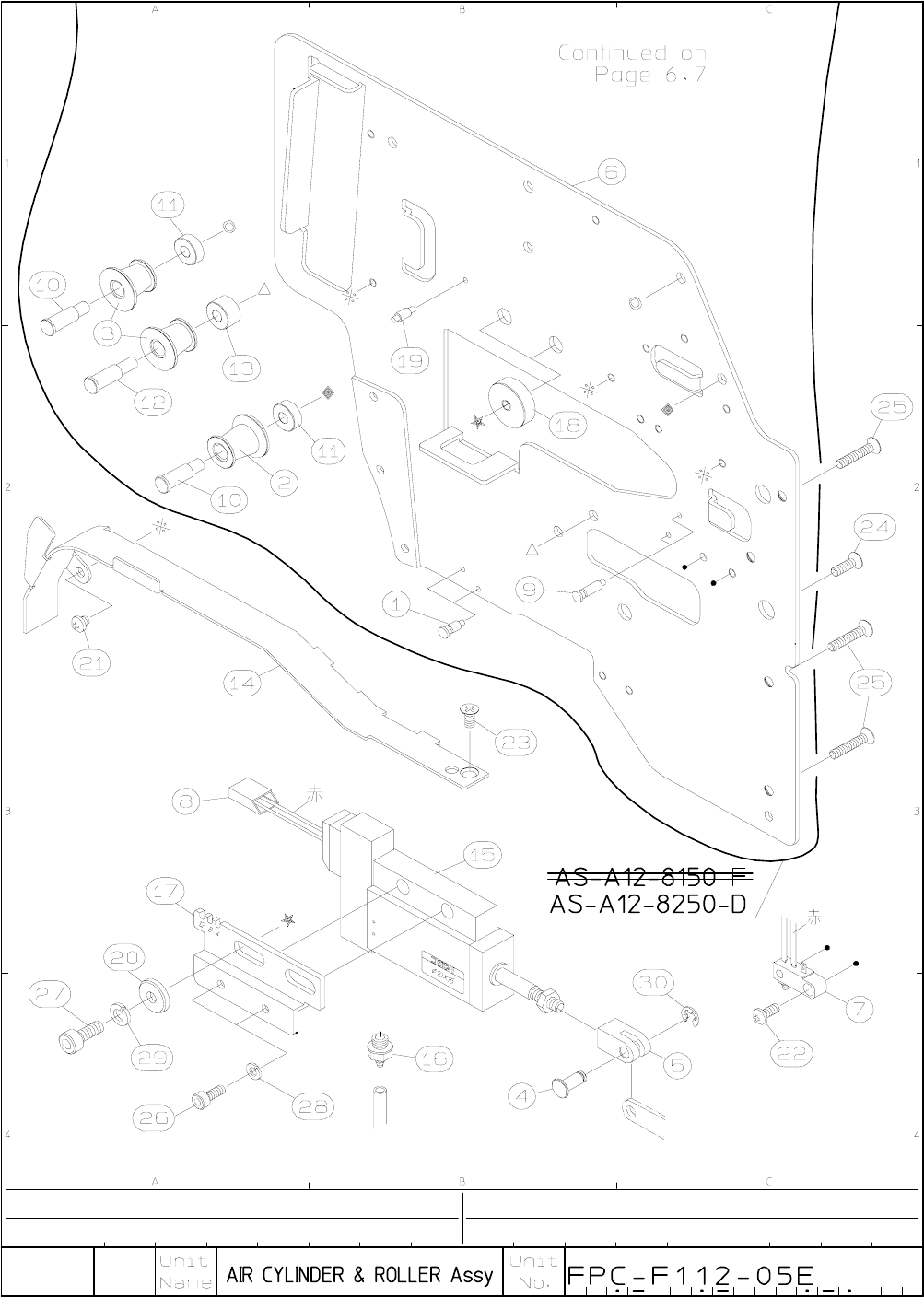

I･pulse F1 Series F1-12 (G type) P 5 No. Code No. Parts Name Q'ty Parts No. LG4-M4A60-040 BACK PLATE ASSY AS-A12-8150- F LG4-M4A60-120 BACK PLATE ASSY AS-A12-8250-D 1 K87-M116A-100 SPRING HOOK PIN CTF-M08- 166-B 2 L…
4G-9
I･pulse F1 Series
F1-12 (G type)
P 5
No. Code No. Parts Name Q'ty Parts No.
LG4-M4A60-040 BACK PLATE ASSY AS-A12-8150-F
LG4-M4A60-120 BACK PLATE ASSY AS-A12-8250-D
1 K87-M116A-100 SPRING HOOK PIN CTF-M08- 166-B
2
LG4-M4A6G-000 TAPER ROLLER
FTA-A12-8172-1
3
LG4-M4A6H-000 TAPER ROLLER
FTA-A12-8172-2
4
LG4-M1A72-000 CONNECT PIN
FTA-A08-8146
5
LG4-M1A71-000 ROD CONNECT
FTA-A08-8147
LG4-M4A61-030 BACK PLATE
FTA-A12-8150-F
LG4-M4A61-120 BACK PLATE
FTA-A12-8250-D
7
LG4-M1AA3-000 MICRO SWITCH ASSY
FTA-A08-8151-6
8
LG4-M1AA4-000 VALVE HARNESS ASSY
FTA-A08-8151-7
9
LG4-M4A6J-000
SPRING HOOK PIN FTA-A12-8156
10
LG4-M4A6A-000 ROLLER AXIS T
FTA-A12-8173
11
LG4-M4A6C-000 LEAF T
FTA-A12-8173-1
12
LG4-M4A6B-000 ROLLER AXIS U
FTA-A12-8174
13
LG4-M4A6D-000 LEAF U
FTA-A12-8174-1
14
LG4-M4A6N-001 MIDDLE GUIDE PLATE C
FTA-A12-8176-D
15
LG4-M4AB1-000 VAL PACK CYLINDER
BDA10×15-343W
16 LG4-M1AB3-000
BARB CONNECTOR
BF3BU-136W
17
LG4-M4A73-001 ADJUST PLATE
FTA-A12-8151-D
18
LG4-M4A6E-010
ADJUST PLATE STUD FTA-A12-8151-1B
19
LG4-M4A6F-000
SET PIN FTA-A12-8152
20
LG4-M4A74-000 PLANE WASHER FTA-A12-8154-B
21
K87-M111N-000 SCREW,PAN HEAD+
3MC-3-P
22
LG4-M1ADC-000 SCREW PAN HEAD+
3MC-7-P
23
LG4-M4ADE-000 SCREW,FLAT HEAD+ 3MK-7-P
24 KW1-M45BG-000
SCREW,FLAT HEAD+
3MK-10-P
25
LG4-M4ADD-000 SCREW,FLAT HEAD+
3MK-15-P
26 K87-MB01H-000 BOLT,HEX SOCKET HEAD 3MX-8-P
27 K87-M23BB-000 BOLT,HEX SOCKET HEAD 4MX-10-P
28 K87-M21BM-000 SPRING LOCK WASHER
3MU-P
29
LG4-M4AD3-000
SPRING LOCK WASHER
4MU-P
30 K87-M11D7-000
CIRCLIP E
E.32
*1 F1-12-006658G～
