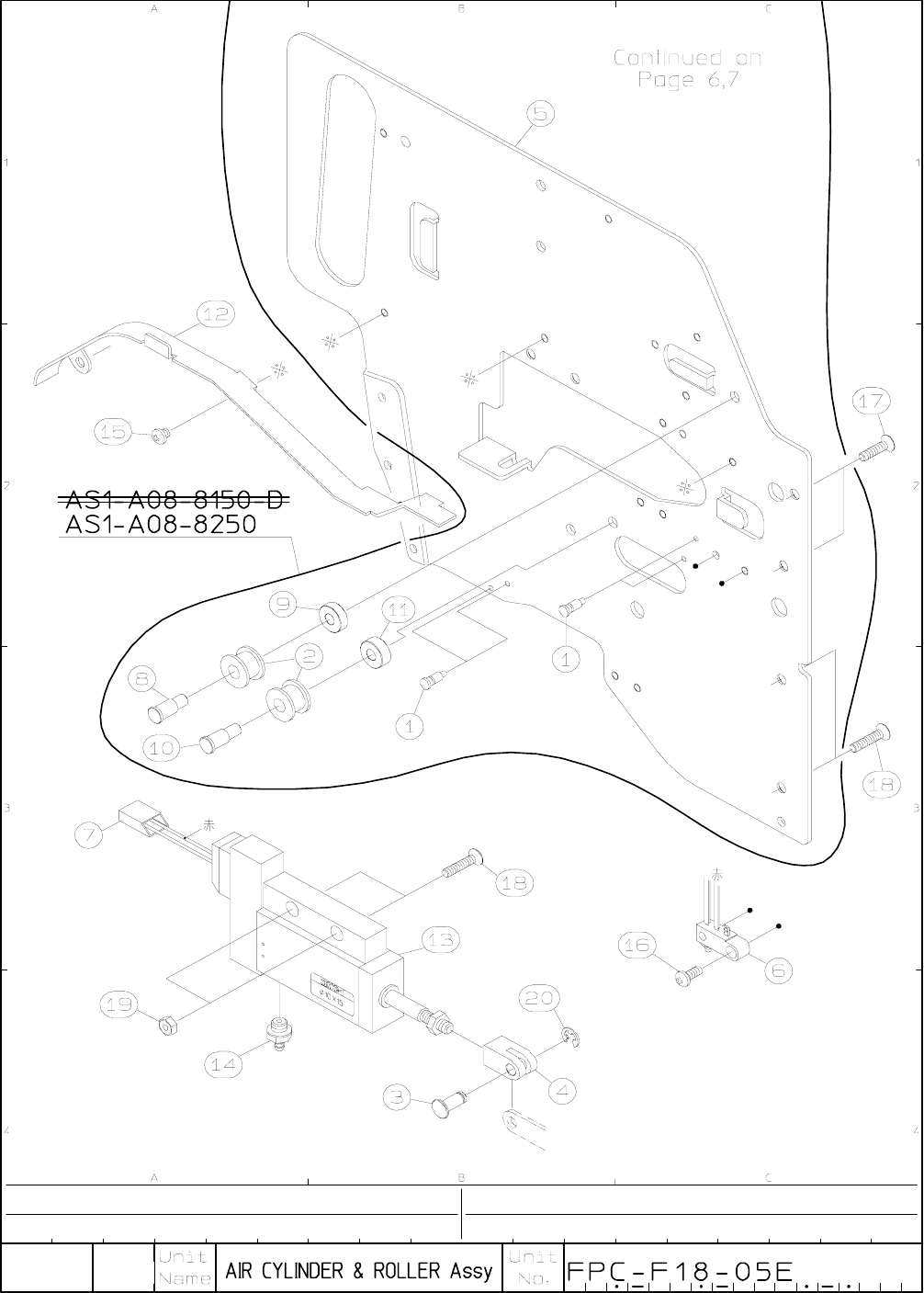

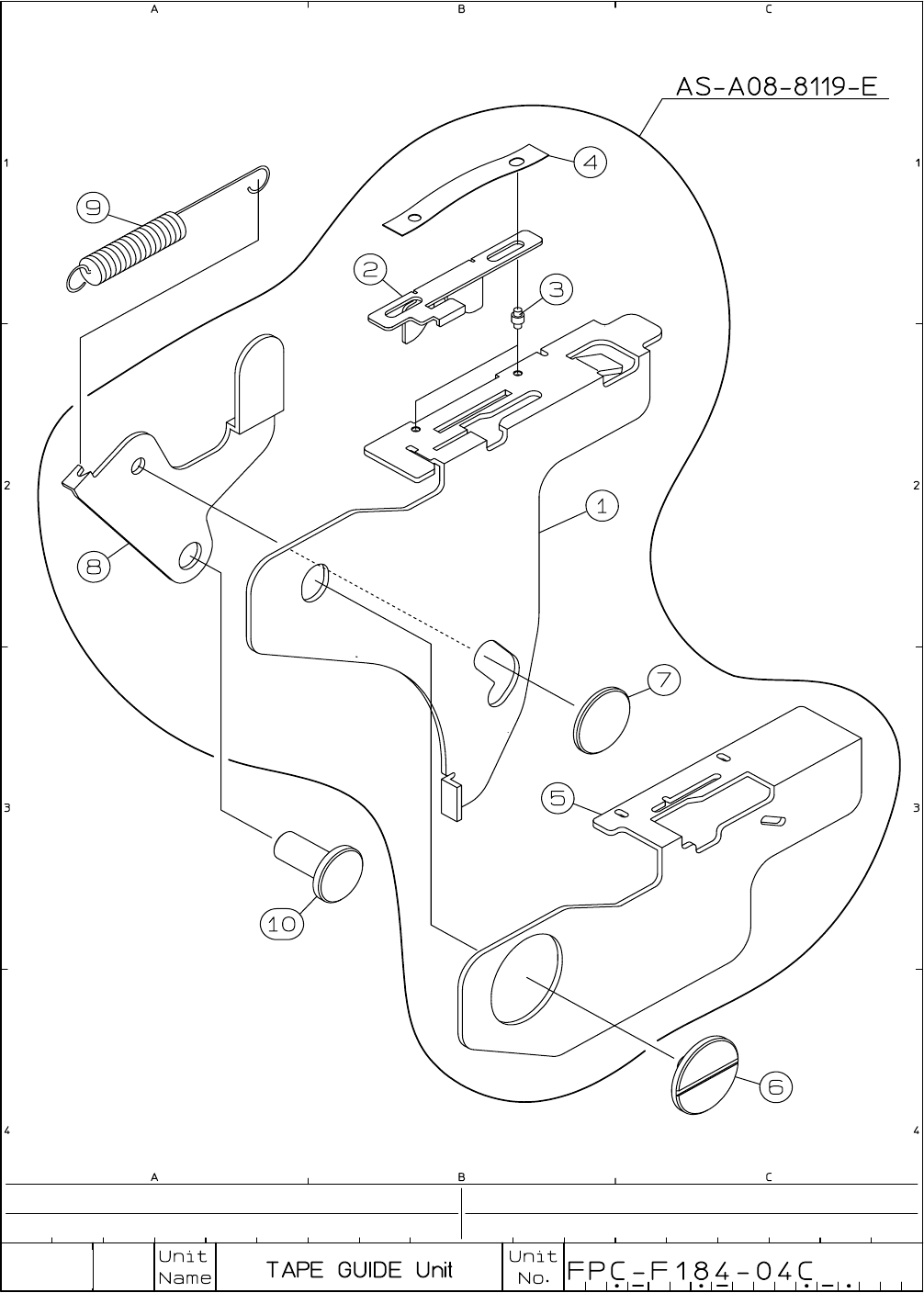

I･pulse F1 Series F1-84 (E type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M1A40-020 T.G. PLATE ASSY 1 AS -A08-8119-E 1 LG4-M1A41-020 TAPE GUIDE PLATE 1 FTA-A08-8119-E 2 LG4-M1A42-010 SHUTTER PLATE 1 FTA-A08-81…
3E-7
I･pulse F1 Series
F1-84 (E type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A40-020
T.G. PLATE ASSY 1 AS -A08-8119-E
1 LG4-M1A41-020
TAPE GUIDE PLATE 1 FTA-A08-8119-E
2
LG4-M1A42-010
SHUTTER PLATE 1 FTA-A08-8120-D
3 LG4-M1A45-010
SHUTTER GUIDE PIN 2 FTA-A08-8121-B
4
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M1A43-020
SHUTTER GUARD PLATE 1 FTA-A08-8123-E
6 LG4-M1A4L-000
T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000
LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
10 LG4-M1A4K-000
T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
