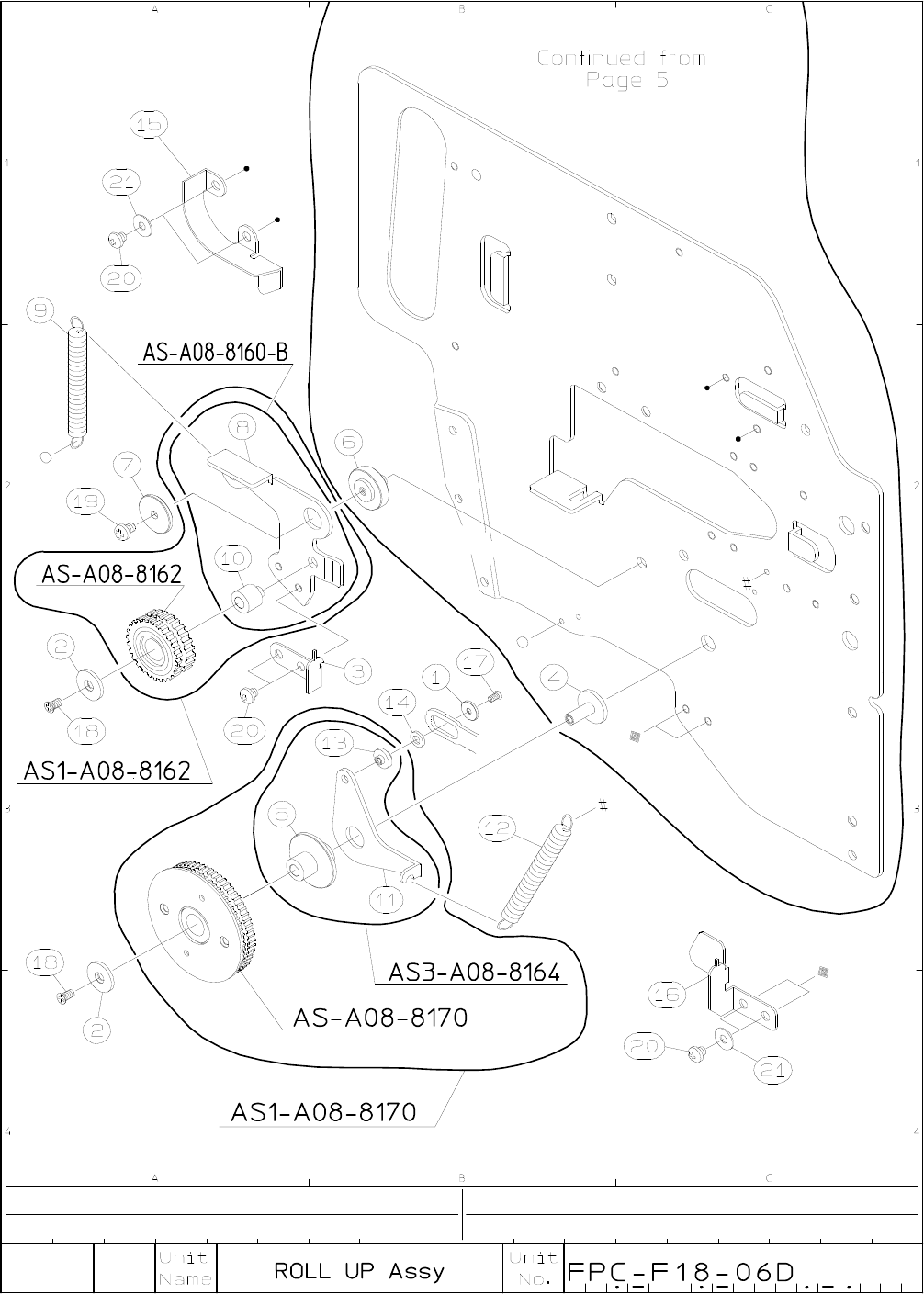

2F-9
I･pulse  F1 Series
F1-82-1005 (F type)
P 5
No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M1A60-120 BACK PLATE ASSY 1 AS2-A08-8250
1 K87-M116A-100 SPRING HOOK PIN 4 CTF-M08- 166-B
2 KW1-M116U-000 ROLLER 2 CTF-M08- 342
3 LG4-M1A72-000 CONNECT PIN 1 FTA-A08-8146
4 LG4-M1A71-000 ROD CONNECT 1 FTA-A08-8147
5 LG4-M1A61-100 BACK PLATE 1 FTA-A08-8250
6 LG4-M1AA3-000 MICRO SWITCH ASSY 1 FTA-A08-8151-6
7 LG4-M1AA4-000 VALVE HARNESS ASSY 1 FTA-A08-8151-7
8 LG4-M1A6A-000 ROLLER AXIS T 1 FTA-A08-8173
9 LG4-M1A6C-000 LEAF T 1 FTA-A08-8173-1
10 LG4-M1A6B-000 ROLLER AXIS U 1 FTA-A08-8174
11 LG4-M1A6D-000 LEAF U 1 FTA-A08-8174-1
12 LG4-M1A6N-000 MIDDLE GUIDE PLATE C 1 FTA-A08-8176-C
13 LG4-M1AB1-001 VAL PACK CYLINDER 1 BDA10×15-350W
14 LG4-M1AB3-000 BARB CONNECTOR 1 BF3BU-136W
15 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
16 LG4-M1ADC-000 SCREW,PAN HEAD+ 1 3MC-7-P
17 K87-M11B4-100 SCREW,FLAT HEAD+ 2 3MK-12-P
18 LG4-M1ADD-000 SCREW,FLAT HEAD+ 4 3MK-14-P
19 K87-M21BN-000 SCREW,NUT 2 3MH-P
20 K87-M11D7-000 CIRCLIP E 1 E.32
21
22
23
24
25
26
27
28
29
30
※1…F1-825- 15116F～
