6B-7
I･pulse　 F1　Series
F1-24(B type)
P 4

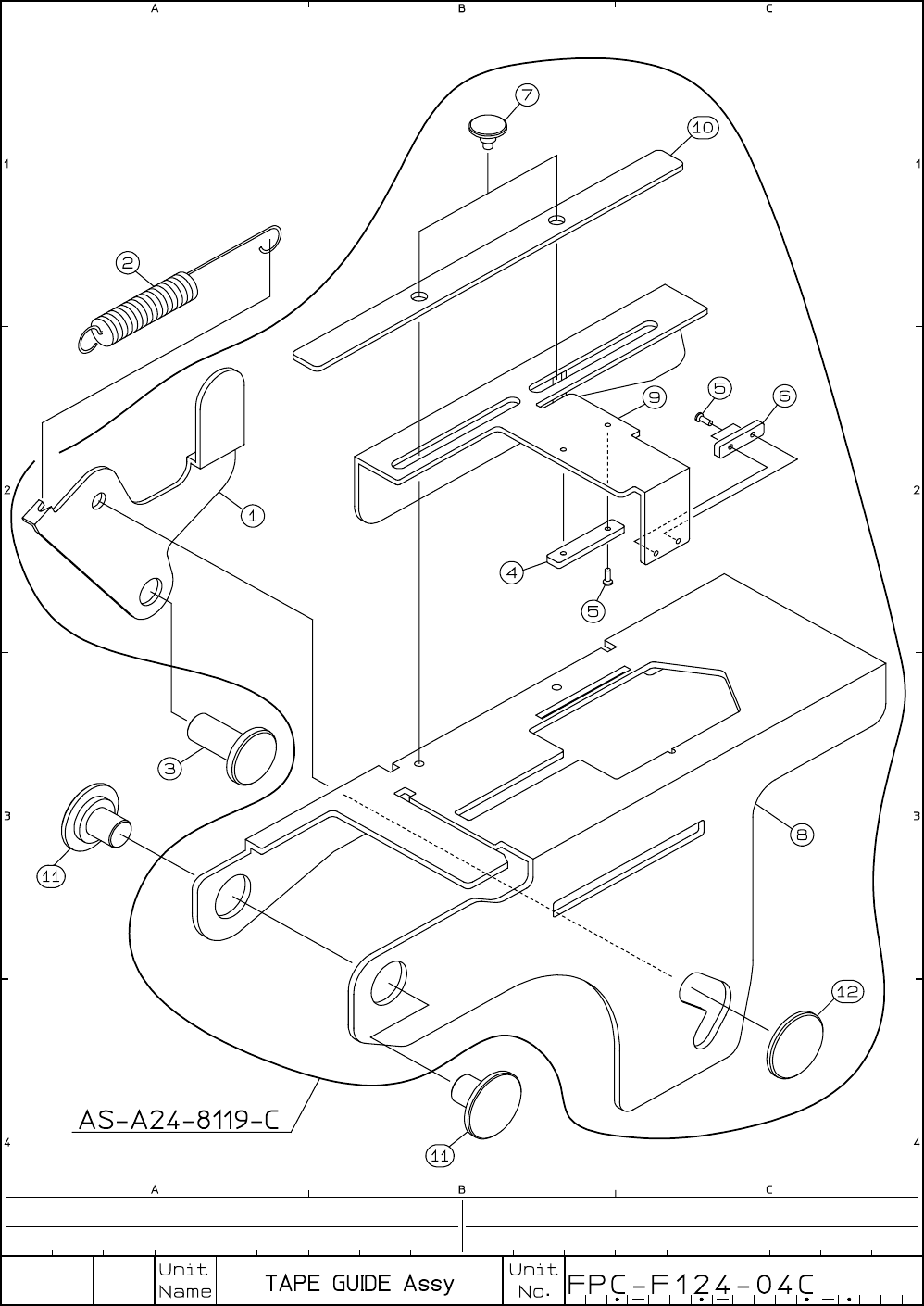

No. Code No. Parts Name Q'ty Parts No.
LG4-M6A40-001
TAPE GUIDE ASSY 1 AS-A24-8119-C
1
LG4-M1A46-000 LOCK LEVER
1
FTA-A08-8127-B
2
LG4-M1A48-001 T. G. PUSH SPRING
1
FTA-A08-8127-50
3
LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
4 KW1-M4547-000
SHUTTER PIECE
1
FTA-A24-1120-1
5 KW1-M4548-000
RIVET
4
FTA-A24-1120-2
6 KW1-M4549-000
SHUTTER GUIDE
1
FTA-A24-1120-3
7 KW1-M4544-000
SHUTTER GUIDE PIN
2
FTA-A24-1122-B
8
LG4-M6A41-001
TAPE GUIDE PLATE 1
FTA-A24-8119-C
9
LG4-M6A42-001
SHUTTER PLATE 1
FTA-A24-8120-B
10
LG4-M6A49-001 COVER PLATE
1
FTA-A24-8123-B
11
LG4-M6A4L-000 TAPE GUIDE AXIS PIN
2
FTA-A24-8124
12
LG4-M6A47-000 T.G. GUIDE PIN
1
FTA-A24-8125
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※Note: No.8, 9, 10 are applied from “F1-24-0000171B～”.
