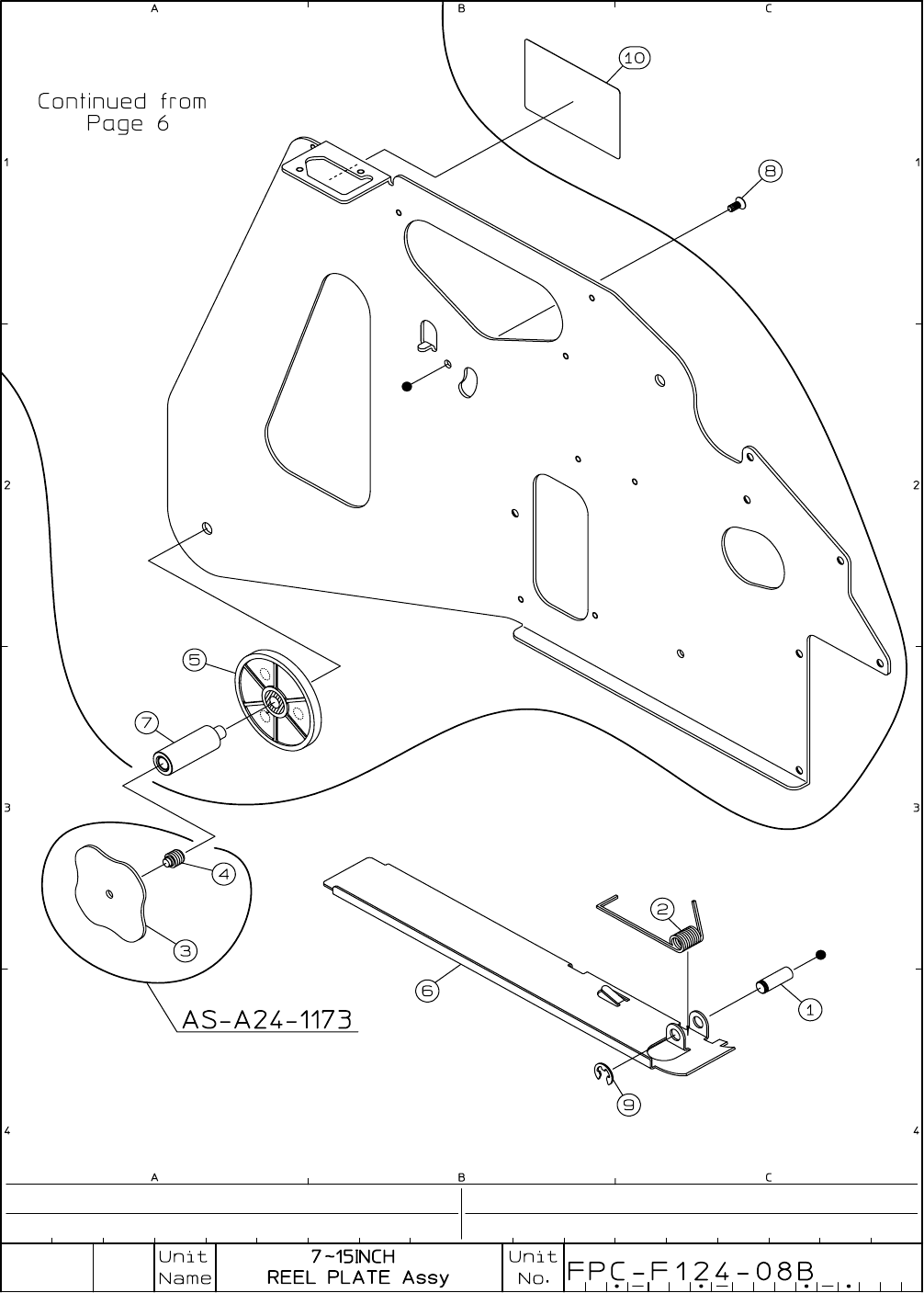

I･pulse F1 Series F1-24 (C type) P 8 No. Code No. Parts Name Q'ty Parts No. KW1-M456N-000 REEL COVER ASSY 1 AS-A24-1173 1 LG4-M4A92-010 REEL TENTION AXIS 1 FTA-A12-8182-B 2 LG4-M4A9B-000 COIL SPRING 1 FTA-A12-8183-B…

100%1 / 1226
6C-15
I･pulse  F1 Series
F1-24 (C type)
P 8
No. Code No. Parts Name Q'ty Parts No.
KW1-M456N-000 REEL COVER ASSY
1
AS-A24-1173
1
LG4-M4A92-010
REEL TENTION AXIS 1 FTA-A12-8182-B
2
LG4-M4A9B-000 COIL SPRING
1 FTA-A12-8183-B
3 KW1-M456P-000 COVER 1 FTA-A24-1173
4 KW1-M456R-000 SCREW 1 FTA-A24-1173-1B
5
KW1-M456U-001 REEL FLANGE 1 FTA-A24-1178-C
6 LG4-M6A9A-100
REEL GUIDE ARM 1 FTA-A24-8269
7
LG4-M6A65-000
REEL AXIS 1 FTA-A24-8172
8 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
9
LG4-M4ADF-000 CIRCLIP E
1E.50
10LG4-M6AC1-000
SERIAL NO. STICKER1
FTA-A24-8150-SNS
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
