I･pulse F1 Series

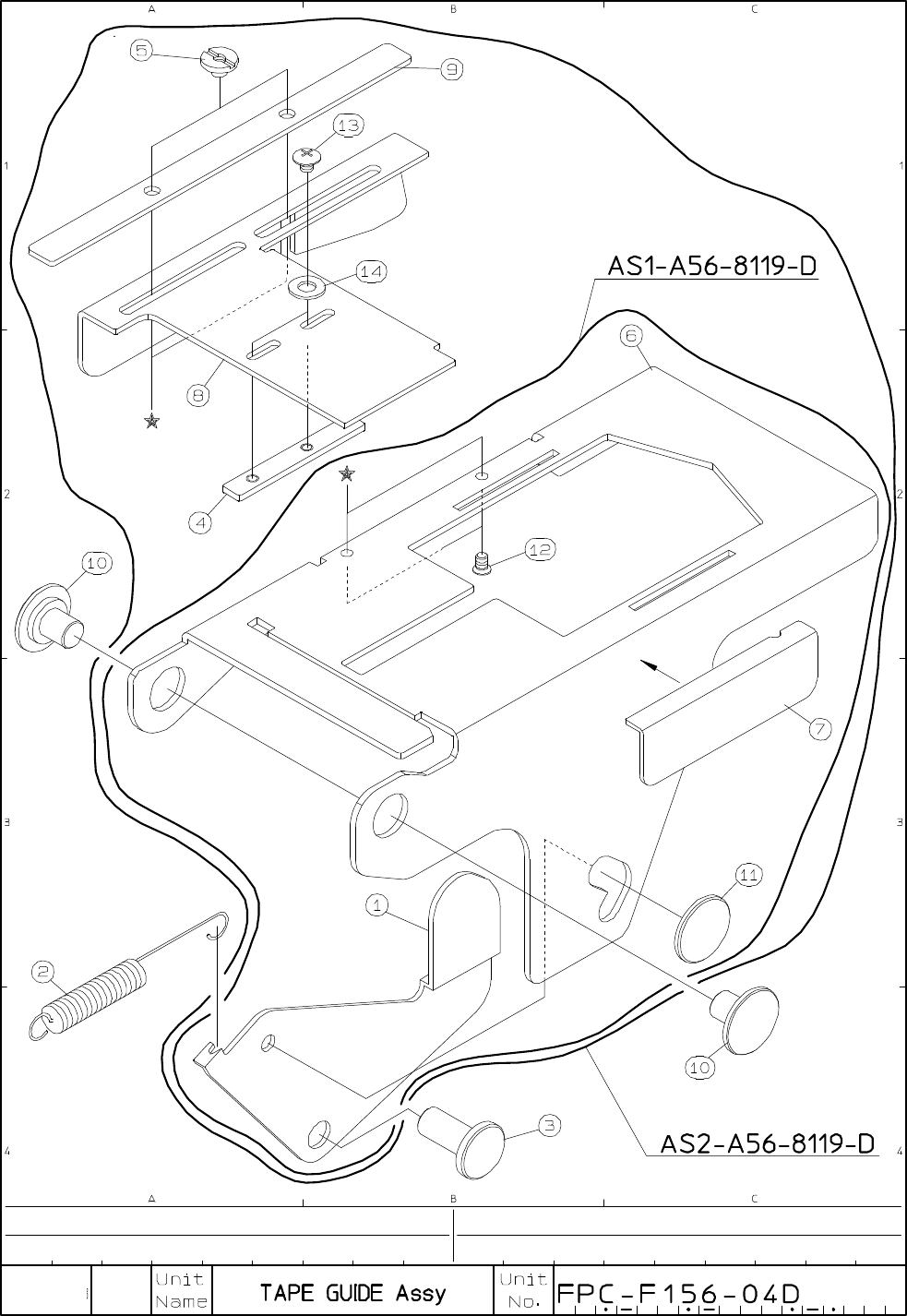

F1-56 (E type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-010 HOLD LEVER ASSY 1 AS-A24-8190-C
LG4-M9A3A-003 CLAMP LEVER ASSY 1 AS10-A24-8191-B
1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
3 LG4-M1A3A-001 HINGE PIN 1 1 FTA-A08-8191-1C
4 LG4-M1A3B-000 HINGE PIN 2 1 FTA-A08-8192-1
5 LG4-M1A36-000 ARM 1 FTA-A08-8193
6 LG4-M1A33-000 LINK PLATE 1 FTA-A08-8194
7 LG4-M1A3L-000 CLANK ARM AXIS PIN 1 FTA-A08-8195
8 LG4-M1A37-000 ADJUST CLAMP PIN 1 FTA-A08-8196
9 LG4-M1A3K-001 CLAMP LEVER AXIS PIN 1 FTA-A08-8197-B
10 LG4-M6A31-010 HOLD LEVER 1 FTA-A24-8190-C
11 LG4-M6A3B-001 CLAMP LEVER 1 FTA-A24-8191-B
12 LG4-M9A3D-000 STUD 1 FTA-A56-8191
13 LG4-M6A3M-000 SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14 LG4-M6A3C-001 CLANK ARM 1 FTA-A24-8192-B
15 LG4-M6A32-000 LINK PIN T 1 FTA-A24-8198
16 LG4-M6A39-000 LINK PIN U 1 FTA-A24-8199
17 K87-M111T-000 SCREW,SET 1 3MY-3-F
18 K87-M111R-000 SCREW,SET 2 3MY-5-F
19 K87-M21BN-000 SCREW NUT 1 3MH-P
20 K87-M21BM-000 SPRING LOCK WASHER 1 3MU-P
21
22
23
24
25
26
27
28
29
30
