I･pulse F1 Series F1-12 (F type) P 7 No. Code No. Parts Name Q'ty Parts No. 1 LG4-M4AA1-002 CONTROL BOARD 1 FTA-A12-8151-FCB 2 LG4-M1A6R-010 CONTROL BOARD COLLAR 3 FTA-A08-8152-B 3 LG4-M1A6S-001 CONTROL BOARD COVER …

100%1 / 1226
4F-13
I･pulse　 F1　Series
F1-12 (F type)
P 7

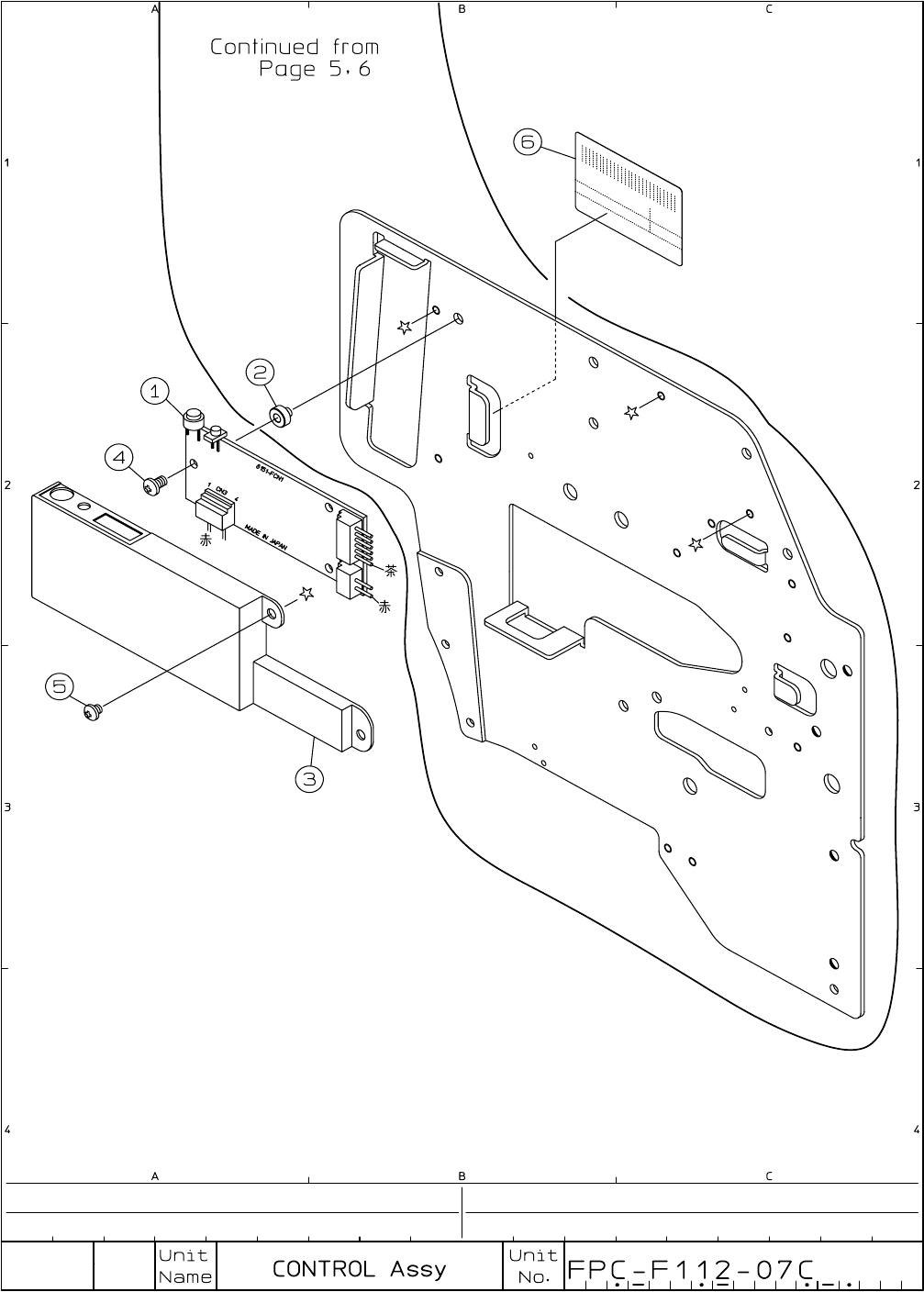

No. Code No. Parts Name Q'ty Parts No.
1 LG4-M4AA1-002
CONTROL BOARD 1
FTA-A12-8151-FCB
2
LG4-M1A6R-010
CONTROL BOARD COLLAR 3
FTA-A08-8152-B
3
LG4-M1A6S-001 CONTROL BOARD COVER
1
FTA-A08-8153-B
4 K87-M111W-000 SCREW,PAN HEAD+ 3
3MC-5-P
5
K87-M111N-000
SCREW,PAN HEAD+ 3
3MC-3-P
6
LG4-M4AC1-000
SERIAL NO. STICKER 1
FTA-A12-8150-SNS
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
4F-15
