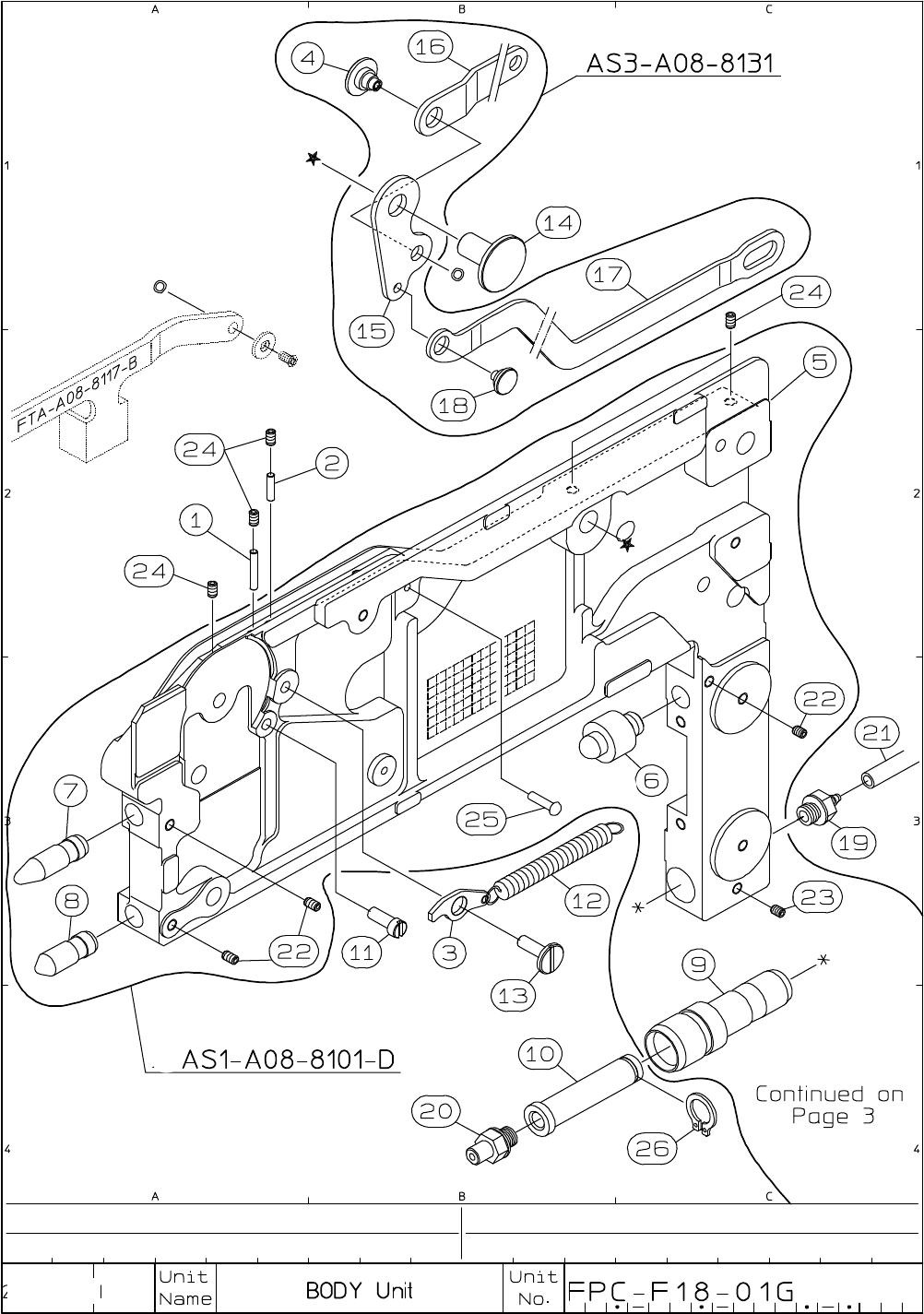

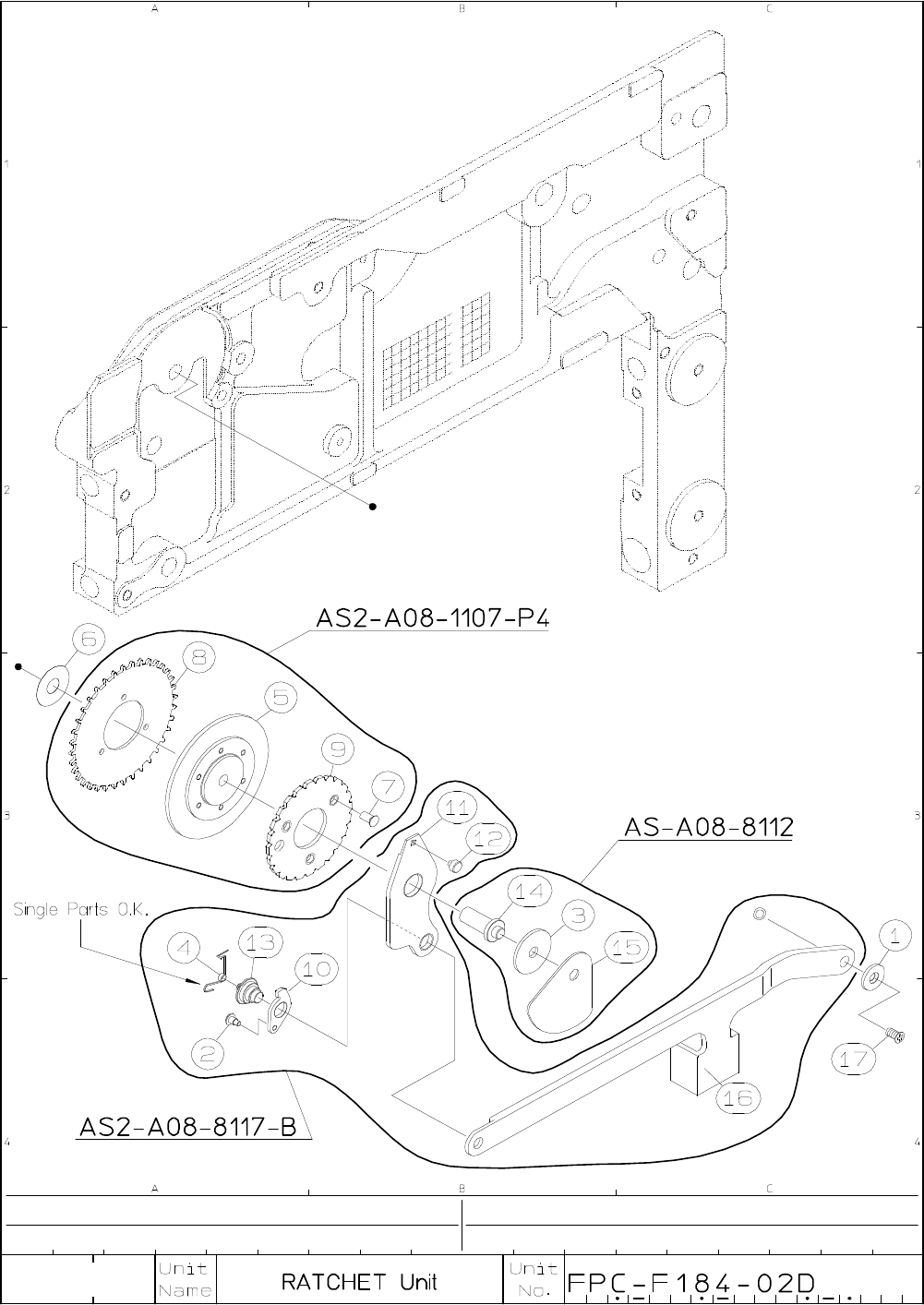

I･pulse　 F1　Series
F1-84 (F type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A10-040 BODY ASSY 1 AS -A08-8101-D
LG4-M1A10-050 BODY ASSY 1 AS1-A08-8101-D
LG4-M1A1M-011 MAIN LEVER ASSY 1 AS3-A08-8131
1 K87-M111D-000 PUSH PIN 1 CTF-M08- 25
2 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
3 K87-M111H-200 BACK STOPPER 1 FTA-A08-1114
4 KW1-M114E-000 ARM AXIS PIN 1 FTA-A08-1134
5 LG4-M1A11-030 BODY 1 FTA-A08-8101-D
LG4-M1A12-500 MAIN GUIDE PIN 1 FTA-E08-8502
LG4-M1A12-510 MAIN GUIDE PIN 1 FTA-E08-8502-B
LG4-M1A13-500 LOCATE PIN R 1 FTA-E08-8503
LG4-M1A13-510 LOCATE PIN R 1 FTA-E08-8503-B
LG4-M1A14-500 LOCATE PIN F 1 FTA-E08-8504
LG4-M1A14-510 LOCATE PIN F 1 FTA-E08-8504-B
9 LG4-M1A15-000 PLUG HOLDER GUIDE 1 FTA-A08-8105
10 LG4-M1A16-000 PLUG HOLDER 1 FTA-A08-8106
11 LG4-M1A17-000 STOPPER PIN 1 FTA-A08-8113
12 LG4-M1A19-001 BACK STOPPER SPRING 1 FTA-A12-6132-510
13 LG4-M1A18-000 BACK STOPPER AXIS 1 FTA-A08-8115
14 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
15 LG4-M1A1N-000 MAIN LEVER 1 FTA-A08-8131
16 LG4-M1A1P-000 ARM 1 FTA-A08-8135
17 LG4-M1A1R-020 SUB ARM 1 FTA-A08-8138-C
18 LG4-M1A1S-010 SUB ARM GUIDE PIN 1 FTA-A08-8139-B
19 K87-M1186-000 BARB CONNECTOR 1 BF3BU
20 LG4-M1AB2-000 PLUG 1 MA-MC05PM
21 LG4-M1ABA-010 AIR HOSE 1 U3B-157
22 K87-M23B3-000 SCREW,SET 3 3MY-5
23 K87-M111X-000 SCREW,SET 1 3MY-4-F
24 K87-M111R-000 SCREW,SET 5 3MY-5-F
25 LG4-M1AD1-000 CIRCULAR RIVET 1 2-8
26 LG4-M1AD2-000 CIRCLIP C 1 STW-7
27
28
※1…F1-84-40556F～
※1 7
※1 8
※1
※1 6
