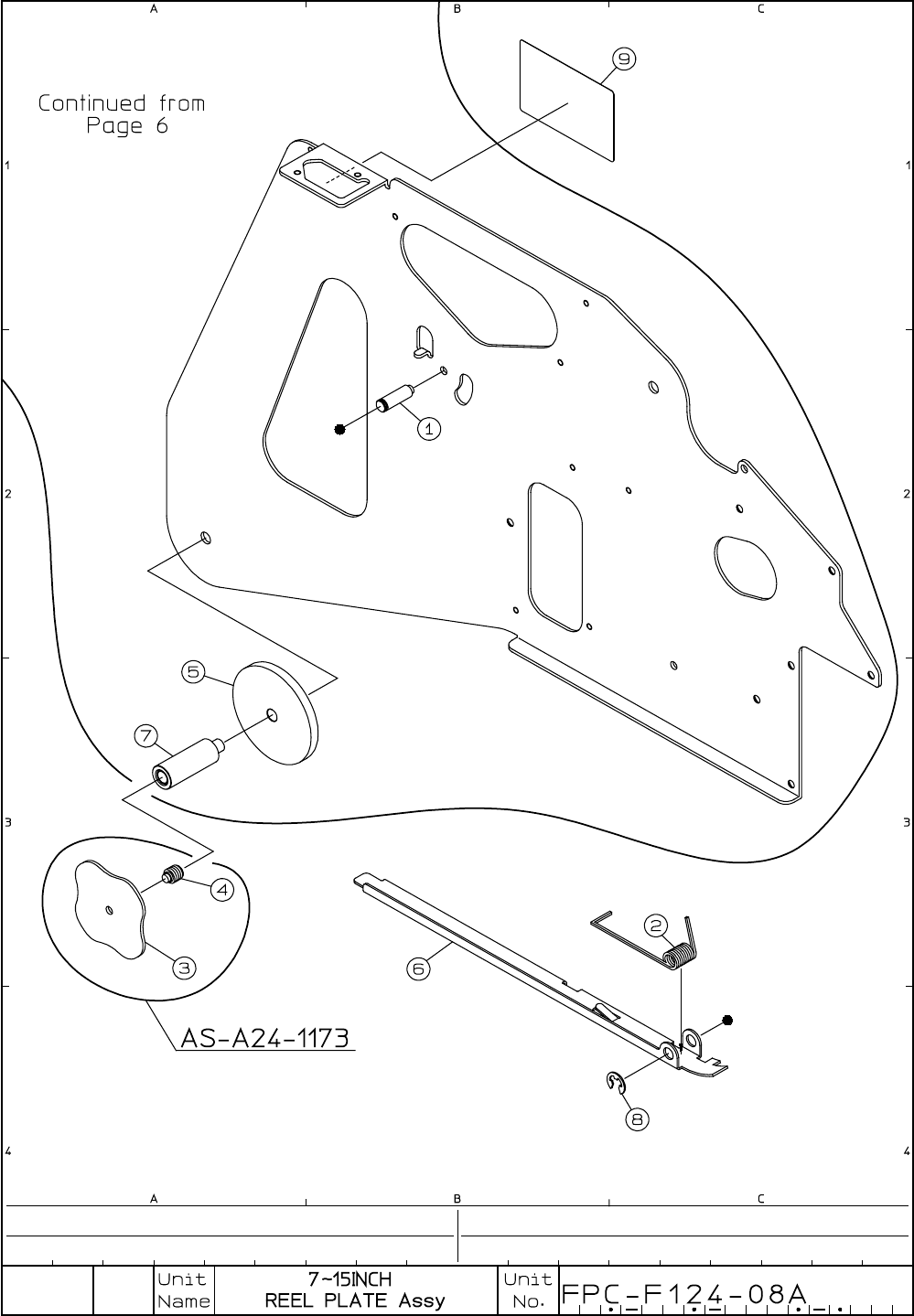

I･pulse F1 Series F1-24(B type) P 8 No. Code No. Parts Name Q'ty Parts No. KW1-M456N-000 REEL COVER ASSY 1 AS-A24-1173 1 LG4-M4A92-000 REEL TENTION AXIS 1 FTA-A12-8182 2 LG4-M4A9B-000 COIL SPRING 1 FTA-A12-8183-B 3 …
6B-15
I･pulse F1 Series
F1-24(B type)
P 8
No. Code No. Parts Name Q'ty Parts No.
KW1-M456N-000 REEL COVER ASSY
1
AS-A24-1173
1
LG4-M4A92-000
REEL TENTION AXIS 1 FTA-A12-8182
2
LG4-M4A9B-000 COIL SPRING
1 FTA-A12-8183-B
3 KW1-M456P-000 COVER 1 FTA-A24-1173
4 KW1-M456R-000 SCREW 1 FTA-A24-1173-1B
5 KW1-M456U-000 REEL FLANGE 1 FTA-A24-1178-B
6
LG4-M6A9A-000
REEL GUIDE ARM 1 FTA-A24-8169
7
LG4-M6A65-000
REEL AXIS 1 FTA-A24-8172
8
LG4-M4ADF-000 CIRCLIP E
1 E-50
9
LG4-M6AC1-000
SERIAL NO. STICKER 1
FTA-A24-8150-SNS
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
