I･pulse　 F1　Series

F1-84 (F type)

P 2

No. Code No. Parts Name Q'ty Parts No.

KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4

LG4-M1A2A-002 RACKING LEVER ASSY 1 AS2-A08-8117-B

LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8112

1

K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B

2

K87-M112F-000 SPRING HOOK PIN 1 CTF-A08- 211-B2

3

K87-M112M-100 FLANGE A 1 CTF-A08- 712-1

4 LG4-M1A2F-000 SCREW COIL SPRING 1

FTA-A08-8111-1

5

K87-M1121-000 METAL 1 FTA-A08-1103

※1 6 KW1-M11BS-050

WASHER 1

FTA-A08-1103-005B

7

K87-M1122-000 RIVET 3 FTA-A08-1103-1

8

KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B

9

K87-M1124-000 RATCHET 1 FTA-A08-1107-P4

10

K87-M112G-100 RACKING POLE 1 FTA-A08-1111

11

LG4-M1A2E-000 RACKING LEVER 1 FTA-A08-8108

12

LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109

13

LG4-M1A2C-000 RACKING POLE AXIS 1 FTA-A08-8110

14

LG4-M1A2N-000 RATCHET AXIS 1 FTA-A08-8112

15

LG4-M1A2P-000 FLANGE B 1 FTA-A08-8112-2

16

LG4-M1A2B-000 MAIN ARM 1 FTA-A08-8117-B

17

K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB

18

19

20

21

22

23

24

25

26

27

28

29

※1…F1-84-039856F～

I･pulse　 F1　Series

F1-84 (F type)

P 3

Code No. Parts Name Q'ty Parts No.

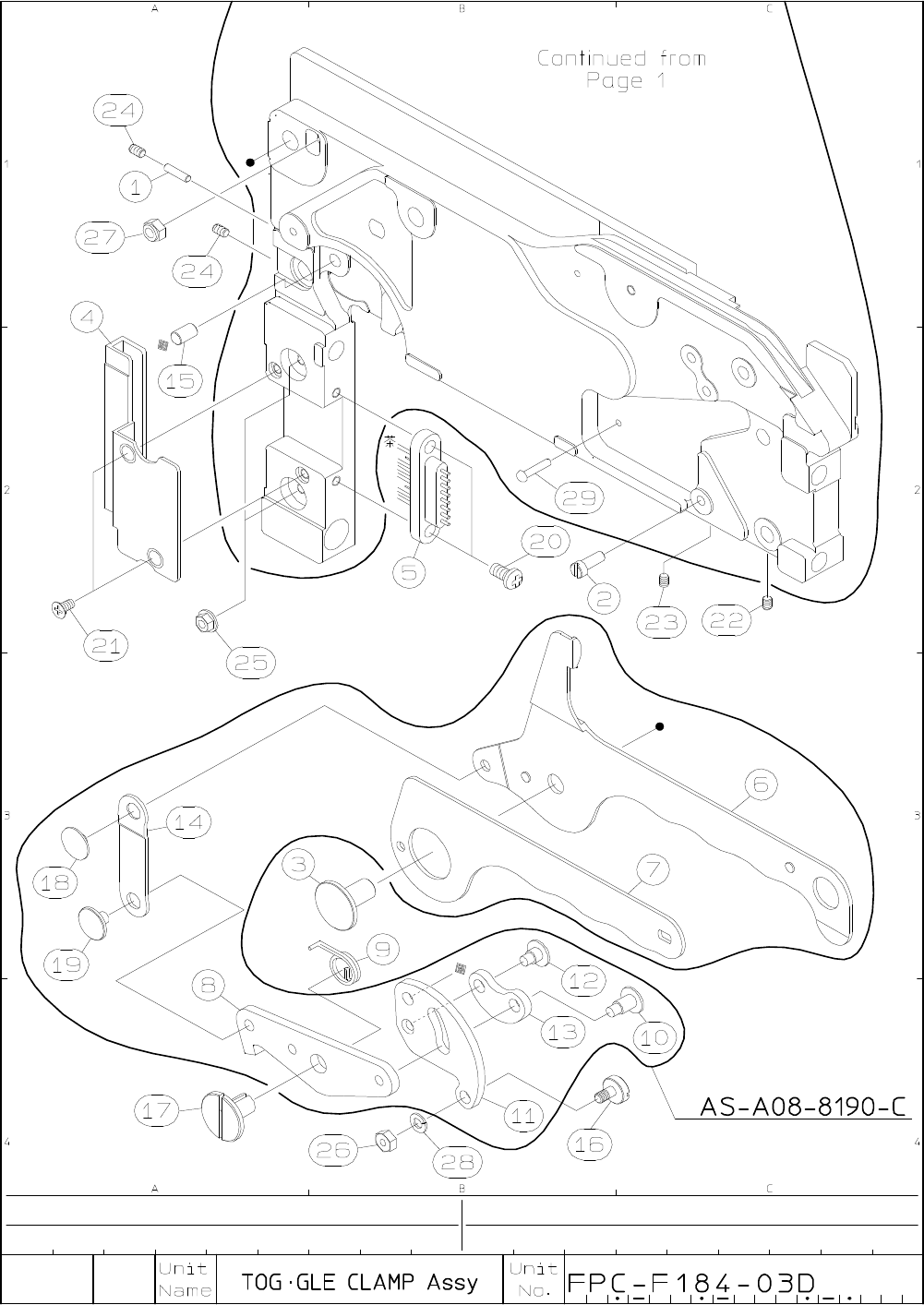

※1 LG4-M1A30-020

HOLD LEVER ASSY 1

AS -A08-8190-C

1 K87-M111G-100 PUSH PIN 1

CTF-M08- 325

2 LG4-M1A17-000 STOPPER PIN 1 FTA-A08-8113

3 LG4-M1A1K-000 LEVER AXIS PIN 1

FTA-A08-8130-B

4 LG4-M1A1A-001

COVER PLATE

1

FTA-A08-8149-C

5

LG4-M1AA2-001

SP. CONNECTOR ASSY

1

FTA-A08-8151-5B

※1 6 LG4-M1A31-010

HOLD LEVER M

1 FTA-A08-8190-C

7 LG4-M1A32-000

HOLD LEVER S

1 FTA-A08-8190-1B

8 LG4-M1A34-001

CLAMP LEVER

1 FTA-A08-8191-C

9 LG4-M1A3M-000 SCREW COIL SPRING 1

FTA-A08-8191-SCSp

10 LG4-M1A3A-000

HINGE PIN 1

1

FTA-A08-8191-1

11

LG4-M1A35-001

CLANK ARM

1 FTA-A08-8192-B

12 LG4-M1A3B-000

HINGE PIN 2

1

FTA-A08-8192-1

13 LG4-M1A36-000

ARM

1

FTA-A08-8193

14

LG4-M1A33-000

LINK PLATE

1

FTA-A08-8194

15 LG4-M1A3L-000

CLANK ARM AXIS PIN

1

FTA-A08-8195

16 LG4-M1A37-010 ADJUST CLAMP PIN 1

FTA-A08-8196

17 LG4-M1A3K-001

CLAMP LEVER AXIS PIN

1 FTA-A08-8197-B

18

LG4-M1A38-000

LINK PIN T

1

FTA-A08-8198

19 LG4-M1A39-000

LINK PIN U

1

FTA-A08-8199

20 LG4-M1ADC-000

SCREW,PAN HEAD+ 2 3MC-7-P

21 K87-M111S-000

SCREW,FLAT HEAD+

2

3MK-6-P

22 K87-M111T-000 SCREW,SET 1 3MY-3-F

23 K87-M111X-000 SCREW,SET 1 3MY-4-F

24 K87-M111R-000 SCREW,SET 2

3MY-5-F

25 K87-M111U-000

SCREW FLANGE NUT

2

3MH-FS

26 K87-M21BN-000

SCREW NUT

1

3MH-P

※1 27 LG4-M1ADH-000

U-NUT

1

3MH-U-P

28 K87-M21BM-000

SPRING LOCK WASHER

1

3MU-P

29 K87-M1115-000

CIRCULAR RIVET

1

2-10

30

31

32

※1…F1-84-039856F～
