2F-5
I･pulse F1 Series
F1-82-1005 (F type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1320-000 SPROCKET ASSY 1 AS2-A08-1107-P2
LG4-M1A2A-001 RACKING LEVER ASSY 1 AS1-A08-8117-B
LG4-M1A2M-000 RATCHET AXIS ASSY 1 AS -A08-8112
1 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2 K87-M112F-000 SPRING HOOK PIN 1 CTF-A08- 211-B2
3 K87-M112M-100 FLANGE A 1 CTF-A08- 712-1
4 LG4-M1A2F-000 SCREW COIL SPRING 1 CTF-M08- 511-1
5 K87-M1121-000 METAL 1 FTA-A08-1103
6 K87-M1122-000 RIVET 3 FTA-A08-1103-1
7 KW1-M1123-000 SPROCKET 1 FTA-A08-1104-B
8 K87-M1324-000 RATCHET 1 FTA-A08-1107-P2
9 K87-M112G-100 RACKING POLE 1 FTA-A08-1111
10 LG4-M1A2E-000 RACKING LEVER 1 FTA-A08-8108
11 LG4-M1A2D-000 SHUTTER DRIVE PIN 1 FTA-A08-8109
12 LG4-M1A2C-000 RACKING POLE AXIS 1 FTA-A08-8110
13 LG4-M1A2N-000 RATCHET AXIS 1 FTA-A08-8112
14 LG4-M1A2P-000 FLANGE B 1 FTA-A08-8112-2
15 LG4-M1A2B-000 MAIN ARM 1 FTA-A08-8117-B
16 K87-M11BF-000 SCREW,FLAT HEAD 1 P2MK-4-IB
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
2F-4
2F-5
I･pulse F1 Series
F1-82-1005 (F type)
P 3
No. Code No. Parts Name Q'ty Parts No.

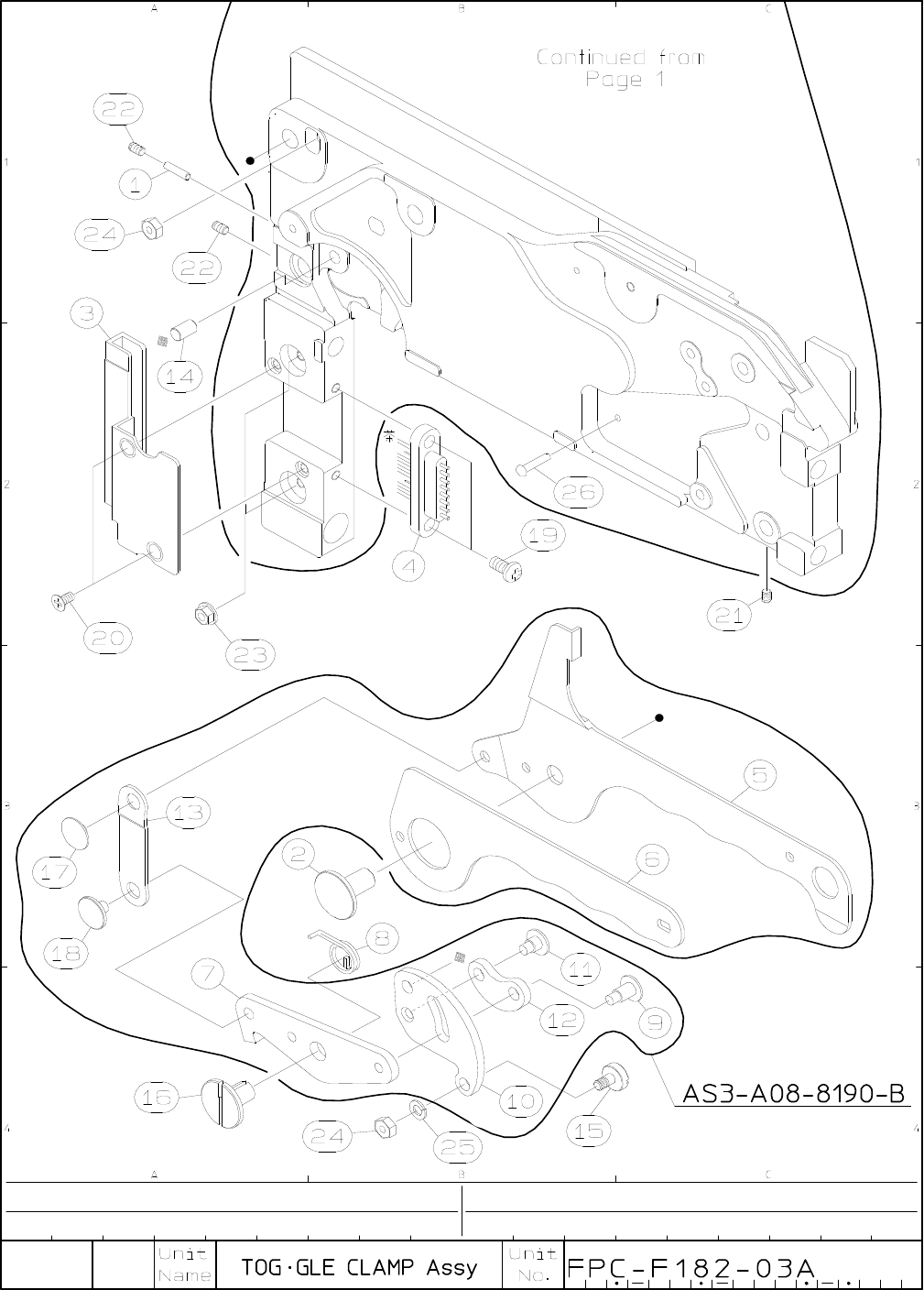

LG4-M1A30-012 HOLD LEVER ASSY 1 AS3-A08-8190-B
1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
3 LG4-M1A1A-001 COVER PLATE 1 FTA-A08-8149-C
4 LG4-M1AA2-001 SP. CONNECTOR ASSY 1 FTA-A08-8151-5B
5 LG4-M1A31-000 HOLD LEVER M 1 FTA-A08-8190-B
6 LG4-M1A32-000 HOLD LEVER S 1 FTA-A08-8190-1B
7 LG4-M1A34-001 CLAMP LEVER 1 FTA-A08-8191-C
8 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
9 LG4-M1A3A-000 HINGE PIN 1 1 FTA-A08-8191-1
10 LG4-M1A35-001 CLANK ARM 1 FTA-A08-8192-B
11 LG4-M1A3B-000 HINGE PIN 2 1 FTA-A08-8192-1
12 LG4-M1A36-000 ARM 1 FTA-A08-8193
13 LG4-M1A33-000 LINK PLATE 1 FTA-A08-8194
14 LG4-M1A3L-000 CLANK ARM AXIS PIN 1 FTA-A08-8195
15 LG4-M1A37-010 ADJUST CLAMP PIN 1 FTA-A08-8196
16 LG4-M1A3K-001 CLAMP LEVER AXIS PIN 1 FTA-A08-8197-B
17 LG4-M1A38-000 LINK PIN T 1 FTA-A08-8198
18 LG4-M1A39-000 LINK PIN U 1 FTA-A08-8199
19 LG4-M1ADC-000 SCREW,PAN HEAD+ 2 3MC-7-P
20 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
21 K87-M111T-000 SCREW,SET 1 3MY-3-F
22 K87-M111R-000 SCREW,SET 2 3MY-5-F
23 K87-M111U-000 SCREW FLANGE NUT 2 3MH-FS
24 K87-M21BN-000 SCREW NUT 2 3MH
25 K87-M21BM-000 SPRING LOCK WASHER 1 3MU
26 K87-M1115-000 CIRCULAR RIVET 1 φ2-10
27
28
29
30
31
32
33
2F-6
