F1FeederPartsList.pdf - 第334页
4C-5
I･pulse F1 Series
F1-12(C type)
P 2
No. Code No. Parts Name Q'ty Parts No.
KW1-M1120-000 SPROCKET ASSY 1 AS2-A08-1107-P4
LG4-M4A2A-000
RACKING LEVER ASSY 1 AS-A12-8117
LG4-M4A2M-000 RATCHET AXIS ASSY
1
AS-A12-8112
1 K87-M111C-000 PLANE WASHER 1
CTF-A08- 16-B
2
LG4-M4A2E-000
RACKING LEVER 1
FTA-A12-8108
3 K87-M112F-000 SPRING HOOK PIN 1
CTF-A08- 211-B2
4 K87-M112M-100 FLANGE A 1
CTF-A08- 712-1
5 KW1-M452D-000 SCREW COIL SPRING 1
CTF-M08- 511-1
6 K87-M1121-000 METAL 1
FTA-A08-1103
7 K87-M1122-000 RIVET 3
FTA-A08-1103-1
8 KW1-M1123-000 SPROCKET 1
FTA-A08-1104-B
9 K87-M1124-000 RATCHET 1
FTA-A08-1107-P4
10 K87-M112G-100 RACKING POLE 1
FTA-A08-1111
11
LG4-M1A2D-000 SHUTTER DRIVE PIN
1
FTA-A08-8109
12
LG4-M1A2C-000 RACKING POLE AXIS
1
FTA-A08-8110
13
LG4-M4A2N-000 RATCHET AXIS
1
FTA-A12-8112
14
LG4-M4A2P-000 FLANGE B
1
FTA-A12-8112-2
15
LG4-M4A2B-000 MAIN ARM
1
FTA-A12-8117
16
LG4-M4A1R-000 SUB ARM
1
FTA-A12-8138
17 K87-M11BF-000
SCREW,FLAT HEAD
1
P2MK-4-IB
18
19
20
21
22
23
24
25
26
27
28
29
30
31
4C-4
4C-5
I･pulse F1 Series
F1-12(C type)
P 3
Code No. Parts Name Q'ty Parts No.

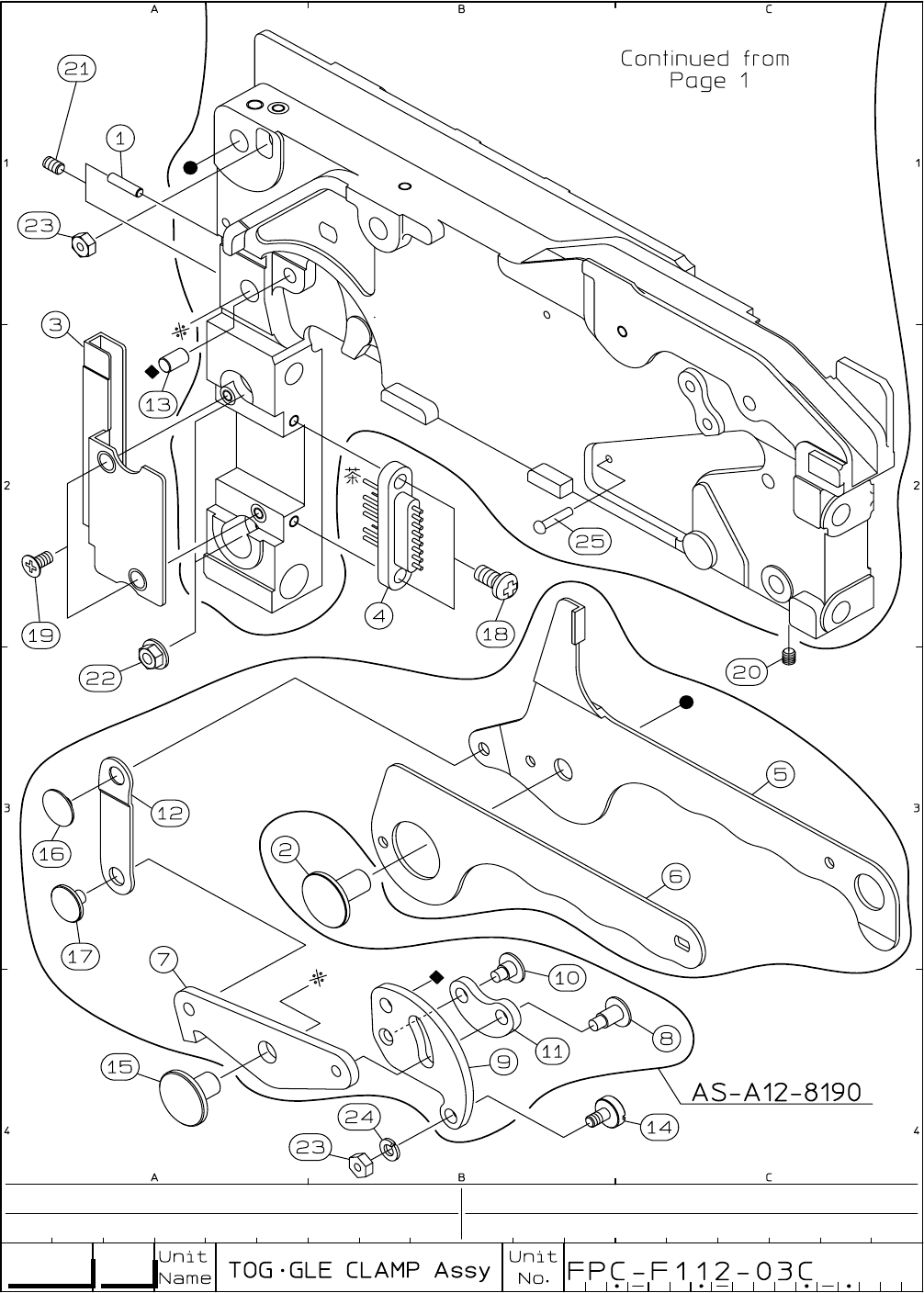

LG4-M4A30-000
HOLD LEVER ASSY 1 AS-A12-8190
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A1A-001
COVER PLATE 1
FTA-A08-8149-C
4
LG4-M1AA2-000
SPRING CONNECTOR ASSY
1
FTA-A08-8151-5
5
LG4-M4A31-000 HOLD LEVER M
1 FTA-A12-8190
6
LG4-M1A32-000 HOLD LEVER S
1 FTA-A08-8190-1B
7
LG4-M4A34-000 CLAMP LEVER
1 FTA-A12-8191
8
LG4-M1A3A-000 HINGE PIN 1
1
FTA-A08-8191-1
9
LG4-M1A35-000 CLANK ARM
1 FTA-A08-8192
10
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
11
LG4-M1A36-000 ARM
1
FTA-A08-8193
12
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
13
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
14
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
15
LG4-M1A3K-000 CLAMP LEVER AXIS PIN
1 FTA-A08-8197
16
LG4-M1A38-000 LINK PIN T
1
FTA-A08-8198
17
LG4-M1A39-000 LINK PIN U
1
FTA-A08-8199
18 LG4-M1ADC-000 SCREW,PAN HEAD+
2
3MC-7-P
19 K87-M111S-000
SCREW,FLAT HEAD+
2
3MK-6-P
20 K87-M111T-000 SCREW,SET 1 3MY-3-F
21 K87-M111R-000 SCREW,SET 2
3MY-5-F
22 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
23 K87-M21BN-000
SCREW NUT
2
3MH
24 K87-M21BM-000 SPRING LOCK WASHER 1
3MU
25 K87-M1115-000
CIRCULAR RIVET
1
φ2-10
26
27
28
29
30
31
32
33
4C-6
