I･pulse F1 Series F1-82-0603 (E type) P 3 No. Code No. Parts Name Q'ty Parts No. LG4-M1A30-011 HOLD LEVER ASSY 1 AS2-A08-8190-B 1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325 2 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B…
1E-5
I･pulse F1 Series
F1-82-0603 (E type)
P 3
No. Code No. Parts Name Q'ty Parts No.

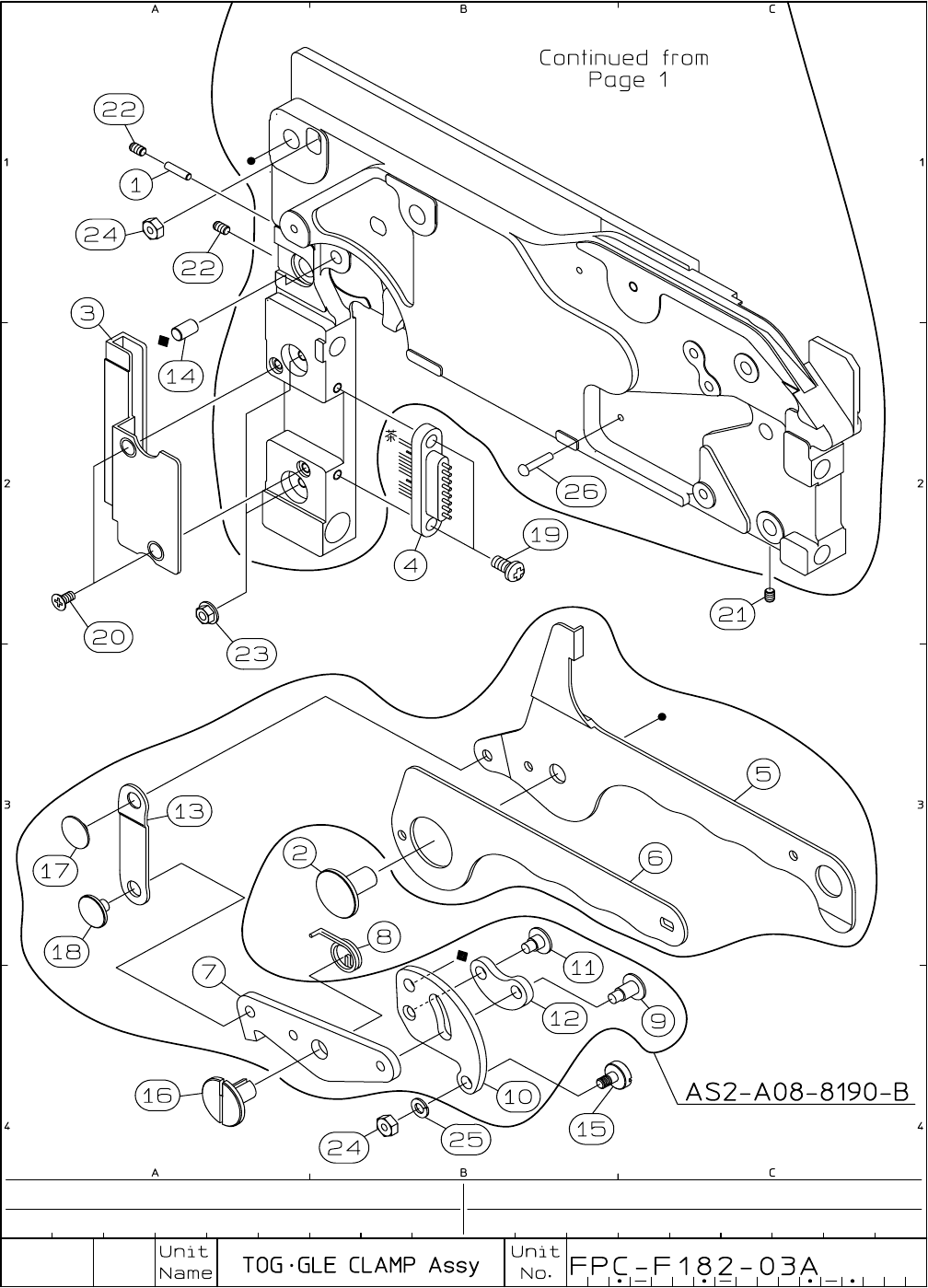

LG4-M1A30-011
HOLD LEVER ASSY 1
AS2-A08-8190-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2 LG4-M1A1K-000 LEVER AXIS PIN 1
FTA-A08-8130-B
3 LG4-M1A1A-001
COVER PLATE
1
FTA-A08-8149-C
4 LG4-M1AA2-000
SPRING CONNECTOR ASSY
1
FTA-A08-8151-5
5 LG4-M1A31-000
HOLD LEVER M
1 FTA-A08-8190-B
6 LG4-M1A32-000
HOLD LEVER S
1 FTA-A08-8190-1B
7 LG4-M1A34-001
CLAMP LEVER
1 FTA-A08-8191-C
8 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
9 LG4-M1A3A-000
HINGE PIN 1
1
FTA-A08-8191-1
10 LG4-M1A35-000
CLANK ARM
1 FTA-A08-8192
11 LG4-M1A3B-000
HINGE PIN 2
1
FTA-A08-8192-1
12 LG4-M1A36-000
ARM
1
FTA-A08-8193
13 LG4-M1A33-000
LINK PLATE
1
FTA-A08-8194
14
LG4-M1A3L-000
CLANK ARM AXIS PIN
1
FTA-A08-8195
15 LG4-M1A37-010 ADJUST CLAMP PIN 1
FTA-A08-8196
16 LG4-M1A3K-001
CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
17 LG4-M1A38-000
LINK PIN T
1
FTA-A08-8198
18
LG4-M1A39-000
LINK PIN U
1
FTA-A08-8199
19 LG4-M1ADC-000
SCREW,PAN HEAD+ 2 3MC-7-P
20 K87-M111S-000
SCREW,FLAT HEAD+
2
3MK-6-P
21 K87-M111T-000 SCREW,SET 1 3MY-3-F
22 K87-M111R-000 SCREW,SET 2
3MY-5-F
23 K87-M111U-000
SCREW FLANGE NUT
2
3MH-FS
24 K87-M21BN-000
SCREW NUT
2
3MH
25 K87-M21BM-000
SPRING LOCK WASHER
1
3MU
26 K87-M1115-000
CIRCULAR RIVET
1
φ2-10
27
28
29
30
31
32
33
