F1FeederPartsList.pdf - 第244页
3E-13
I･pulse F1 Series
F1-84 (E type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A87-000
TENSION LEVER ASSY
1 AS -A08-8160-B
LG4-M1A8E-000
IDLER ROLLER ASSY
1 AS -A08-8162
LG4-M1A86-000
I.ROLLER ALL ASSY
1 AS1-A08-8162
LG4-M1A82-012
INDEXING LEVER ASSY
1 AS3-A08-8164
LG4-M1A8D-000
DRIVE ROLLER ASSY
1 AS -A08-8170
LG4-M1A81-003 D.ROLLER ALL ASSY 1 AS1-A08-8170
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
2 CTF-M08- 76-B
3 KW1-M11A3-001
LOWER GUIDE PLATE,L
1 FTA-A08-1179-C
4 LG4-M1A62-000
METAL SHAFT
1 FTA-A08-8155
5 LG4-M1A8C-000
LEVER METAL
1 FTA-A08-8158-B
6 LG4-M1A63-010
LEVER AXIS PIN
1 FTA-A08-8159-B
7 LG4-M1A64-010
WASHER
1 FTA-A08-8159-1C
8 LG4-M1A65-010
TENSION LEVER
1 FTA-A08-8160-B
9 LG4-M4A8B-000
TENSION LEVER RE.SP.
1 FTA-A12-8160-700
10 LG4-M1A66-010
ROLLER AXIS
1 FTA-A08-8163-B
11 LG4-M1A83-000
INDEXING LEVER
1 FTA-A08-8164
12 LG4-M1A8A-000
INDEXING LEV.RE.SP.
1 FTA-A08-8164-440
13 LG4-M1A84-010
ARM STUD
1 FTA-A08-8166-B
14 LG4-M1A85-000
ROLLER
1 FTA-A08-8167
15 LG4-M1A6M-000
MIDDLE GUIDE PLATE T
1 FTA-A08-8177-C
16 LG4-M1A6P-011
LOWER GUIDE PLATE,R
1 FTA-A08-8178-C
17 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
18
K87-M11BB-000
SCREW,FLAT HEAD
2 P2.6MK-5-IB
19 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
20
K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
21
K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
22
23
24
25
26
27
28
3E-12
3E-13
I･pulse F1 Series
F1-84 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.

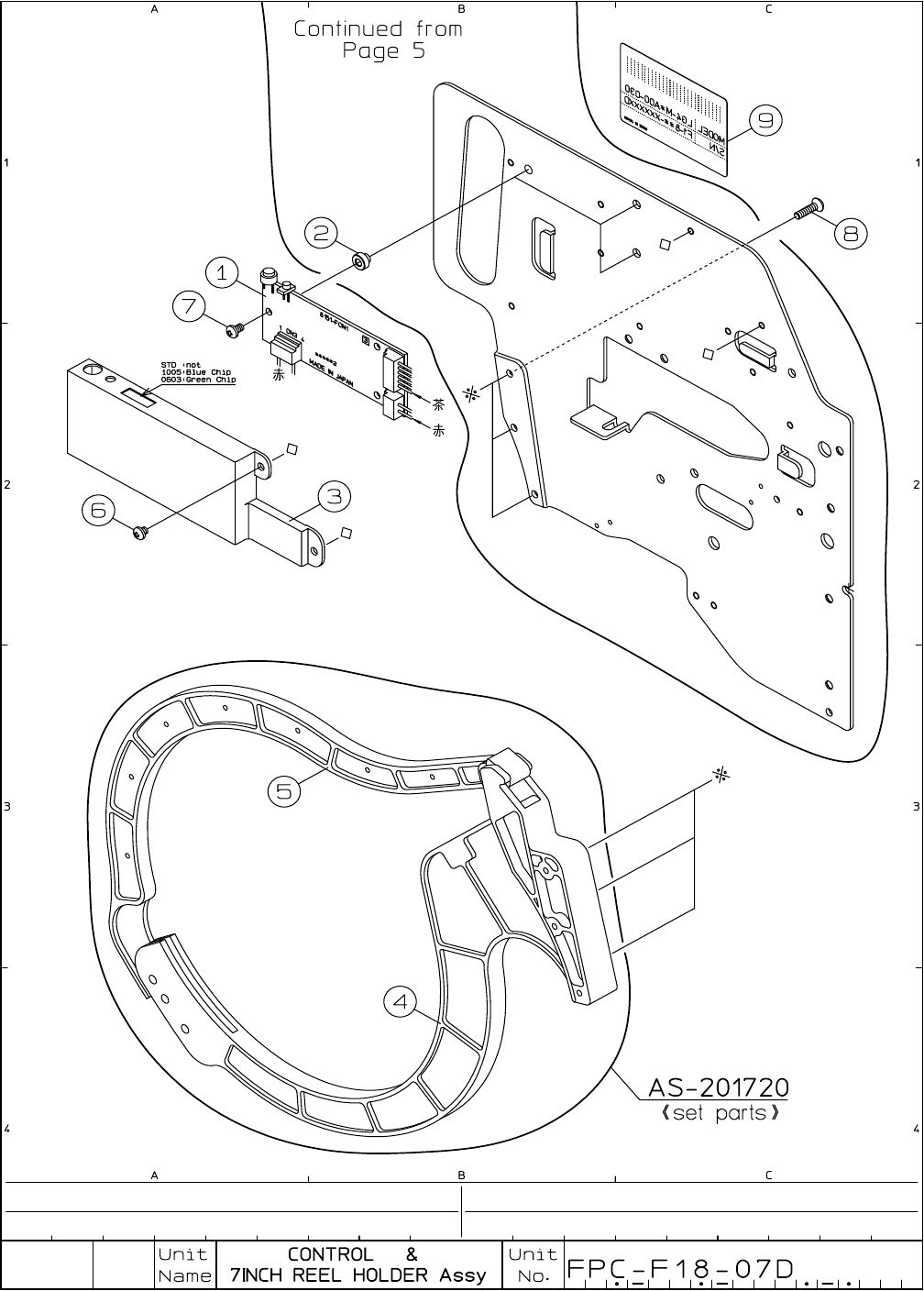

LG4-M1A90-000 REEL HOLDER ASSY 1 AS -201720
1 LG4-M1AA1-002 CONTROL BOARD 1 FTA-A08-8151-FCB
2 LG4-M1A6R-010
CONTROL BOARD COLLAR 3 FTA-A08-8152-B
3 LG4-M1A6S-001
CONTROL BOARD COVER 1 FTA-A08-8153-B
4 LG4-M1A91-000 REEL HOLDER 1 201720
5 LG4-M1A92-000 CLAMP ARM 1 201721
6 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
7 K87-M111W-000 SCREW,PAN HEAD+ 3 3MC-5-P
8 LG4-M1ADF-000 SCREW,BAIND HEAD+ 3 3M-10-P-P-Bi
9 LG4-M1AC1-000 SERIAL NO.STICKER 1 FTA-A08-8150-SNS
