I･pul se F1/F2 Series F1-84・82-1005・82-1005 (C type～) F2-84・82-1005・82-0603 (A type～) 【OPTION】 No. Code No. Parts Name Q'ty Parts No. SL99M0027-220 15INCH REEL KIT E 1 ASA-A12-8180-F LG4-M4A90-020 REEL PLATE ASSY 1 …
SL99M0027-220

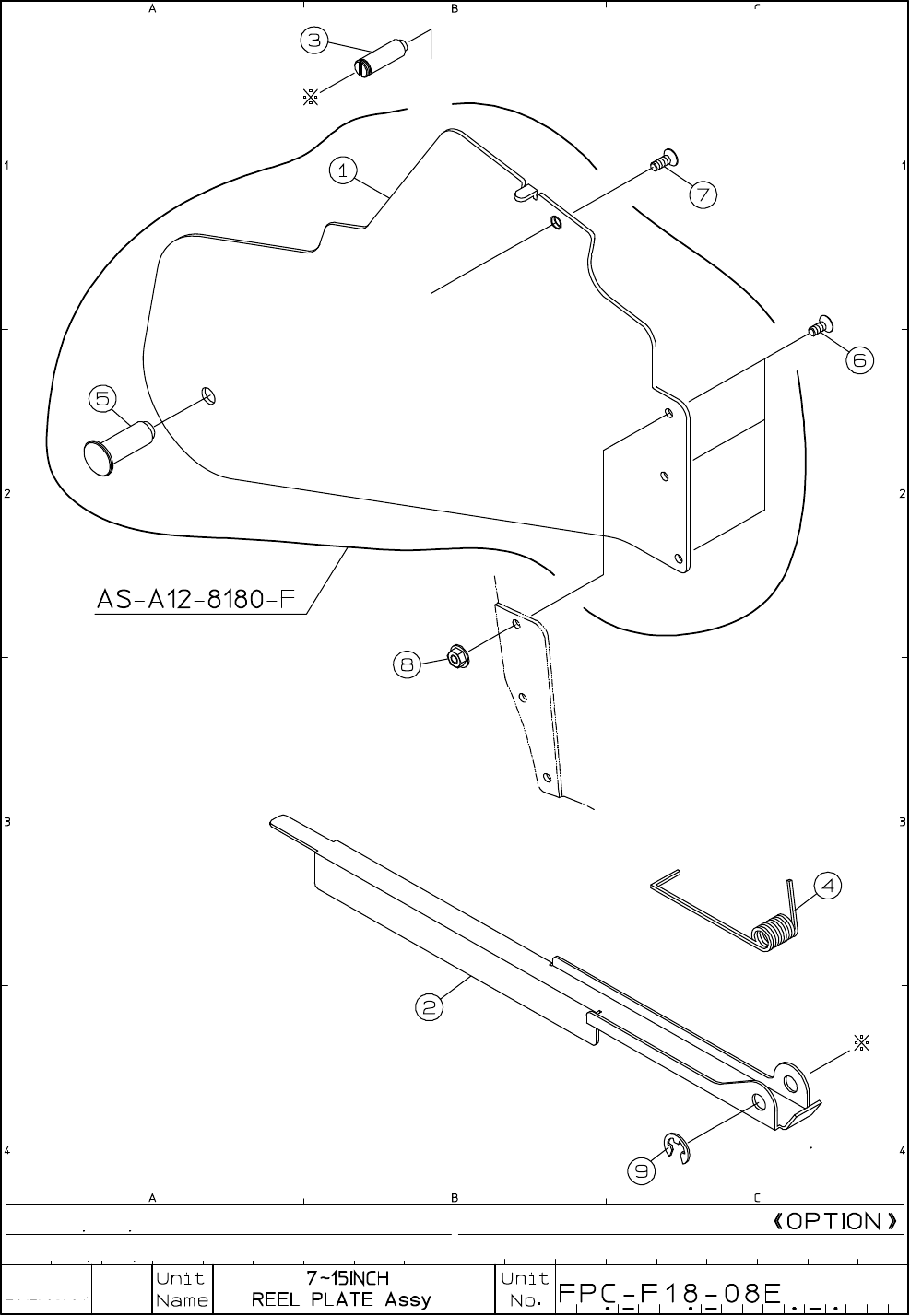

15 INCH REEL KIT E
E
I･pulse F1/F2 Series
F1-84・82-1005・82-1005 (C type～)
F2-84・82-1005・82-0603 (A type～)
【OPTION】
No. Code No. Parts Name Q'ty Parts No.
SL99M0027-220 15INCH REEL KIT E 1 ASA-A12-8180-F
LG4-M4A90-020 REEL PLATE ASSY 1 AS-A12-8180-F
1 LG4-M4A91-020 REEL PLATE 1 FTA-A12-8180-F
2 LG4-M4A9A-003 TENSION LEVER 1 FTA-A12-8181-F
3 LG4-M4A92-011 TENSION AXIS 1 FTA-A12-8182-C
4 LG4-M4A9B-002 COIL SPRING 1 FTA-A12-8183-D
5 LG4-M4A93-020 REEL AXIS 1 FTA-A12-8185-D
6 LG4-M4ADE-000 SCREW,FLAT HEAD+ 3 3MK-7-P
7 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
8 K87-M111U-000 SCREW FLANGE NUT 3 3MH-FS
9 LG4-M4AD4-000 CIRCLIP E 1 E.50
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
F1-84 : 3901C～ F2-84 : 1A～ F2-82M : 21A～
F1-82-1005 : 1071C
～
F2-82-1005 : 1A～
F1-82-0603 : 131C～ F2-82-0603 : 1A～
