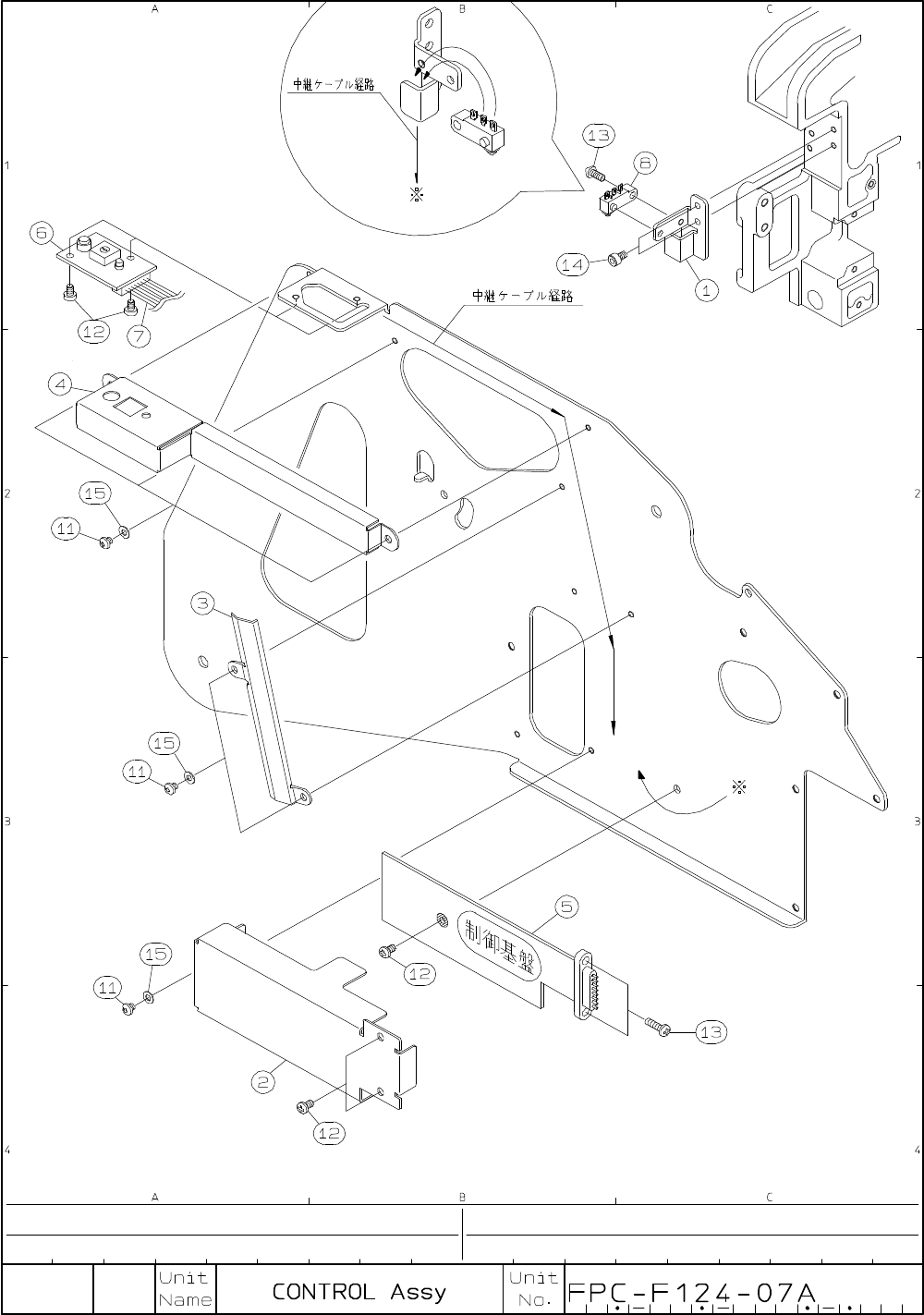

I･pulse F1 Series F1-24 (E type) P 7 No. Code No. Parts Name Q'ty Parts No. 1 LG4-M6A1A-000 MICRO SWITCH BRACKET 1 FTA-A24-8135-B 2 LG4-M6A6B-000 C.B.COVER 1 FTA-A24-8137-B 3 LG4-M6A6C-000 COVER 1 FTA-A24-8138-B 4 L…
I･pulse F1 Series
F1-24 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M6A1A-000 MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2 LG4-M6A6B-000 C.B.COVER 1 FTA-A24-8137-B
3 LG4-M6A6C-000 COVER 1 FTA-A24-8138-B
4 LG4-M6A6D-000 LED,SWITCH COVER 1 FTA-A24-8139-B
5 LG4-M6AA1-001 CONTROL BOARD 1
FTA-A24-8153-FCN1
6 LG4-M6AA2-000 CONTROL BOARD 1 FTA-A24-8154
7 LG4-M6AA4-000 VALVE HARNESS ASSY 1 FTA-A24-8155
8 LG4-M6AA3-000 MICRO SWITCH ASSY 1 FTA-A24-8156
9 K87-M534F-000 SCREW,TRUSS HEAD+ 1 T3M-4-P
10 K87-M23BL-000 SCREW,TRUSS HEAD+ 2 T3M-5-P
11 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
12 K87-M111W-000 SCREW,PAN HEAD+ 5 3MC-5-P
13 LG4-M1ADC-000 SCREW,PAN HEAD+ 3 3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3MV (3V-0.5-8-P)
