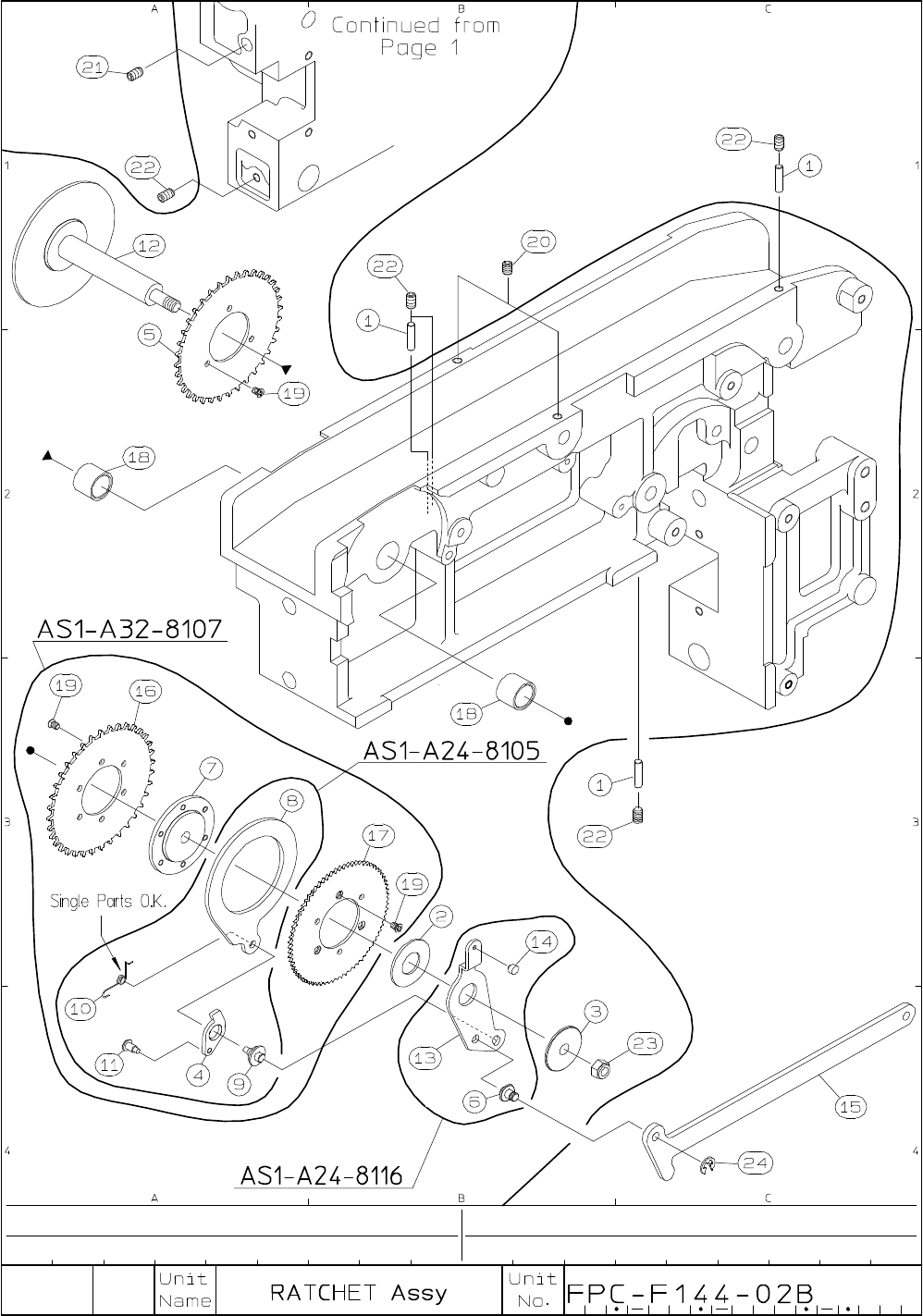

I･pulse　 F1　Series
F1-44 (E type)
P 2
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A27-001 RACKING M.LEVER ASSY 1 AS1-A24-8105
LG4-M7A20-001 SPROCKET ASSY 1 AS1-A32-8107
LG4-M6A2A-001 RACKING SUB LEV. ASSY 1 AS1-A24-8116
1 K87-M111G-100 PUSH PIN 3 CTF-M08- 325
2 LG4-M6A2F-000 THRUST WASHER 1 CTF-A32- 08
3 LG4-M7A2E-000 LEVER METAL 1 FTA-A32-8108
4 K87-M112G-100 RACKING POLE 1 FTA-A08-1111
5 KW1-M4523-000 SPROCKET 1 FTA-A24-1104
6 KW1-M452W-001 STUD 1 FTA-A24-1118-B
7 LG4-M7A21-000 METAL 1 FTA-A32-8103-B
8 LG4-M6A22-000 RACKING MAIN LEVER 1 FTA-A24-8105
9 LG4-M6A25-000 RACKING POLE AXIS 1 FTA-A24-8110
10 LG4-M6A2G-000 SCREW COIL SPRING 1 FTA-A24-8111-1
11 LG4-M6A26-000 SPRING HOOK PIN 1 FTA-A24-8111-2
12 LG4-M8A2N-000 RATCHET AXIS 1 FTA-A44-8112
13 LG4-M6A2B-000 RACKING SUB LEVER 1 FTA-A24-8116
14 LG4-M6A2C-000 SHUTTER DRIVE PIN 1 FTA-A24-8116-1
15 LG4-M6A2D-000 MAIN ARM 1 FTA-A24-8117
16 LG4-M7A23-000 SPROCKET 1 FTA-A32-8104
17 LG4-M7A24-000 RATCHET 1 FTA-A32-8107
18 KW1-M552F-001 BEARING 2 K5B0808
19 K87-M111P-000 SCREW,FLAT HEAD+ 9 P2MK-3
20 K87-M111Y-000 SCREW,SET 2 3MY-4-F
21 K87-M23B3-000 SCREW,SET 1 3MY-5
22 K87-M111R-000 SCREW,SET 5 3MY-5-F
23 K87-M55BL-000 U NUT 1 4MH-U-P
24 K87-M11B9-000 CIRCLIP E 1 E.24
25
26
27
28
