I･pulse F1 Series F1-12(C type) No. Code No. Parts Name Q'ty Parts No. 1 LG4-M4AA1-000 CONTROL BOARD 1 FTA-A12-8151-FCN1 2 LG4-M1A6R-000 CONTROL BOARD COLLAR 3 FTA-A08-8152 3 LG4-M1A6S-001 CONTROL BOARD COVER 1 FTA-…
4-13
I･pulse F1 Series
F1-12(C type)

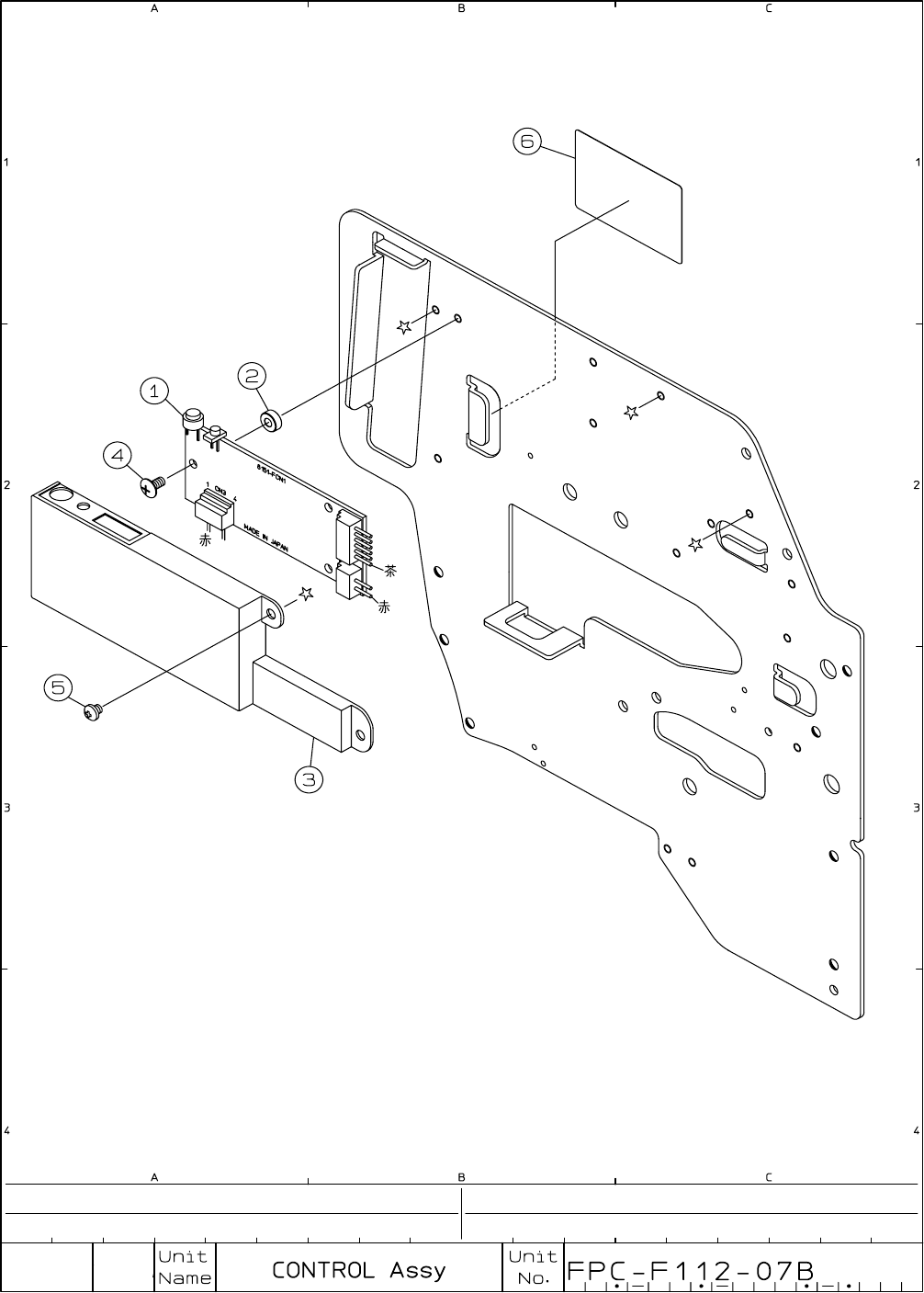

No. Code No. Parts Name Q'ty Parts No.
1
LG4-M4AA1-000
CONTROL BOARD 1
FTA-A12-8151-FCN1
2
LG4-M1A6R-000
CONTROL BOARD COLLAR 3
FTA-A08-8152
3
LG4-M1A6S-001 CONTROL BOARD COVER
1
FTA-A08-8153-B
4 K87-M55BJ-000
SCREW , TRUSS HEAD ＋
3
T3M-6-P
5
K87-M111N-000
SCREW , PAN HEAD ＋ 3
3MC-3-P
6
LG4-M4AC1-000
SERIAL NO. STICKER 1
FTA-A12-8150-SNS
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
33
4-14
4-15
