I･pulse F1 Series F1-56 (C type) P 7 No. Code No. Parts Name Q'ty Parts No. 1 LG4-M6A1A-000 MICRO SWITCH BRACKET 1 FTA-A24-8135-B 2 LG4-M8A6B-000 C.B.COVER 1 FTA-A44-8137 3 LG4-M6A6C-000 COVER 1 FTA-A24-8138-B 4 LG4…

100%1 / 1226
9C-13

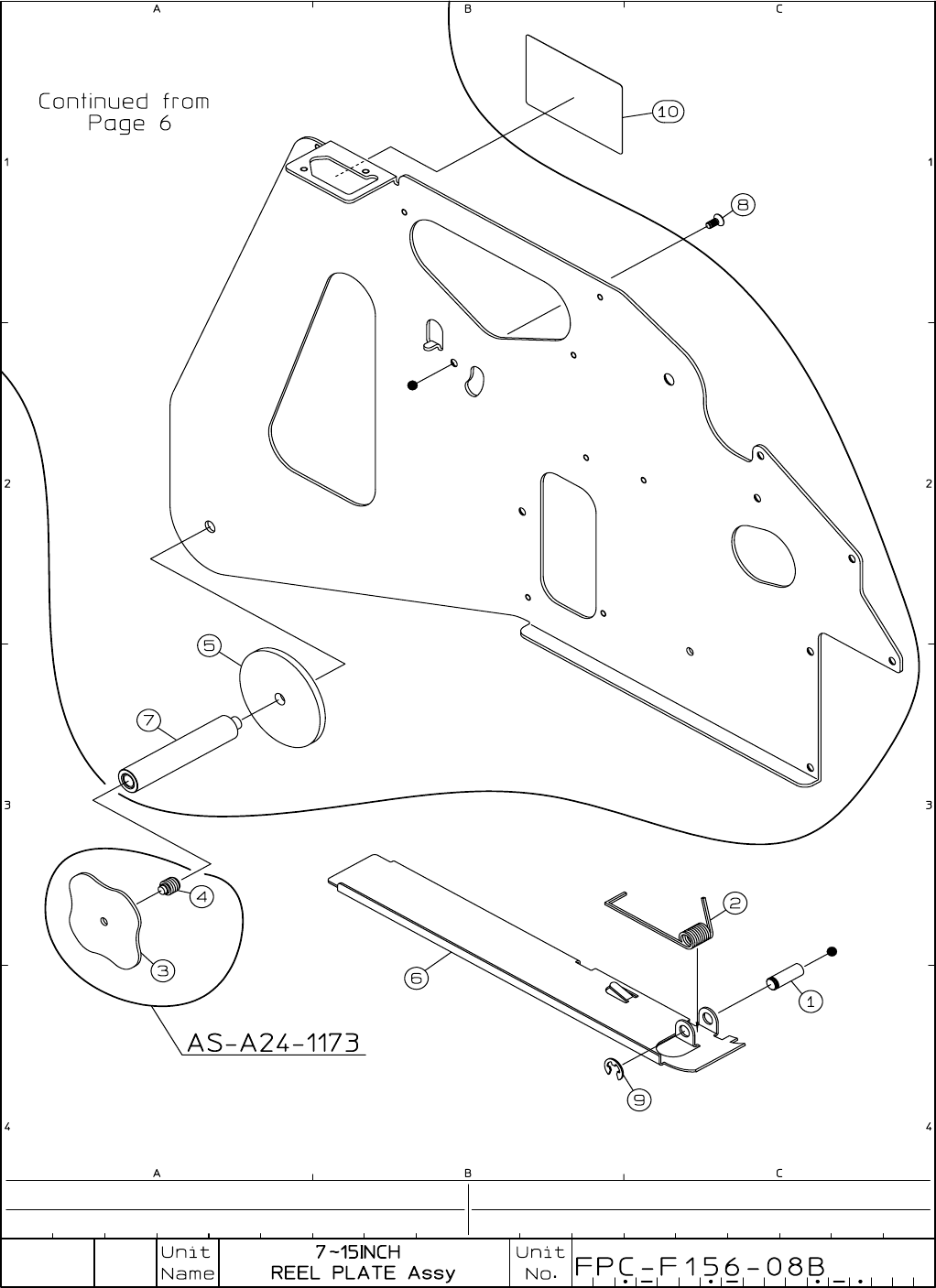

I･pulse  F1 Series
F1-56 (C type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1
LG4-M6A1A-000
MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2
LG4-M8A6B-000
C.B.COVER 1
FTA-A44-8137
3
LG4-M6A6C-000
COVER 1 FTA-A24-8138-B
4
LG4-M6A6D-000
LED,SWITCH COVER 1 FTA-A24-8139-B
LG4-M6AA1-000
CONTROL BOARD 1
FTA-A24-8153-FCN1
※1
LG4-M6AA1-001
CONTROL BOARD 1 FTA-A24-8153-FCN1
6
LG4-M6AA2-000
CONTROL BOARD 1 FTA-A24-8154
7
LG4-M6AA4-000 VALVE HARNESS ASSY
1 FTA-A24-8155
8
LG4-M6AA3-000 MICRO SWITCH ASSY
1 FTA-A24-8156
9 K87-M534F-000
SCREW,TRUSS HEAD+
1
T3M-4-P
10 K87-M23BL-000
SCREW,TRUSS HEAD+
2
T3M-5-P
11
K87-M111N-000
SCREW,PAN HEAD+ 6 3MC-3-P
12 K87-M53BS-000 SCREW,PAN HEAD+ 2 3MC-4-P
13
LG4-M1ADC-000
SCREW,PAN HEAD+ 3
3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3MV (3V-0.5-8-P)
16
LG4-M7AC2-000
SET UP STICKER 1 FTA-A32-8137-SPS
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
※1．．．F1-56-000087B∼
5
9C-14
9C-15
