8-7

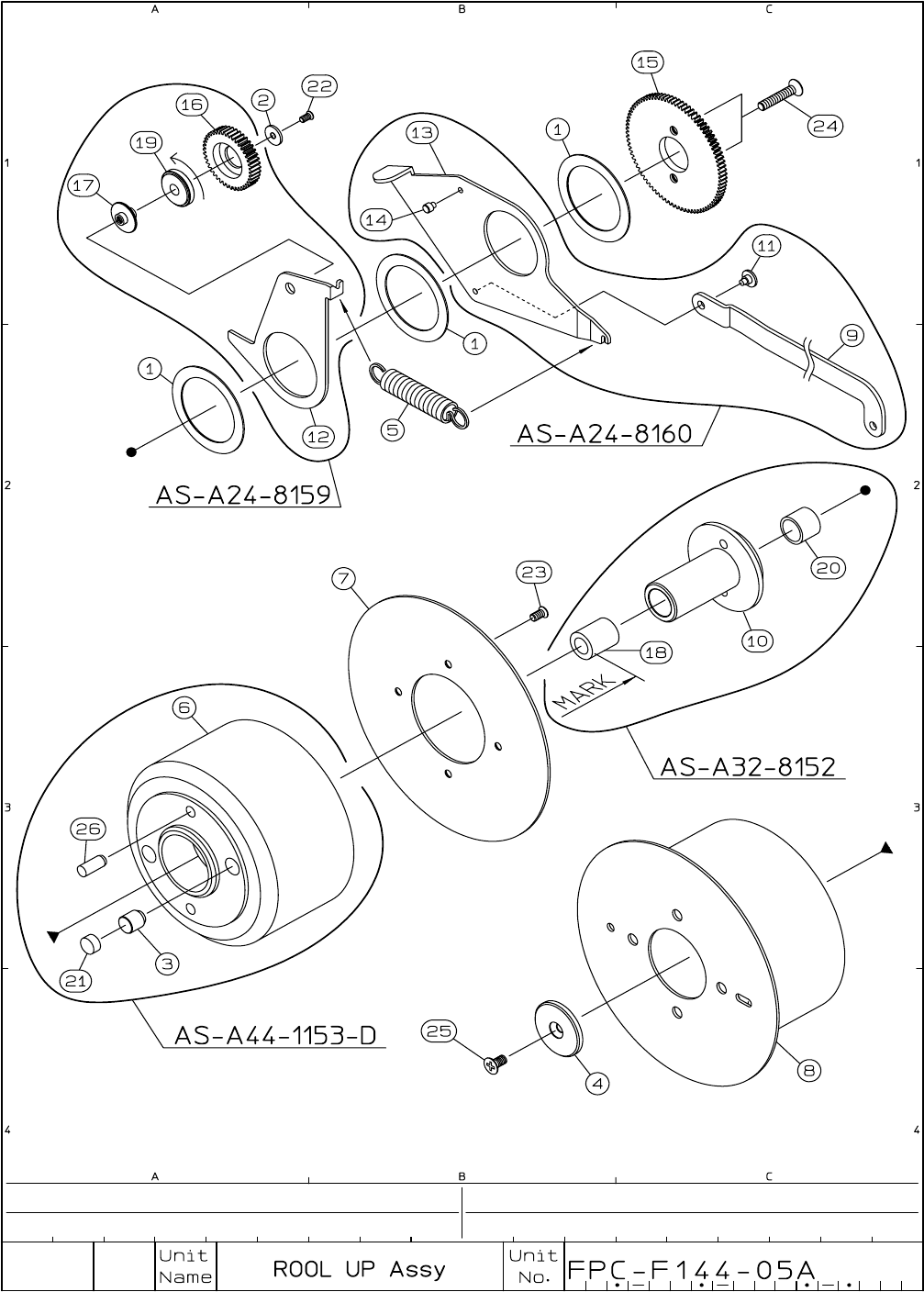

I･pulse F1 Series
F1 - 44 (A type) 44mm
No. Code No. Parts Name Q'ty Parts No.
LG4-M8A40-000
TAPE GUIDE PLATE ASSY 1 AS-A44-8119-B
1
LG4-M7A46-000
LOCK LEVER 1
FTA-A32-8127
2
LG4-M1A48-000
TAPE GUIDE PUSH SPRIN
G
1
FTA-A08-8127-500
3
LG4-M1A4K-000
T.G.A. GUIDE PIN 1
FTA-A08-8129
4
LG4-M7A43-000
SHUTTER PIECE 1
FTA-A32-8120-1
5 KW1-M4548-000 RIVET 2
FTA-A24-1120-2
6 KW1-M4549-000 SHUTTER GUIDE 1
FTA-A24-1120-3
7 KW1-M4544-000 SHUTTER GUIDE PIN 2
FTA-A24-1122-B
8
LG4-M8A41-000
TAPE GUIDE PLATE 1
FTA-A44-8119-B
9
LG4-M8A42-000
SHUTTER PLATE 1
FTA-A44-8120
10
LG4-M6A49-000
COVER PLATE 1
FTA-A24-8123
11
LG4-M6A4L-000
TAPE GUIDE AXIS PIN 2
FTA-A24-8124
12
LG4-M6A47-000
T.G. GUIDE PIN 1
FTA-A24-8125
13 K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
14 K87-M1548-000 PLANE WASHER 2 2MV(2V-0.4-6-P)
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
8-8
8-9
