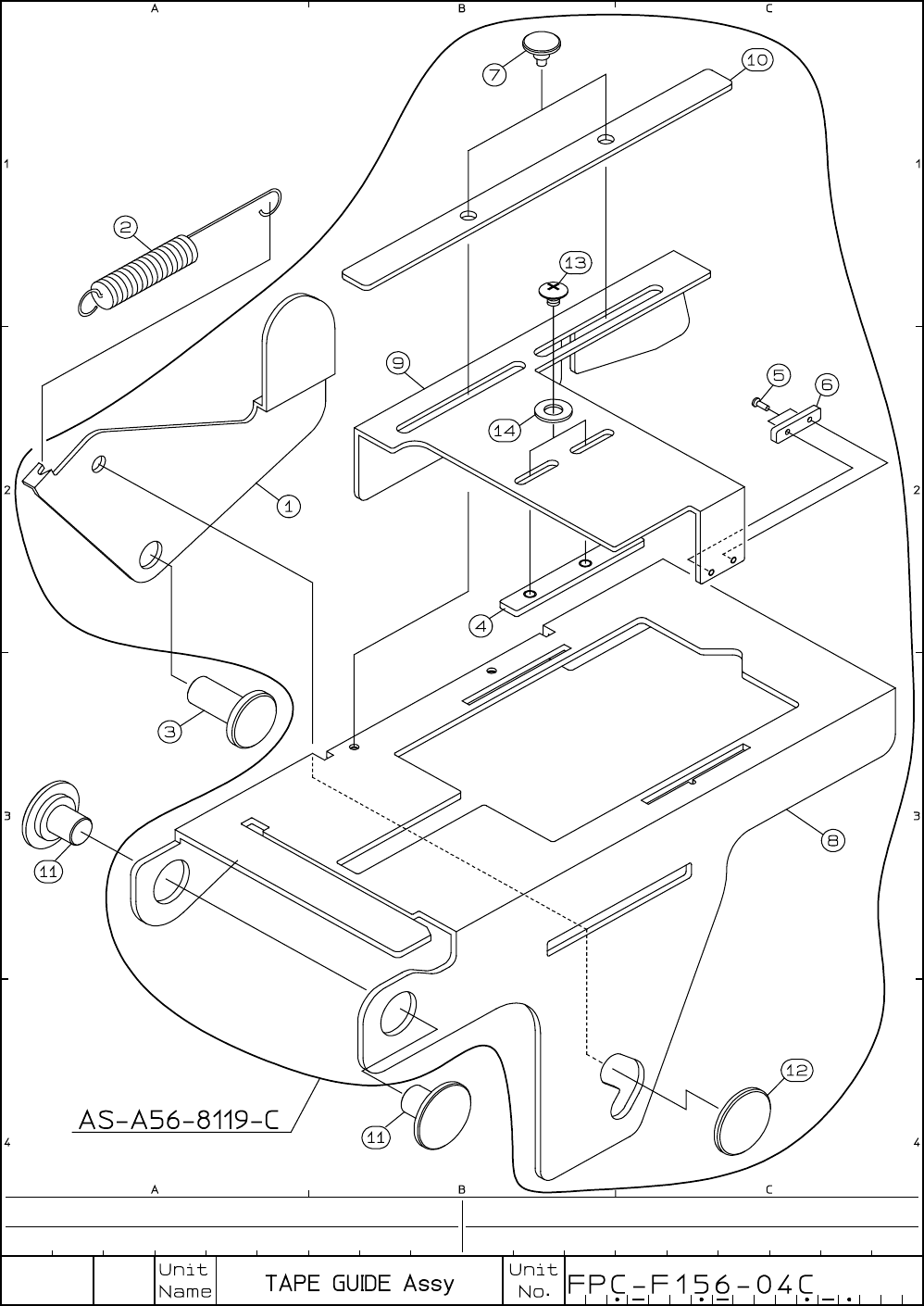

I･pulse F1 Series F1-56(B type) P 3 No. Code No. Parts Name Q'ty Parts No. LG4-M6A30-000 HOLD LEVER ASSY 1 AS-A24-8190-B LG4-M9A3A-001 CLAMP LEVER ASSY 1 AS3-A24-8191-B 1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325 2 LG4-…
9B-5
I･pulse F1 Series
F1-56(B type)
P 3
No. Code No. Parts Name Q'ty Parts No.
LG4-M6A30-000
HOLD LEVER ASSY 1 AS-A24-8190-B
LG4-M9A3A-001
CLAMP LEVER ASSY 1 AS3-A24-8191-B
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1K-000
LEVER AXIS PIN 1
FTA-A08-8130-B
3
LG4-M1A3A-000 HINGE PIN 1
1
FTA-A08-8191-1
4
LG4-M1A3B-000 HINGE PIN 2
1
FTA-A08-8192-1
5
LG4-M1A36-000 ARM
1
FTA-A08-8193
6
LG4-M1A33-000 LINK PLATE
1
FTA-A08-8194
7
LG4-M1A3L-000 CLANK ARM AXIS PIN
1
FTA-A08-8195
8
LG4-M1A37-000 ADJUST CLAMP PIN
1
FTA-A08-8196
9
LG4-M1A3K-001 CLAMP LEVER AXIS PIN
1 FTA-A08-8197-B
10
LG4-M6A31-000 HOLD LEVER
1 FTA-A24-8190-B
11
LG4-M6A3B-001 CLAMP LEVER
1 FTA-A24-8191-B
12
LG4-M9A3D-000
STUD 1 FTA-A56-8191
13
LG4-M6A3M-000
SCREW COIL SPRING 1
FTA-A24-8191-SCSp
14
LG4-M6A3C-000 CLANK ARM
1 FTA-A24-8192
15
LG4-M6A32-000 LINK PIN T
1
FTA-A24-8198
16
LG4-M6A39-000 LINK PIN U
1
FTA-A24-8199
17 K87-M111T-000 SCREW,SET 1 3MY-3-F
18
K87-M111R-000 SCREW,SET 2 3MY-5-F
19 K87-M21BN-000
SCREW NUT
1
3MH
20 K87-M21BM-000 SPRING LOCK WASHER 1
3MU
21
22
23
24
25
26
27
28
29
30
31
32
