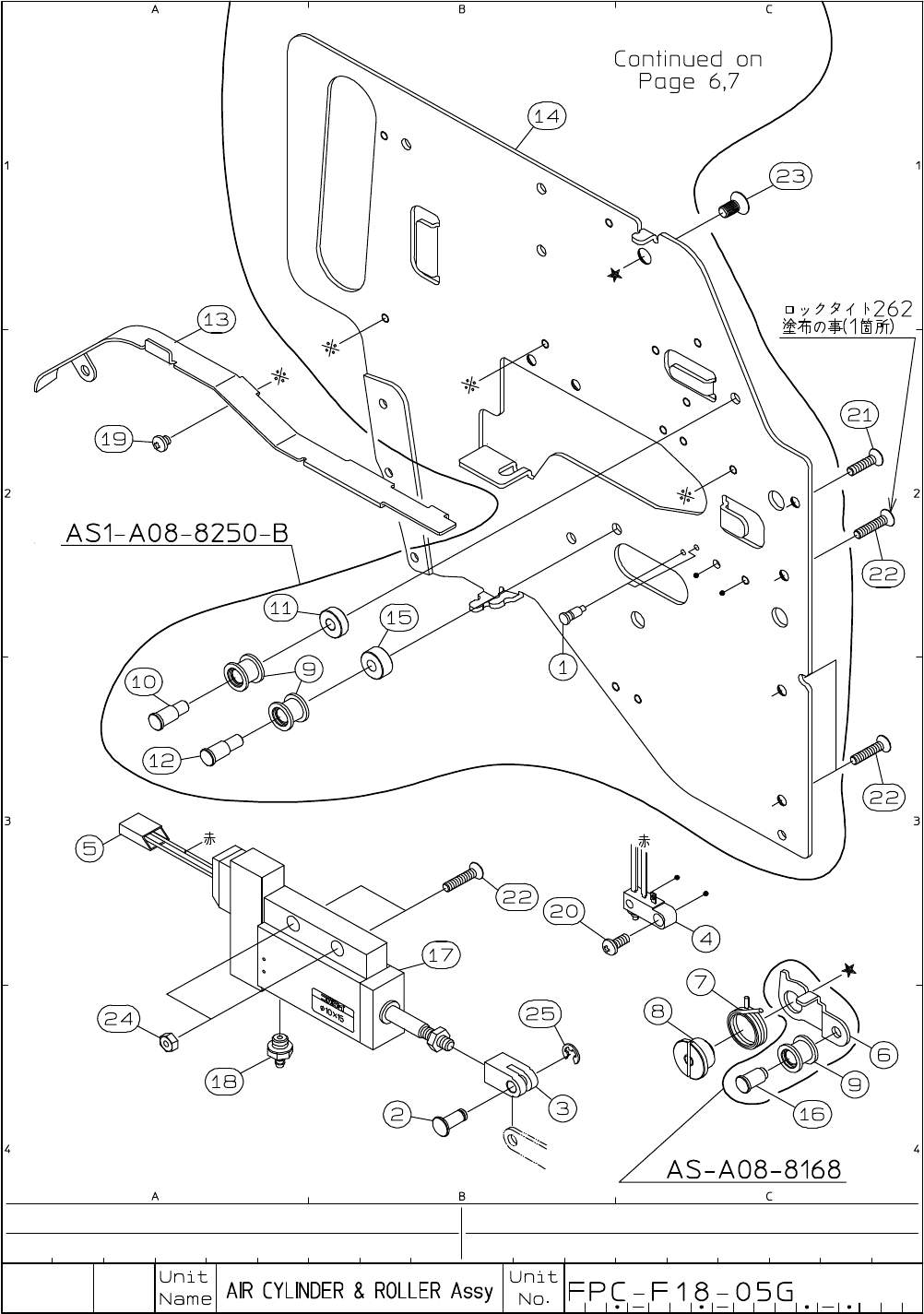

I･pulse F1 Series F1-84 (F type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M1A40-021 T.G. PLATE ASSY 1 AS1-A08-8119-E 1 LG4-M1A41-020 TAPE GUIDE PLATE 1 FTA-A08-8119-E 2 LG4-M1A42-01 1 SHUTTER PLATE 1 FTA-A08-8…
I･pulse F1 Series
F1-84 (F type)
P 4
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A40-021 T.G. PLATE ASSY 1 AS1-A08-8119-E
1 LG4-M1A41-020 TAPE GUIDE PLATE 1 FTA-A08-8119-E
2 LG4-M1A42-011 SHUTTER PLATE 1 FTA-A08-8120-E
3 LG4-M1A45-010 SHUTTER GUIDE PIN 2 FTA-A08-8121-B
4 LG4-M1A44-001 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M1A43-020 SHUTTER GUARD PLATE 1 FTA-A08-8123-E
6 LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001 T.G. PUSH SPRING 1 FTA-A08-8127-50
10 LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
