5F-1
I･pulse　 F1　Series

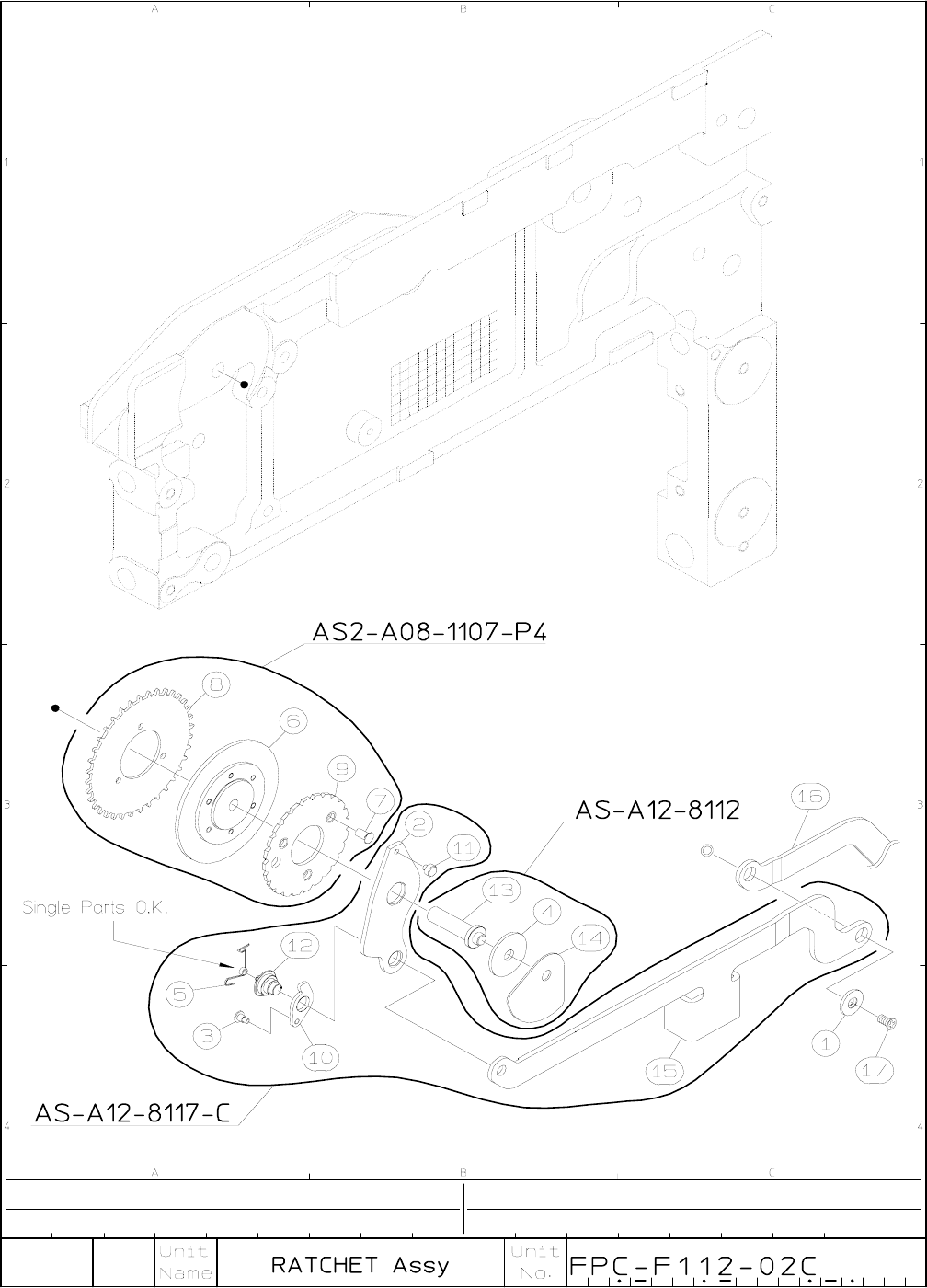

F1-16 (F type)
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M5A10-020 BODY ASSY
1
AS-A16-8101-C
※1
LG4-M4A1M-010 MAIN LEVER ASSY
1
AS3-A12-8131
1 K87-M111G-100 PUSH PIN 1
CTF-M08- 325
2
LG4-M1A1L-000 THRUST WASHER
1
CTF- 53- 38-02
3 K87-M111H-200 BACK STOPPER 1
FTA-A08-1114
4
LG4-M4A1T-000
ARM AXIS PIN 1 FTA-A12-8134
5
LG4-M5A11-020
BODY 1
FTA-A16-8101-C
6
LG4-M1A12-000
MAIN GUIDE PIN 1
FTA-A08-8102
7
LG4-M1A13-000 LOCATE PIN R
1
FTA-A08-8103-B
8
LG4-M1A14-001 LOCATE PIN F
1
FTA-A08-8104-C
9
LG4-M4A15-000
PLUG HOLDER GUIDE
1
FTA-A12-8105
10
LG4-M1A16-000 PLUG HOLDER
1
FTA-A08-8106
11
KW1-M221F-100 STOPPER PIN
1
CTF-M12- 313
12
LG4-M4A19-001 BACK STOPPER RE. SP.
1
FTA-A08-6164-1600
13
K87-M211B-000 BACK STOPPER AXIS
1
CTF-M12- 315
14
LG4-M1A1K-000 LEVER AXIS PIN
1
FTA-A08-8130-B
15
LG4-M4A1N-000 MAIN LEVER
1
FTA-A12-8131
16
LG4-M4A1P-000 ARM
1
FTA-A12-8135-B
※1 17
LG4-M4A1S-000
ARM AXIS PIN 1
FTA-A12-8139
18 K87-M1186-000
BARB CONNECTOR
1
BF3BU
19
LG4-M1AB2-000 PLUG
1
MA-MC05PM
20
LG4-M4ABA-010 AIR HOSE
1
U3B-167
21 K87-M23B3-000 SCREW,SET 3
3MY-5
22 K87-M111R-000 SCREW,SET 6
3MY-5-F
23
K87-M1115-000 CIRCULAR RIVET
1
2-10
24
LG4-M1AD2-000 CIRCLIP C
1
STW-7
25
26
27
28
29
30
31
32
※1．．．F1-16-3745F～
