5H- 13
I･pulse F1 Series
F1-16 (H type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M5A81-010 D.ROLLER ALL ASSY 1 AS5-A16-1170-B
LG4-M5A82-010 INDEKING LEVER ASSY 1 AS4-A12-8164-C
KW1-M329F-000 DRIVE ROLLER ASSY 1 AS-A16-1170-B
KW1-M329L-000 IDLER ROLLER ASSY 1 AS-A16-1162-B
1 K87-M111C-000 PLANE WASHER 1 CTF-A08- 16-B
2 K87-M117B-000 PLANE WASHER 1 CTF-M08- 76-B
3 LG4-M5A85-000 LEVER METAL 1 FTA-A16-8158
4 KW1-M229R-000 COLLAR 1 FTA-A12-1161
5 KW1-M329M-000 IDLE ROLLER 1 FTA-A16-1162-B
6 KW1-M329G-000 DRIVE ROLLER 1 FTA-A16-1170-B
7 KW1-M119H-000 COVER PLATE 1 FTA-A08-1171-B
8 KW1-M32A3-001 LOWER GUIDE PLATE,L 1 FTA-A16-1179ｰB
9 LG4-M5A62-000 METAL SHAFT 1 FTA-A16-8155
10 LG4-M4A63-000 LEVER AXIS PIN 1 FTA-A12-8159
11 LG4-M4A64-000 COLLAR 1 FTA-A12-8159-1
12 LG4-M4A65-000 TENSION LEVER 1 FTA-A12-8160
13 LG4-M4A8B-000
TENSION LEV. RE. SP.
1 FTA-A12-8160-700
14 KW1-M326G-000 ROLLER AXIS 1 FTA-A16-1163
15 LG4-M4A83-001 INDEKING LEVER 1 FTA-A12-8164-C
16 LG4-M4A8A-010
INDEKING LEV. RE. SP.
1 FTA-A12-8164-310B
17 LG4-M4A84-010 ARM STUD 1 FTA-A12-8166-B
18 LG4-M5A6M-000 MIDDLE GUIDE PLATE T 1 FTA-A16-8176-1B
19 LG4-M5A6P-011 LOWER GUIDE PLATE,R 1 FTA-A16-8178-D
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
21 KW1-M229E-000 ONE･WAY CLUTCH 1 OWC8-16-5.5-L
22 K87-M11BF-000 SCREW,FLAT HEAD+ 1 P2MK-4-IB
23 K87-M11BB-000 SCREW,FLAT HEAD+ 1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
26 K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
27 LG4-M1A85-000 ROLLER 1 FTA-A08-8167
28
29
30
5H-12
5H-13
I･pulse F1 Series
F1-16 (H type)
P 7

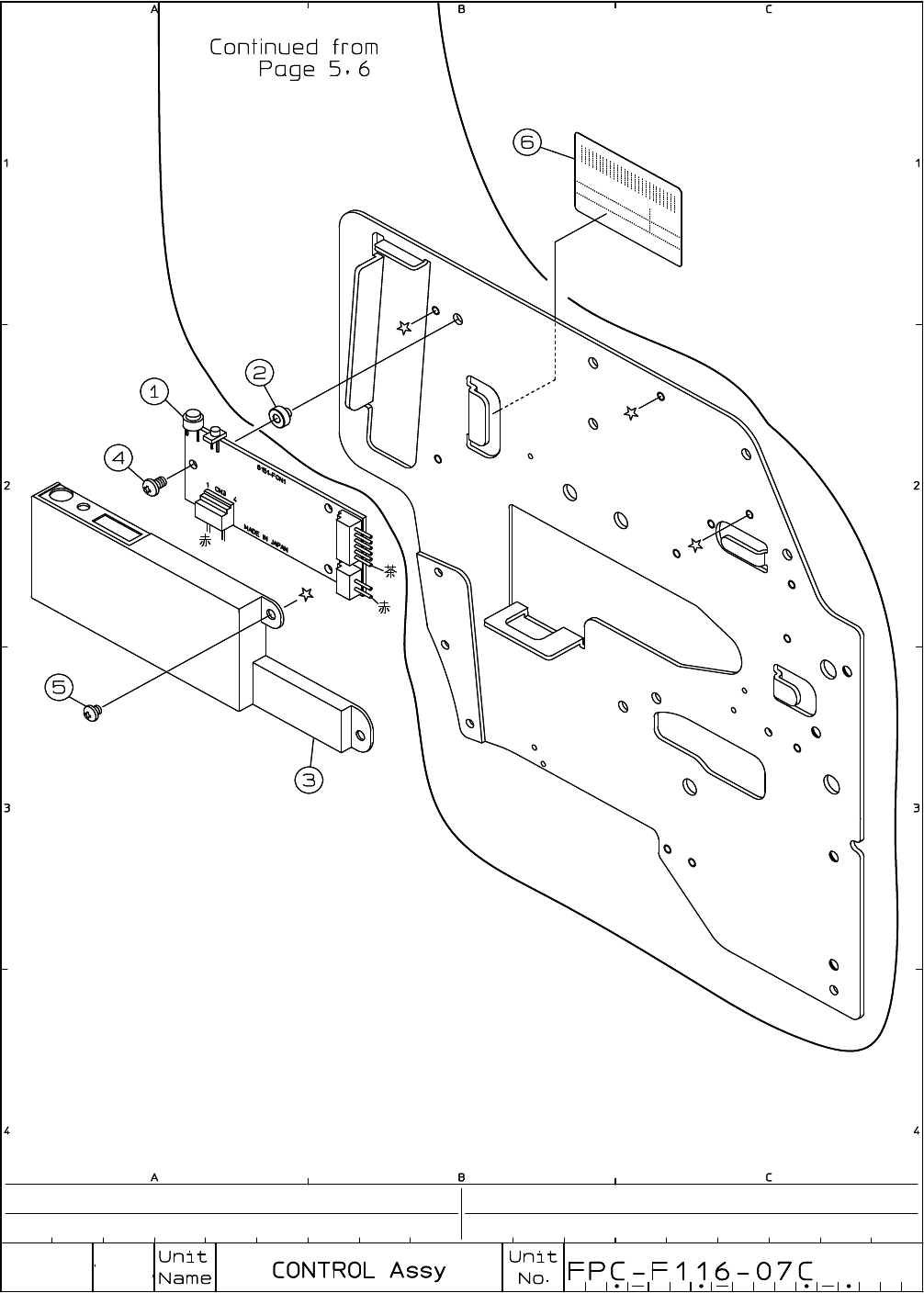

No. Code No. Parts Name Q'ty Parts No.
1 LG4-M4AA1-002 CONTROL BOARD 1
FTA-A12-8151-FCB
2 LG4-M1A6R-010 CONTROL BOARD COLLAR 3 FTA-A08-8152-B
3 LG4-M1A6S-001 CONTROL BOARD COVER 1 FTA-A08-8153ｰB
4 K87-M111W-000 SCREW,PAN HEAD+ 3 3MC-5-P
5 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
6 LG4-M5AC1-000 SERIAL NO. STICKER 1 FTA-A16-8150-SNS
