1D-13
I･pulse F1 Series
F1-82-0603(D type)
P 6
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A81-000 D.ROLLER ALL ASSY 1 AS3-A08-1170-D
LG4-M1A81-001 D.ROLLER ALL ASSY 1 AS5-A08-1170-D
LG4-M1A81-002 D.ROLLER ALL ASSY 1 AS6-A08-1170-D
LG4-M1A82-000
INDEKING LEVER ASSY
1 AS -A08-8164
LG4-M1A82-001
INDEKING LEVER ASSY
1 AS1-A08-8164
LG4-M1A82-002
INDEKING LEVER ASSY
1 AS2-A08-8164
KW1-M119F-000
DRIVE ROLLER ASSY
1 AS -A08-1170-D
KW1-M119L-000
IDLER ROLLER ASSY
1 AS -A08-1162-D
1 K87-M111C-000
PLANE WASHER
1 CTF-A08- 16-B
2 K87-M117B-000
PLANE WASHER
1 CTF-M08- 76-B
3 KW1-M119D-000
LEVER METAL
1 FTA-A08-1158-C
4 KW1-M119R-000
COLLAR
1 FTA-A08-1161
5 KW1-M119M-000
IDLE ROLLER
1 FTA-A08-1162-D
6 KW1-M119G-000
DRIVE ROLLER
1 FTA-A08-1170-D
7 KW1-M119H-000
COVER PLATE
1 FTA-A08-1171-B
8 KW1-M11A3-001
LOWER GUIDE PLATE , L
1 FTA-A08-1179-C
9 LG4-M1A62-000
METAL SHAFT
1 FTA-A08-8155
10 LG4-M1A63-000
LEVER AXIS PIN
1 FTA-A08-8159
11 LG4-M1A64-000
COLLAR
1 FTA-A08-8159-1
12 LG4-M1A65-010
TENSION LEVER
1 FTA-A08-8160-B
13 LG4-M4A8B-000
TENSION LEV. RE. SP.
1 FTA-A12-8160-700
14 LG4-M1A66-000
ROLLER AXIS
1 FTA-A08-8163
15 LG4-M1A83-000
INDEKING LEVER
1 FTA-A08-8164
16 LG4-M1A8A-000
INDEKING LEV.RE. SP.
1 FTA-A08-8164-440
LG4-M1A84-000
ARM STUD
1 FTA-A08-8166
LG4-M1A84-010
ARM STUD
1 FTA-A08-8166-B
18 LG4-M1A6M-000
MIDDLE GUIDE PLATE T
1 FTA-A08-8166-B
LG4-M1A6P-010
LOWER GUIDE PLATE,R
1 FTA-A08-8178-B
LG4-M1A6P-011
LOWER GUIDE PLATE,R
1 FTA-A08-8178-C
20 KW1-M119B-000 ONE･WAY CLUTCH 1 OWC4-13-3.1-L
KW1-M119E-000 ONE･WAY CLUTCH 1 OWC6-16-3.5-L
KW1-M119E-001 ONE･WAY CLUTCH 1 OWC6-16-3.5-176
22 K87-M11BF-000
SCREW,FLAT HEAD
1 P2MK-4-IB
23 K87-M11BB-000
SCREW,FLAT HEAD
1 P2.6MK-5-IB
24 K87-M21BB-000 SCREW,TRUSS HEAD+ 1 T2.6M-5-P
25 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
26
K87-M11BE-000 THRUST WASHER 4 3V-0.5-8-P
17
21
19
1D-12
1D-13
I･pulse F1 Series
F1-82-0603 (D type)
P 7
No. Code No. Parts Name Q'ty Parts No.

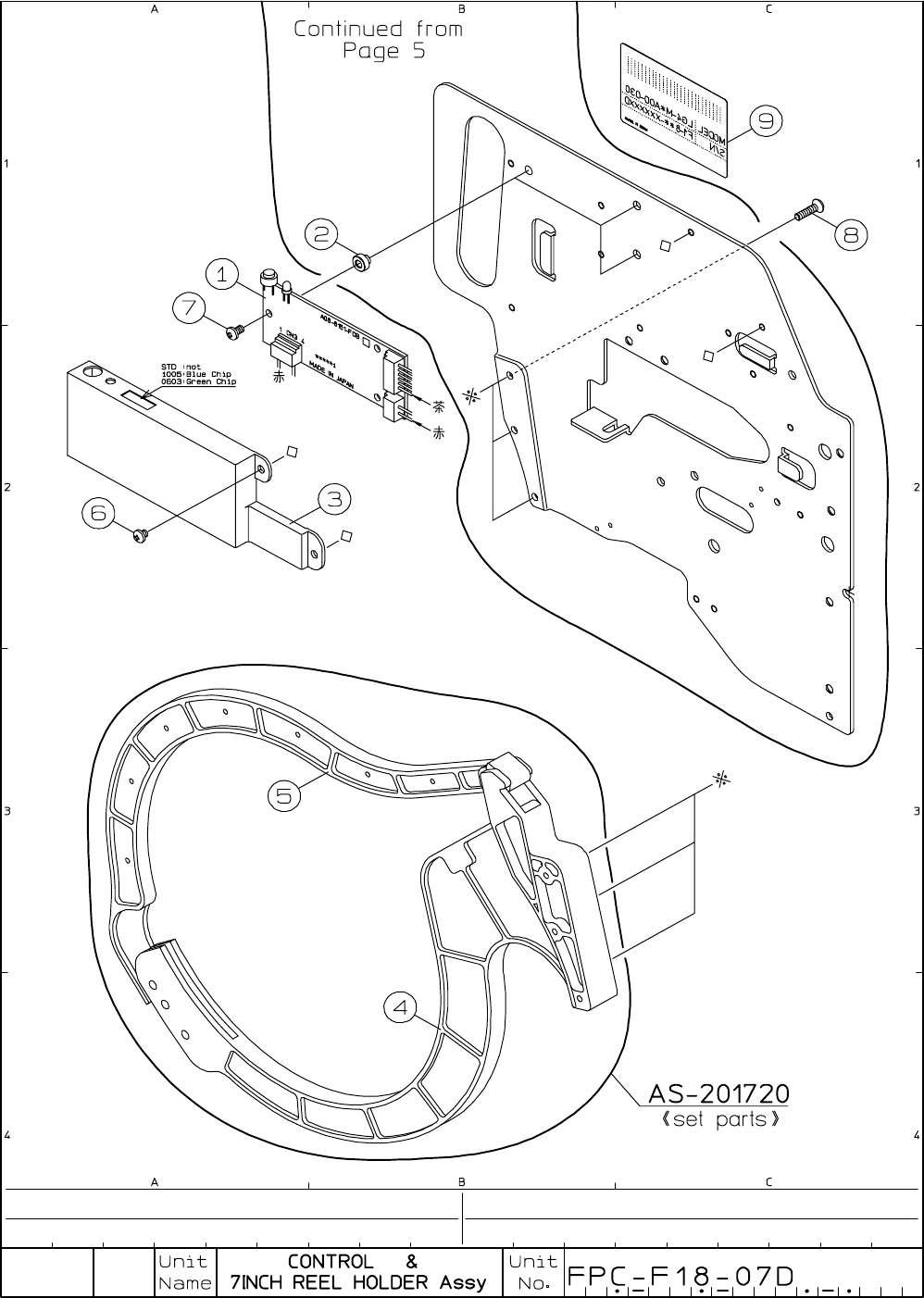

LG4-M1A90-000 REEL HOLDER ASSY 1 AS -201720
※1 1 LG4-M1AA1-002 CONTROL BOARD 1 FTA-A08-8151-FCB
2 LG4-M1A6R-010 CONTROL BOARD COLLA
R
3 FTA-A08-8152-B
3 LG4-M3A6S-000
CONTROL BOARD COVER
1 FTA-A08-8153-B63
4 LG4-M1A91-000 REEL HOLDER 1 201720
5 LG4-M1A92-000 CLAMP ARM 1 201721
6 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
7 K87-M111W-000 SCREW,PAN HEAD+ 3 3MC-5-P
8 LG4-M1ADF-000 SCREW,BAIND HEAD+ 3 3M-10-P-P-Bi
9 LG4-M1AC1-000 SERIAL NO. STICKER 1 FTA-A08-8150-SNS
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1 F1-82-0603-000481D∼
