I･pulse F1 Series F1-16 (H type) P 4 No. Code No. Parts Name Q'ty Parts No. LG4-M5A40-010 T.G. PLATE ASSY 1 AS-A16-8119-D LG4-M5A40-011 T.G. PLATE ASSY 1 AS-A16-8119-E LG4-M5A41-010 TAPE GUIDE PLATE 1 FTA-A16-8119-D…
I･pulse F1 Series
F1-16 (H type)
P 4
No. Code No. Parts Name Q'ty Parts No.

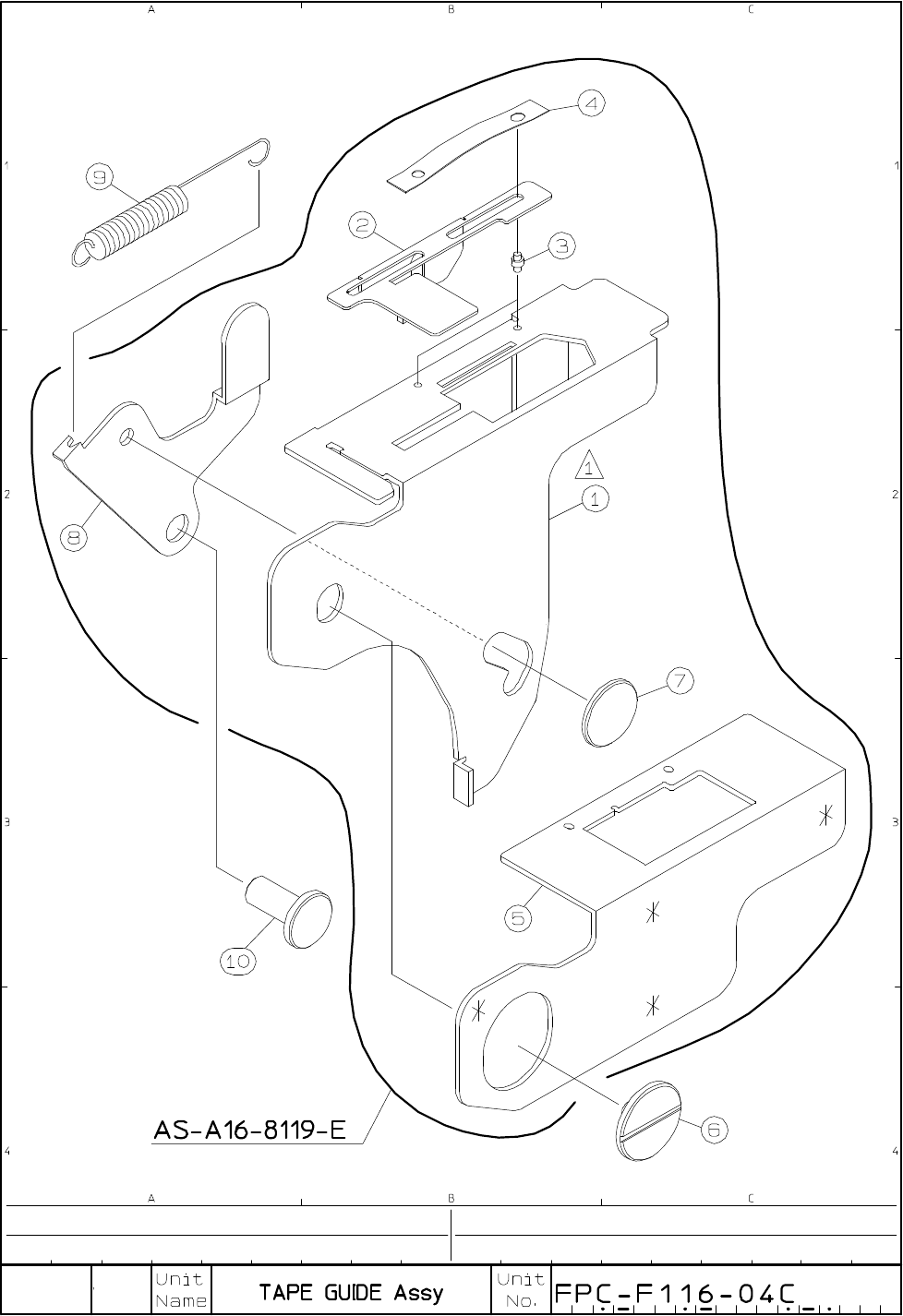

LG4-M5A40-010 T.G. PLATE ASSY 1 AS-A16-8119-D
LG4-M5A40-011 T.G. PLATE ASSY 1 AS-A16-8119-E
LG4-M5A41-010 TAPE GUIDE PLATE 1 FTA-A16-8119-D
LG4-M5A41-011 TAPE GUIDE PLATE 1 FTA-A16-8119-E
2 LG4-M5A42-010 SHUTTER PLATE 1 FTA-A16-8120-D
3 LG4-M1A45-000 SHUTTER GUIDE PIN 2 FTA-A08-8121
4 LG4-M1A44-000 SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M5A43-010 SHUTTER GUARD PLATE 1 FTA-A16-8123-C
6 LG4-M1A4L-000 T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000 T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000 LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001 T.G. PUSH SPRING 1 FTA-A08-8127-50
10 LG4-M1A4K-000 T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1…F1-16-005785H～
