I･pulse F1 Series F1-44 (D type) P 4 No. Code No. Parts Name Q'ty Parts No. ※1 LG4-M8A40-010 TAPE GUIDE UNIT 1 AS-A44-8119-D LG4-M8A4A-000 TAPE GUIDE ASSY 1 AS1-A44-8119-D 1 LG4-M7A46-001 LOCK LEVER 1 FTA-A32-8127-B…
8D-7
I･pulse F1 Series
F1-44 (D type)
P 4
No. Code No. Parts Name Q'ty Parts No.
※1
LG4-M8A40-010

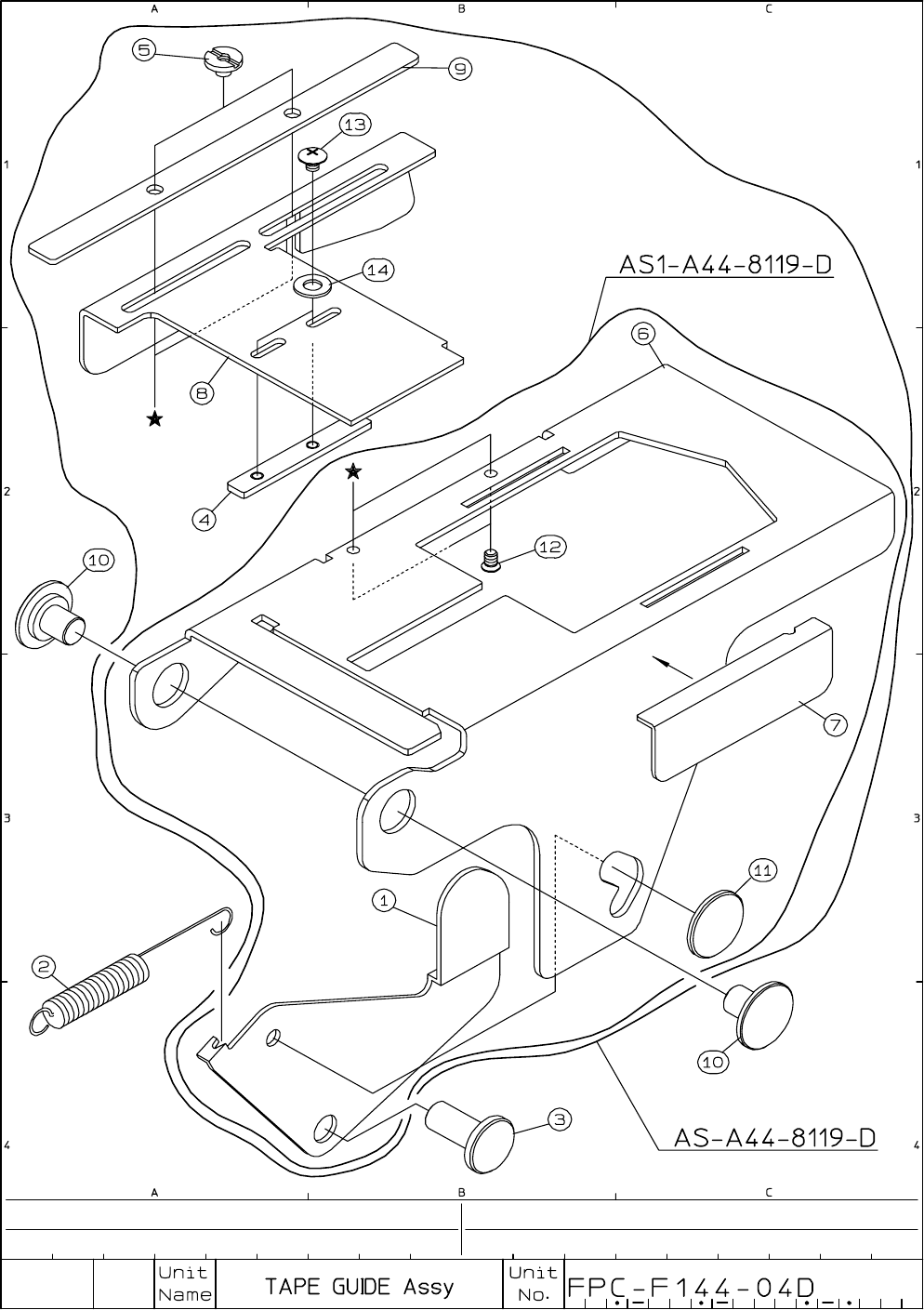

TAPE GUIDE UNIT 1 AS-A44-8119-D
LG4-M8A4A-000
TAPE GUIDE ASSY 1 AS1-A44-8119-D
1 LG4-M7A46-001 LOCK LEVER
1
FTA-A32-8127-B
2
LG4-M6A48-000 T.G. PUSH SPRING
1
FTA-A24-8127-73
3 LG4-M1A4K-000 T.G.A. GUIDE PIN
1
FTA-A08-8129
4
LG4-M7A43-000 SHUTTER PIECE
1
FTA-A32-8120-1
5
KW1-M4544-010
SHUTTER GUIDE PIN
2
FTA-A24-1121-B
6
LG4-M8A41-010
TAPE GUIDE PLATE 1
FTA-A44-8119-D
7 LG4-M6A4F-000 SIDE COVER
1
FTA-A24-8125-1
8
LG4-M8A42-010
SHUTTER PLATE 1
FTA-A44-8120-C
9 LG4-M6A49-001 COVER PLATE
1
FTA-A24-8123-B
10
LG4-M6A4L-000 TAPE GUIDE AXIS PIN
2
FTA-A24-8124
11 LG4-M6A47-000 T.G.GUIDE PIN
1
FTA-A24-8125
12 K87-M111P-000 SCREW,FLAT HEAD+ 2 P2MK-3
13
K87-M1547-000 SCREW,TRUSS HEAD 2 T2M-2.5-P
14 K87-M1548-000 PLANE WASHER 2 2MV(2V-0.4-6-P)
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
※1．．．F1-44-361D～
