3D-7
I･pulse F1 Series
F1-84 (D type)
P 3
No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M1A30-012 HOLD LEVER ASSY 1 AS3-A08-8190-B
1 K87-M111G-100 PUSH PIN 1 CTF-M08- 325
2 LG4-M1A17-000 STOPPER PIN 1 FTA-A08-8113
3 LG4-M1A1K-000 LEVER AXIS PIN 1 FTA-A08-8130-B
4 LG4-M1A1A-001 COVER PLATE 1 FTA-A08-8149-C
※1 5 LG4-M1AA2-001 SP . CONNECTOR ASSY 1 FTA-A08-8151-5B
6 LG4-M1A31-000 HOLD LEVER M 1 FTA-A08-8190-B
7 LG4-M1A32-000 HOLD LEVER S 1 FTA-A08-8190-1B
8 LG4-M1A34-001 CLAMP LEVER 1 FTA-A08-8191-C
9 LG4-M1A3M-000 SCREW COIL SPRING 1
FTA-A08-8191-SCSp
10 LG4-M1A3A-000 HINGE PIN 1 1 FTA-A08-8191-1
※2 11 LG4-M1A35-001 CLANK ARM 1 FTA-A08-8192-B
12 LG4-M1A3B-000 HINGE PIN 2 1 FTA-A08-8192-1
13 LG4-M1A36-000 ARM 1 FTA-A08-8193
14 LG4-M1A33-000 LINK PLATE 1 FTA-A08-8194
15 LG4-M1A3L-000 CLANK ARM AXIS PIN 1 FTA-A08-8195
16 LG4-M1A37-010 ADJUST CLAMP PIN 1 FTA-A08-8196
17 LG4-M1A3K-001 CLAMP LEVER AXIS PIN 1 FTA-A08-8197-B
18 LG4-M1A38-000 LINK PIN T 1 FTA-A08-8198
19 LG4-M1A39-000 LINK PIN U 1 FTA-A08-8199
20 LG4-M1ADC-000 SCREW,PAN HEAD+ 2 3MC-7-P
21 K87-M111S-000 SCREW,FLAT HEAD+ 2 3MK-6-P
22 K87-M111T-000 SCREW,SET 1 3MY-3-F
23 K87-M111X-000 SCREW,SET 1 3MY-4-F
24 K87-M111R-000 SCREW ,SET 2 3MY-5-F
25 K87-M111U-000 SCREW FLANGE NUT 2 3MH-FS
26 K87-M21BN-000 SCREW NUT 2 3MH-P
27 K87-M21BM-000 SPRING LOCK WASHER 1 3MU-P
28 K87-M1115-000 CIRCULAR RIVET 1 2-10
29
30
31
32
33
※1 F1-84-010838D∼
※2 F1-84-012941D∼
3D-6
3D-7
I･pulse F1 Series
F1-84(D type)
P 4
No. Code No. Parts Name Q'ty Parts No.

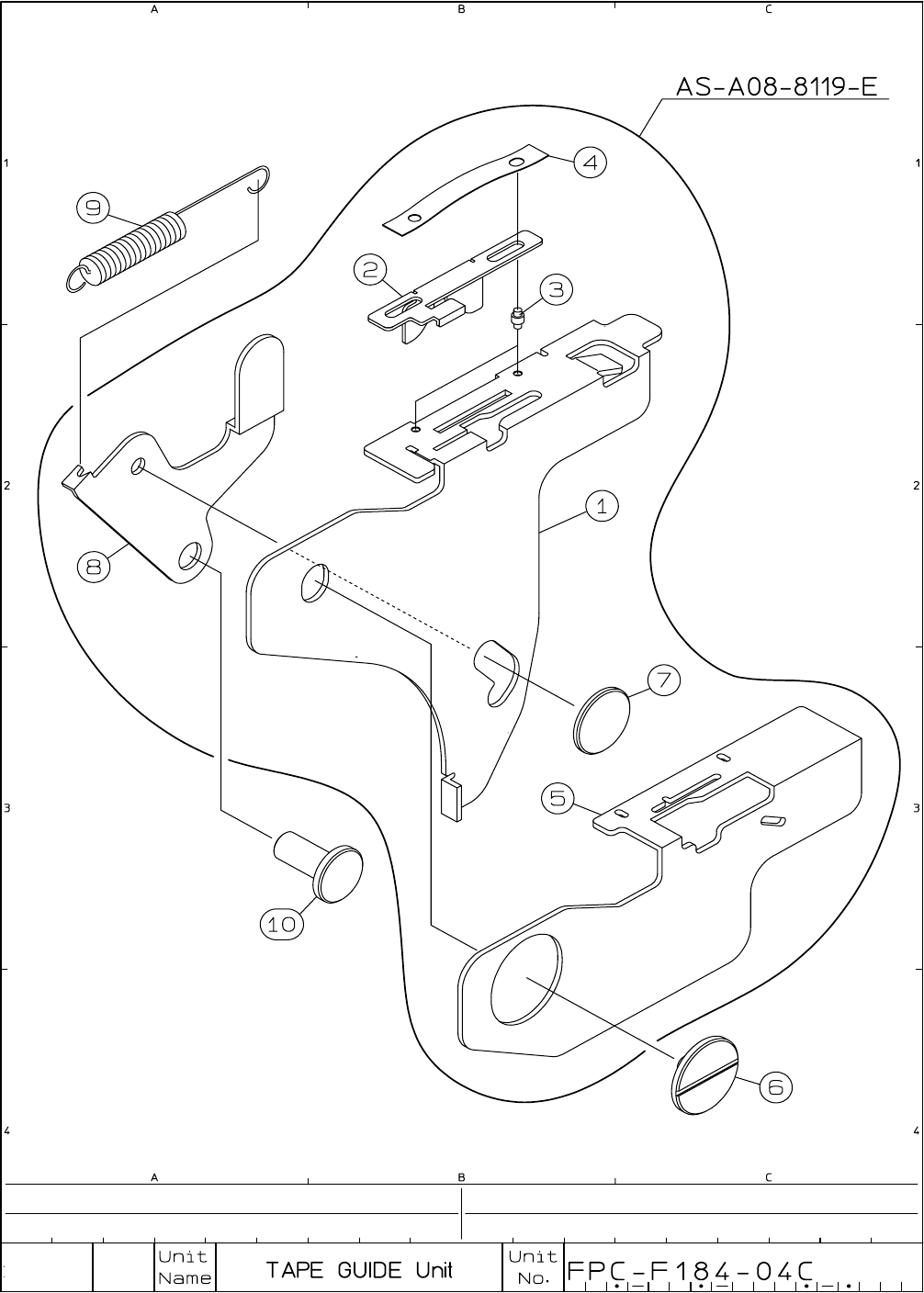

LG4-M1A40-020
T.G. PLATE ASSY 1 AS -A08-8119-E
1 LG4-M1A41-020
TAPE GUIDE PLATE 1 FTA-A08-8119-E
2
LG4-M1A42-010
SHUTTER PLATE 1 FTA-A08-8120-D
3 LG4-M1A45-010
SHUTTER GUIDE PIN 2 FTA-A08-8121-B
4
LG4-M1A44-001
SHUTTER PUSH SPRING 1 FTA-A08-8122-B
5 LG4-M1A43-020
SHUTTER GUARD PLATE 1 FTA-A08-8123-E
6 LG4-M1A4L-000
T.G. GUIDE SCREW 1 FTA-A08-8124
7 LG4-M1A47-000
T.G. GUIDE PIN 1 FTA-A08-8125
8 LG4-M1A46-000
LOCK LEVER 1 FTA-A08-8127-B
9 LG4-M1A48-001
T.G. PUSH SPRING 1 FTA-A08-8127-50
10 LG4-M1A4K-000
T.G.A. GUIDE PIN 1 FTA-A08-8129
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
