5D-13
I･pulse F1 Series
F1-16 (D type)
P 7

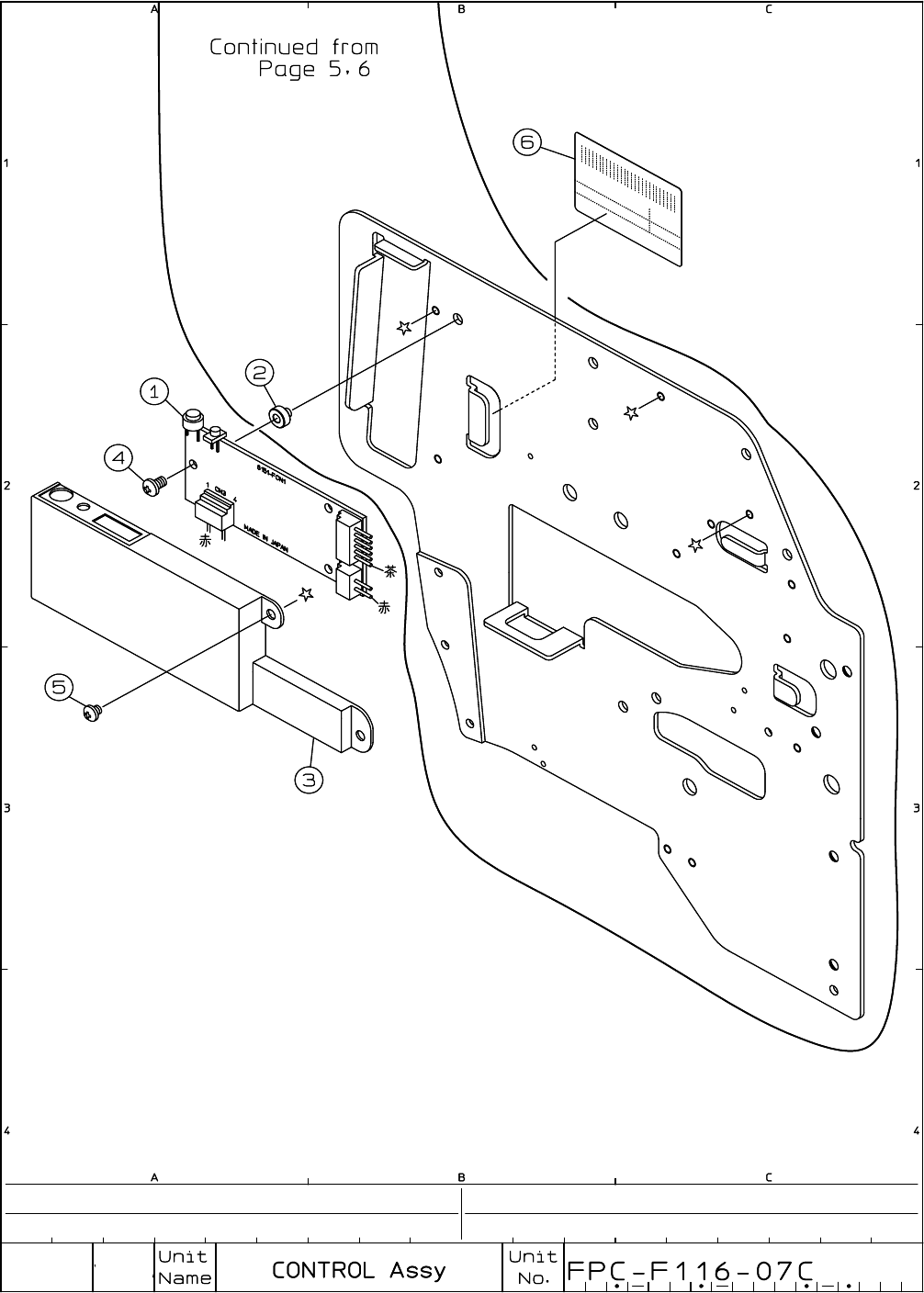

No. Code No. Parts Name Q'ty Parts No.
※1 1 LG4-M4AA1-001 CONTROL BOARD 1
FTA-A12-8151-FCN1
2 LG4-M1A6R-010 CONTROL BOARD COLLAR 3 FTA-A08-8152-B
3 LG4-M1A6S-001 CONTROL BOARD COVER 1 FTA-A08-8153ｰB
4 K87-M111W-000 SCREW,PAN HEAD+ 3 3MC-5-P
5 K87-M111N-000 SCREW,PAN HEAD+ 3 3MC-3-P
6 LG4-M5AC1-000 SERIAL NO. STICKER 1 FTA-A16-8150-SNS
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
※1…F1-16-2065D～
5D-15
