I･pulse F1 Series
F1-32 (E type)
P 7
No. Code No. Parts Name Q'ty Parts No.
1 LG4-M6A1A-000 MICRO SWITCH BRACKET 1 FTA-A24-8135-B
2 LG4-M6A6B-000 C.B.COVER 1 FTA-A24-8137-B
3 LG4-M6A6C-000 COVER 1 FTA-A24-8138-B
4 LG4-M6A6D-000 LED,SWITCH COVER 1 FTA-A24-8139-B
5 LG4-M6AA1-001 CONTROL BOARD 1
FTA-A24-8153-FCN1
6 LG4-M6AA2-000 CONTROL BOARD 1 FTA-A24-8154
7 LG4-M6AA4-000 VALVE HARNESS ASSY 1 FTA-A24-8155
8 LG4-M6AA3-000 MICRO SWITCH ASSY 1 FTA-A24-8156
9 K87-M534F-000 SCREW,TRUSS HEAD+ 1 T3M-4-P
10 K87-M23BL-000 SCREW,TRUSS HEAD+ 2 T3M-5-P
11 K87-M111N-000 SCREW,PAN HEAD+ 6 3MC-3-P
12 K87-M111W-000 SCREW,PAN HEAD+ 5 3MC-5-P
13 LG4-M1ADC-000 SCREW,PAN HEAD+ 3 3MC-7-P
14 LG4-M6ADG-000 BOLT,HEX SOCKET HEAD 2 3MX-5-P
15 K87-M11BE-000 THRUST WASHER 6 3MV (3V-0.5-8-P)
16 LG4-M7AC2-000 SET UP STICKER 1 FTA-A32-8137-SPS
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
I･pulse F1 Series
F1-32 (E type)
P 8

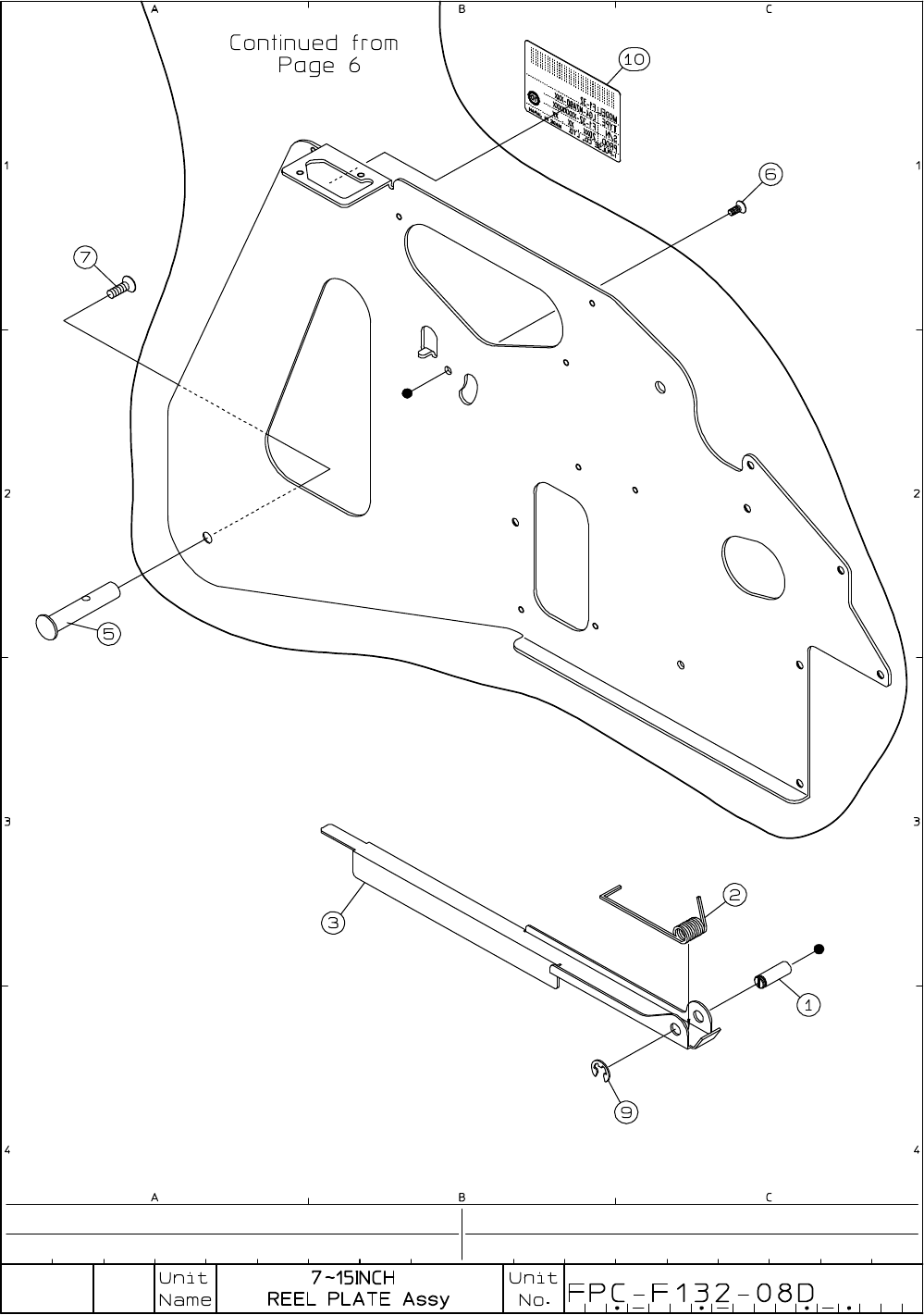

No. Code No. Parts Name Q'ty Parts No.
※1 LG4-M6A9D-000 REEL GUIDE ARM ASSY 1 AS-A24-8269-B
1 LG4-M4A92-011 REEL TENTION AXIS 1 FTA-A12-8182-C
2 LG4-M4A9B-002 COIL SPRING 1 FTA-A12-8183-D
LG4-M6A9A-101 REEL GUIDE ARM 1 FTA-A24-8269-B
LG4-M4A9A-003 TENSION LEVER 1 FTA-A12-8181-F
※1 4 LG4-M4A9C-001 GUIDE ARM 1 FTA-A12-8181-E1
5 LG4-M7A65-010 REEL AXIS 1 FTA-A32-8172-B
6 K87-M55BN-000 SCREW,FLAT HEAD+ 1 3MK-8-P
7 LG4-M4ADH-000 SCREW,FLAT HEAD+ 1 4MK-12-P
※1 8 LG4-M4AD5-000 FLAT RIVET 2 2×4-2.5-BS
9 LG4-M4AD4-000 CIRCLIP E 1 E.50
10 LG4-M7AC1-000 SERIAL NO. STICKER 1 FTA-A32-8150-SNS
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
※1…F1-32-000956E～
※1 3
