I･pulse F1 Series F1 - 84・825・823 (D type) 8mm P 1 No. Code No. Parts Name Q'ty Parts No. LG4-M1A10-020 Body Assy 1 AS -A08-8101-C LG4-M1A1M-001 Main Lever Assy 1 AS1-A08-8131 1 K87-M111D-000 Push Pin 1 CTF-M08- 25 …
2D-1
I･pulse F1 Series
F1 - 84・825・823 (D type) 8mm
P 1
No. Code No. Parts Name Q'ty Parts No.
LG4-M1A10-020
Body Assy 1 AS -A08-8101-C
LG4-M1A1M-001
Main Lever Assy 1 AS1-A08-8131
1 K87-M111D-000
Push Pin 1 CTF-M08- 25
2 K87-M111G-100
Push Pin 1 CTF-M08- 325
3 K87-M111H-200
Back Stopper 1 FTA-A08-1114
4 KW1-M114E-000
Arm Axis Pin 1 FTA-A08-1134
5 LG4-M1A11-020
Body 1 FTA-A08-8101-C
6 LG4-M1A12-000
Main Guide Pin 1 FTA-A08-8102
7
LG4-M1A13-000
Locate Pin R 1 FTA-A08-8103-B
8 LG4-M1A14-001
Locate Pin F 1 FTA-A08-8104-C
9 LG4-M1A15-000
Plug Holder Guide Ring 1 FTA-A08-8105
10 LG4-M1A16-000
Plug Holder 1 FTA-A08-8106
11 LG4-M1A17-000
Stopper Pin 1 FTA-A08-8113
12 LG4-M1A19-001
Back Stopper Return Spring 1 FTA-A12-6132-510
13 LG4-M1A18-000
Back Stopper Axis 1 FTA-A08-8115
14 LG4-M1A1K-000
Lever Axis Pin 1 FTA-A08-8130-B
15 LG4-M1A1N-000
Main Lever 1 FTA-A08-8131
16 LG4-M1A1P-000
Arm 1 FTA-A08-8135
17 LG4-M1A1R-010
Sub Arm 1 FTA-A08-8138-B
18 LG4-M1A1S-010
Sub Arm Guide Pin 1 FTA-A08-8139-B
19 K87-M1186-000
Barb Connector 1 BF3BU
20 LG4-M1AB2-000
Plug 1 MA-MC05PM
21 LG4-M1ABA-010
Air Hose 1 U3B-157
22 K87-M23B3-000
Screw , Set (クボミ先) 3 3MY-5
23 K87-M111X-000
Screw , Set 1 3MY-4-F
24 K87-M111R-000
Screw , Set 5 3MY-5-F
25 LG4-M1AD1-000
Circular Rivet 1 φ2-8
26 LG4-M1AD2-000
Circlip C 1 STW-7
27
28
29
30
31
32

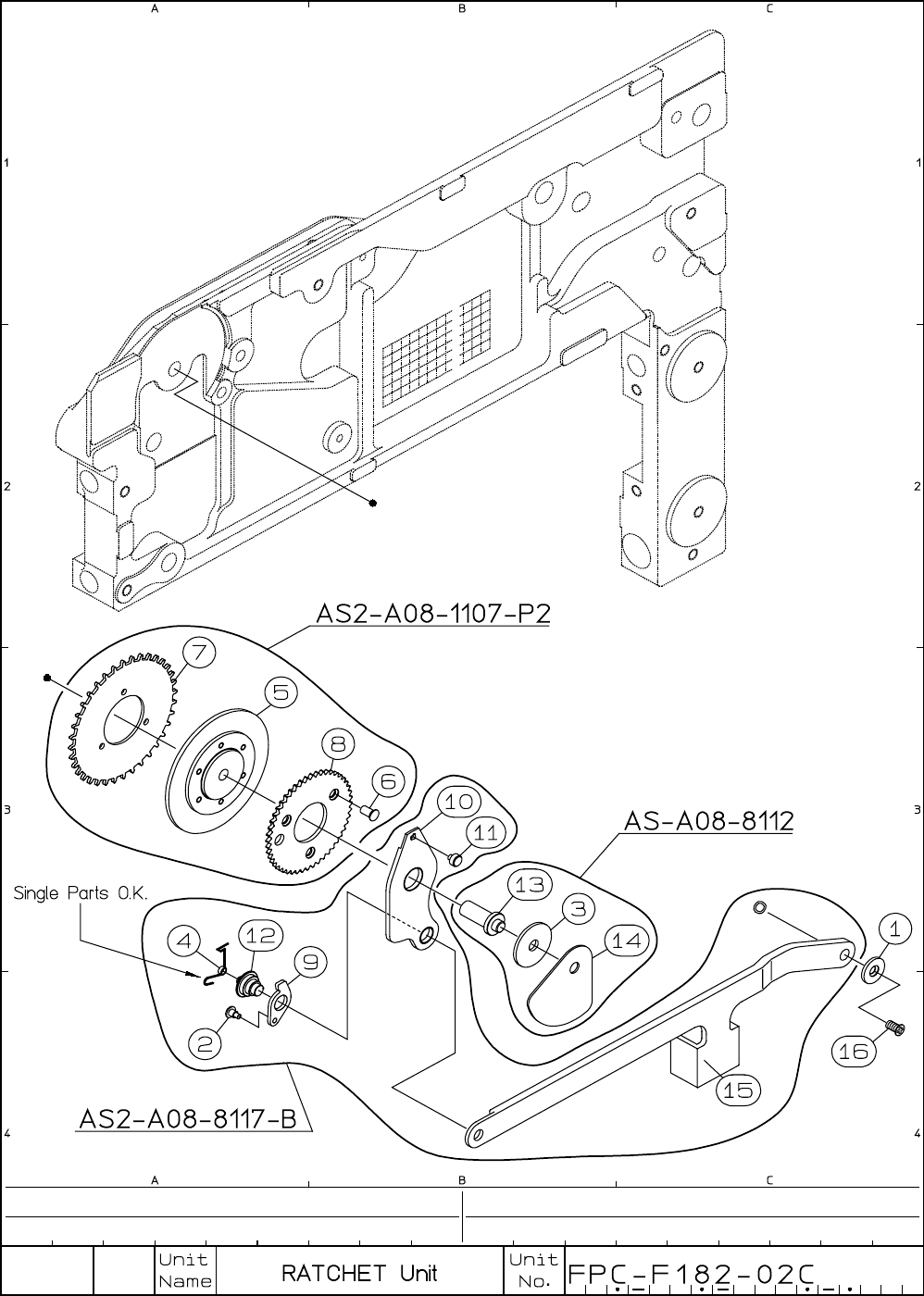

2D-2
2D-3
